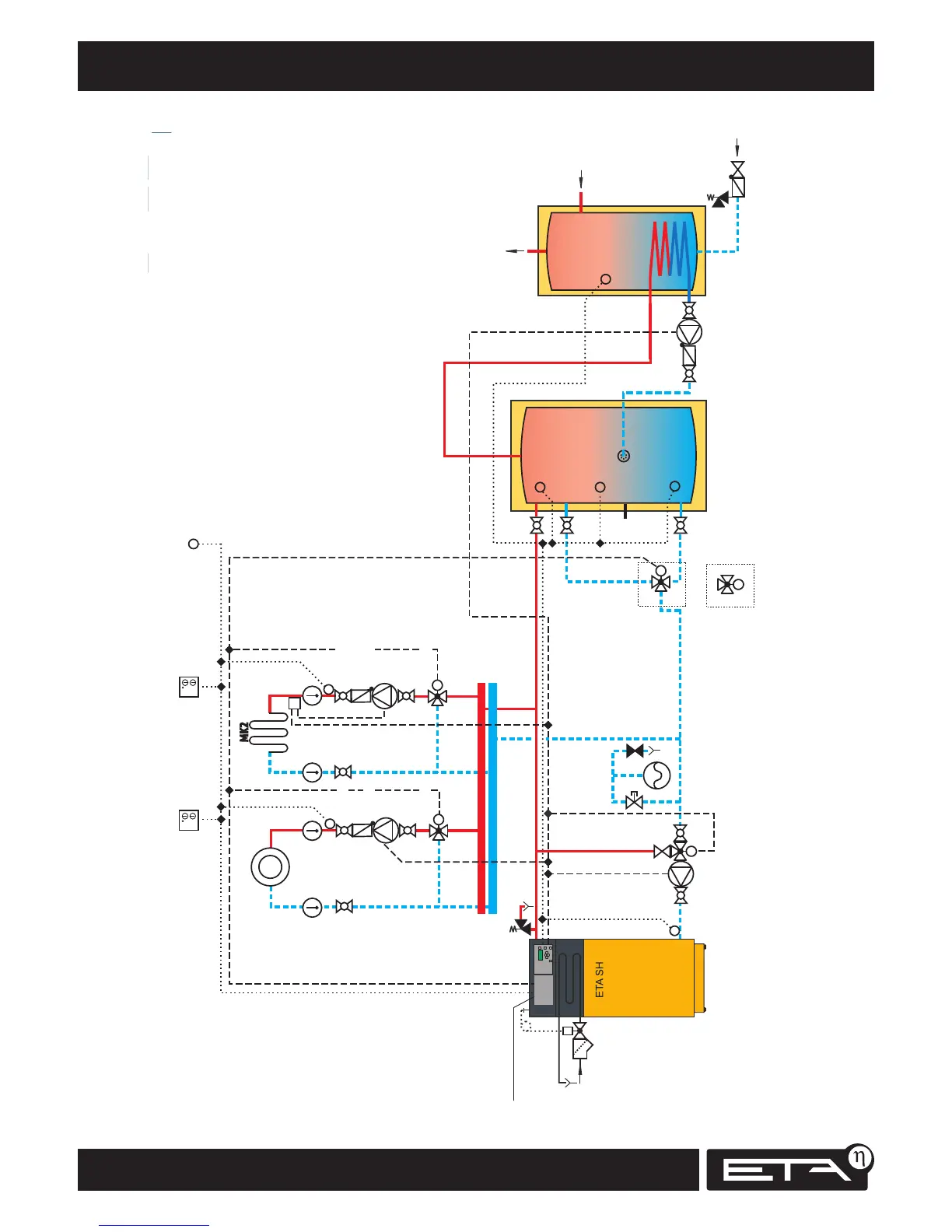

Hydraulic schematic
Datum:
25.01.2006
Rev.:
00
Kesseltyp:
ETA SH Stückholzkessel
Konfiguration:
Planungsvorschlag
Puffer + Boiler
ETA_SH_PU_BO_00
M
T buffer top
T buffer middle
Buffer pump
T buffer bottom
Outside temperatureRoom 2
T boiler
Mixing valve 2
Pump 2
T flow 2 (Pos. 7)
MK2
M
Mixing valve 1
Pump 1
T flow 1
M
MC1
T
Room 1
Return temp.
Heating temp. limiter
Buffer
Hot water tank
Return riser
Start relief
Hot water tank pump
M
A
B
AB
M
AB
B
A
3-way valve
3-way mixing valve
T
Cold water
Heating circuit control
for 2 mixing circuits
for installation in the
boiler: SH1-0
4x1² 4x1²
4x1²
3x1²
2x0,5²
3x1²
3x1²
3x1²
2x0,5²
4x0,5² 4x0,5² 2x0,5²
Cold water
2x0,5²
4x1²
2x0,5²
2x0,5²
2x0,5²
2x0,5²
19010
THW
THWC
