S583

S584

Installation Actuators

SH Montage

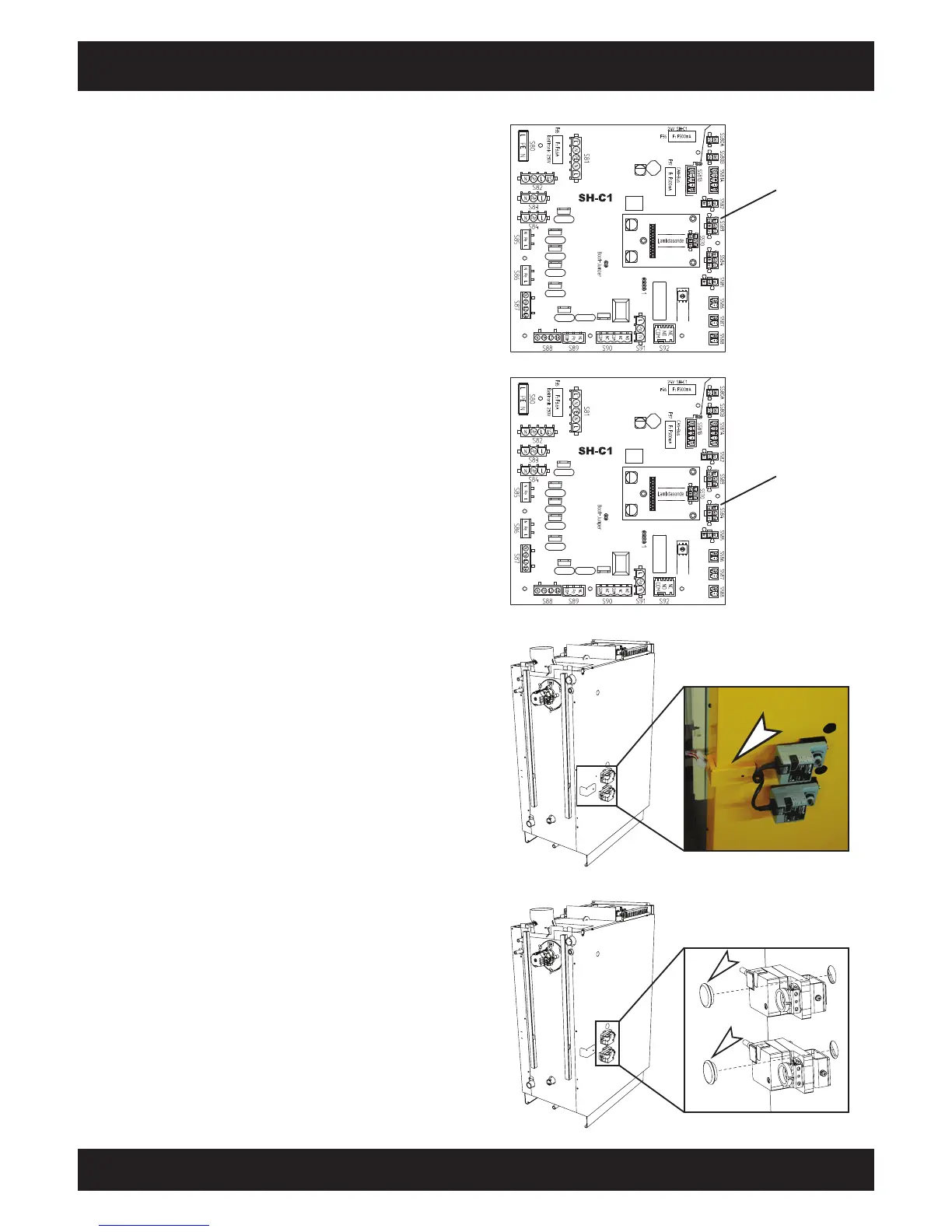

Connect cable to upper actuator

Connect the cable to the upper actuator and run it

through the cable ducts to the circuit board.

Connect the cable to the SH-C circuit board at the

S583 terminal.

Connect cable to lower actuator

Connect the cable to the lower actuator and run it

through the cable ducts to the circuit board.

Connect the cable to the SH-C circuit board at the

S584 terminal.

Insert rubber caps

Insert two rubber caps into the openings on the

left and right side panels.

Attach cable cover

Run the actuator cables under the cover. Screw the

cover onto the side panel with a 3.5 x 19 self-

tapping screw.
