S81
CAN Bus
S80

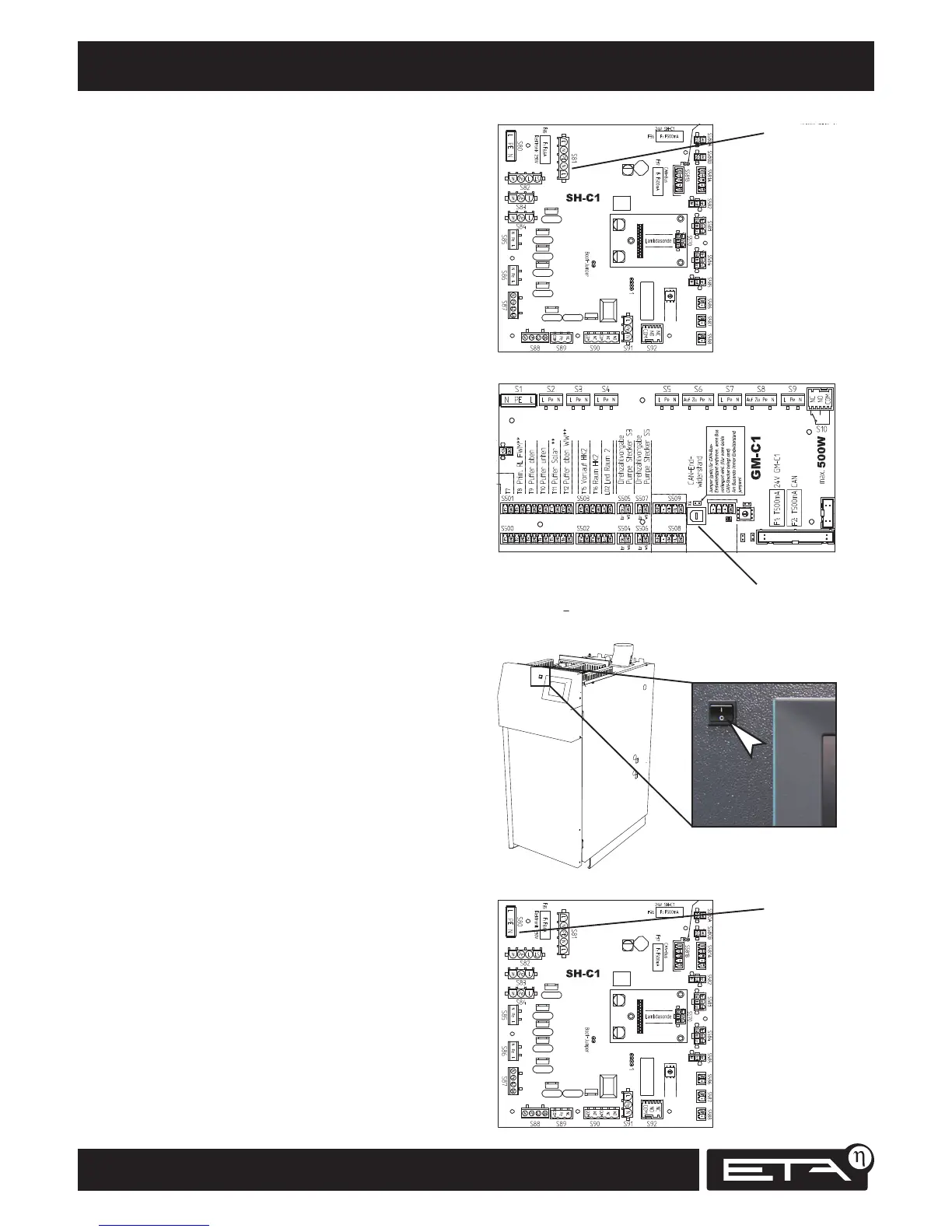

Cleaning lever for turbulators Installation
Switch off boiler with main switch
Switch the main switch on the boiler to the off
position.
Connect control system's power plug
Connect the cable to the SH-C circuit board at the
S81 terminal.
Connect CAN bus to control system
Connect the cable to the GM-C circuit board.
Connect boiler's power supply
Make the electrical connection to the boiler:
Supply cable 3 x 1.5² with flexible wires 230 V AC /
50 Hz C13 A / L+N+PE
Connect the cable to the SH-C circuit board at the
S80 terminal.
