6.5.2 ES400 Modules with additional ETAS Modules and Drive Recorder (Measurement
and Calibration)

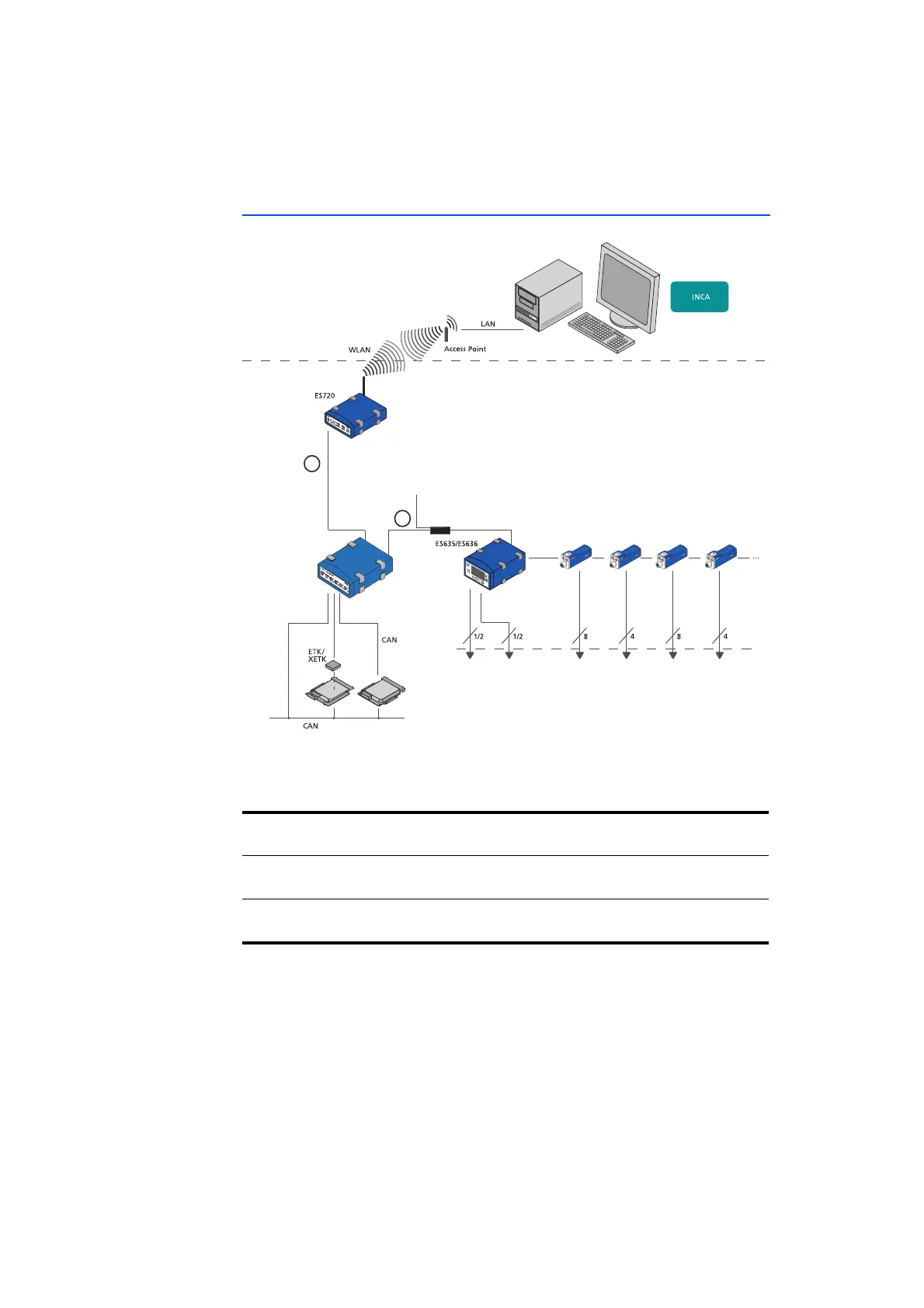

Fig. 6-17 ES400 Modules with additional ETAS Modules and Drive Recorder
(Measurement and Calibration)
Cable in
Fig. 6-17
Function Order name
1 ES520-, ES59x-, ES6xx-, ES1120- or ES1135-
Ethernet cable
CBE130, CBE140
2 Power supply and Ethernet cable Daisy Chain
modules
CBEP430,
CBEP4305
ECUECU
Ambient/
Exhaust
Pressure
Lambda Voltage Sensor
Voltage
Tempera-
ture
Frequency,
Counter Results,
Times
Drive Recorder
Vehicle
10/100 MBit/s
Ethernet
ES59x
1
Power Supply
Daisy Chain Modules
2
Daisy Chain Measurement Modules
ES410
ES411
ES413
ES415
ES420
ES421
ES441
