DLX pH-RX/MBB
6.0 - MICROCONTROLLED METERING PUMP DLX pH-RX-MBB SERIES

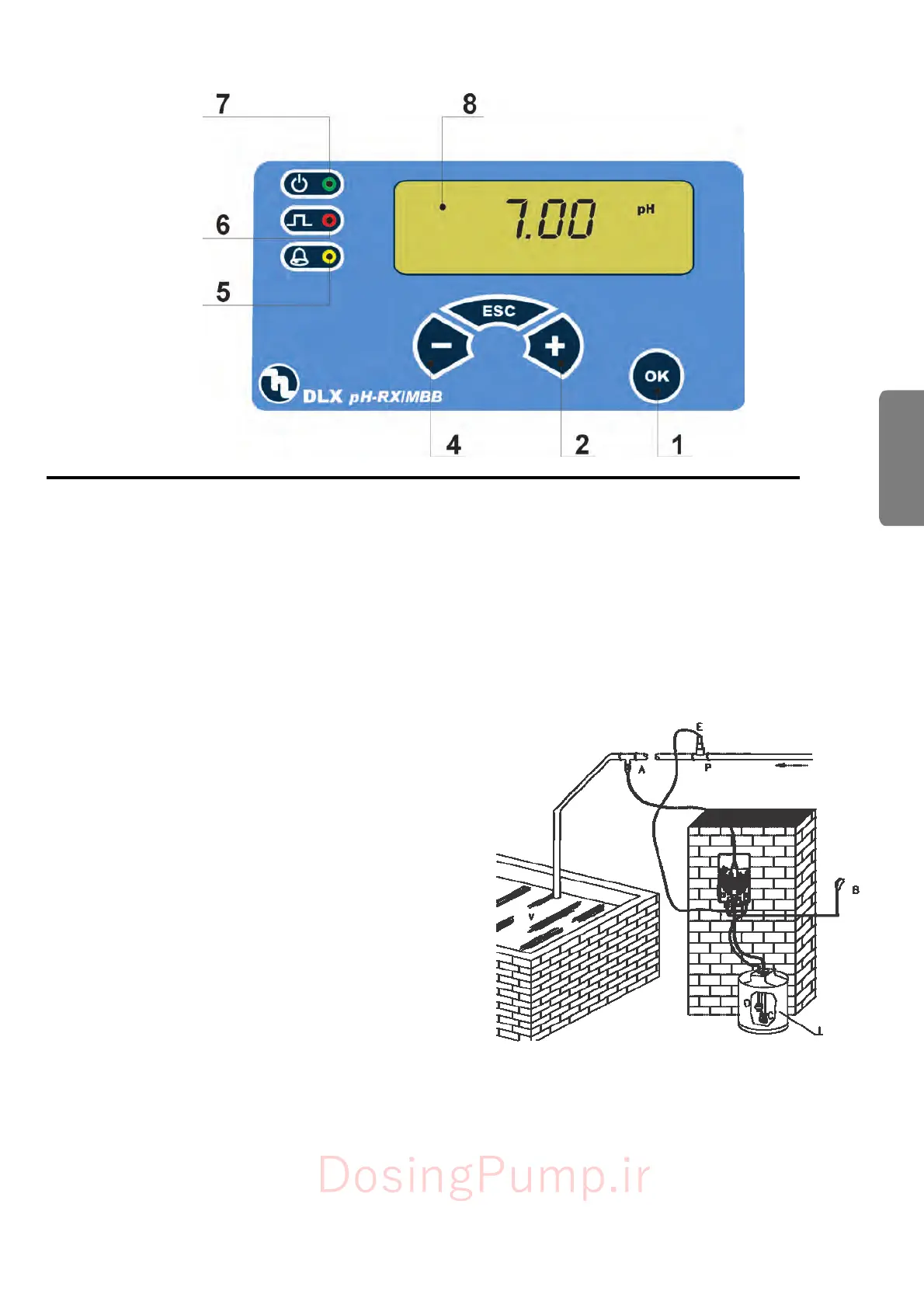

6.1 - COMMANDS (Fig.11)
1 - Confirm button "OK"
2 - Increase value button "+"
4 - Decrease value button "-"
5 - Alarm LED "yellow"
6 - Pulse LED "red"
7 - Power on LED "green"
8 - LCD display
6.2 - TYPICAL INST ALLA TION (F i g.12)
A Injection valve
B Power supply
C Filter
H Cable gland
I Chemical tank
V Process tank
6.3 - ACCESSORIES
• 1 flexible PVC suction hose,
transparent
cr ystal type, length 2 m;
• 1 semirigid polyethylene hose, white, length 2 m;
• 1 injection valve 3/8 BSP m;
• 1 filter;
• 1 instructions/operating booklet.
6.4 - LEVEL CONTROL
DLX Control is supplied with level control setting.
When
the chemical tank is empty, on the display
will
appear LEVEL and the pump goes in stand by.
The level control has 5 seconds of delay.
Fig. 12
