2.3 - LIQUID ENDS MA TERIALS
DIAPHRAGM: PTFE
PUMP HEAD: Polypropylene; upon request: PVC, 316 Stainless, PTFE, PVDF
NIPPLES: polypropylene
FIL TER: polypropylene
INJECTION NIPPLE: polypropylene
SUCTION HOSE: PVC - flexible
DISCHARGE HOSE: polyethylene
VA LVES “lip”type: FPM (viton), (upon request available in EPDM (Dutral), NBR, Silycon).“Ball Check” VAL VES
upon request type in SS 316 and Glass PYREX. A vailable with Spring Return and “KALREZ”V alve.
SEALS: FPM upon request EPDM (Dutral), NBR, Silycon, PTFE only for ball checks valves
TECHNICAL CARACTERISTICS
Tipo Portata max Pressione max Max imp./min. Dosaggio per imp. Corsa Altez. aspiraz. Aliment. elettr. standard Potenza ass. Corrente ass. Peso netto
Type Max flow Max press Max imp./min. Output per stroke Stroke Suction height Standard power supply Power comp. Current comp. Net weight
l/h bar ml mm m Volts - Hz Watts Ampere kg
1-15 1 15 120 0.14 0.80 2.0 230 V 50-60 Hz 37 0.16 2.3
2-10 2 10 120 0.28 0.80 2.0 230 V 50-60 Hz 37 0.16 2.3
5-7 5 7 120 0.69 1.00 2.0 230 V 50-60 Hz 37 0.16 2.3
5-12 5 12 120 0.69 1.00 2.0 230 V 50-60 Hz 58 0.25 2.9
8-10 8 10 120 1.11 1.40 2.0 230 V 50-60 Hz 58 0.25 2.9
15-4 15 4 120 2.08 2.20 2.0 230 V 50-60 Hz 58 0.25 2.9
20-3 20 3 120 2.60 2.20 2.0 230 V 50-60 Hz 58 0.25 2.9
2-20 2 20 120 0.28 1.00 2.0 230 V 50-60 Hz 58 0.25 2.
9
Fig. 2
bar
20
2-20
1-15
15
5-12
2-10
10
5-7
8-10
15-4
5
20-3
i.v.p.
0
0 5 10 15 20
l/h
Fig. 3

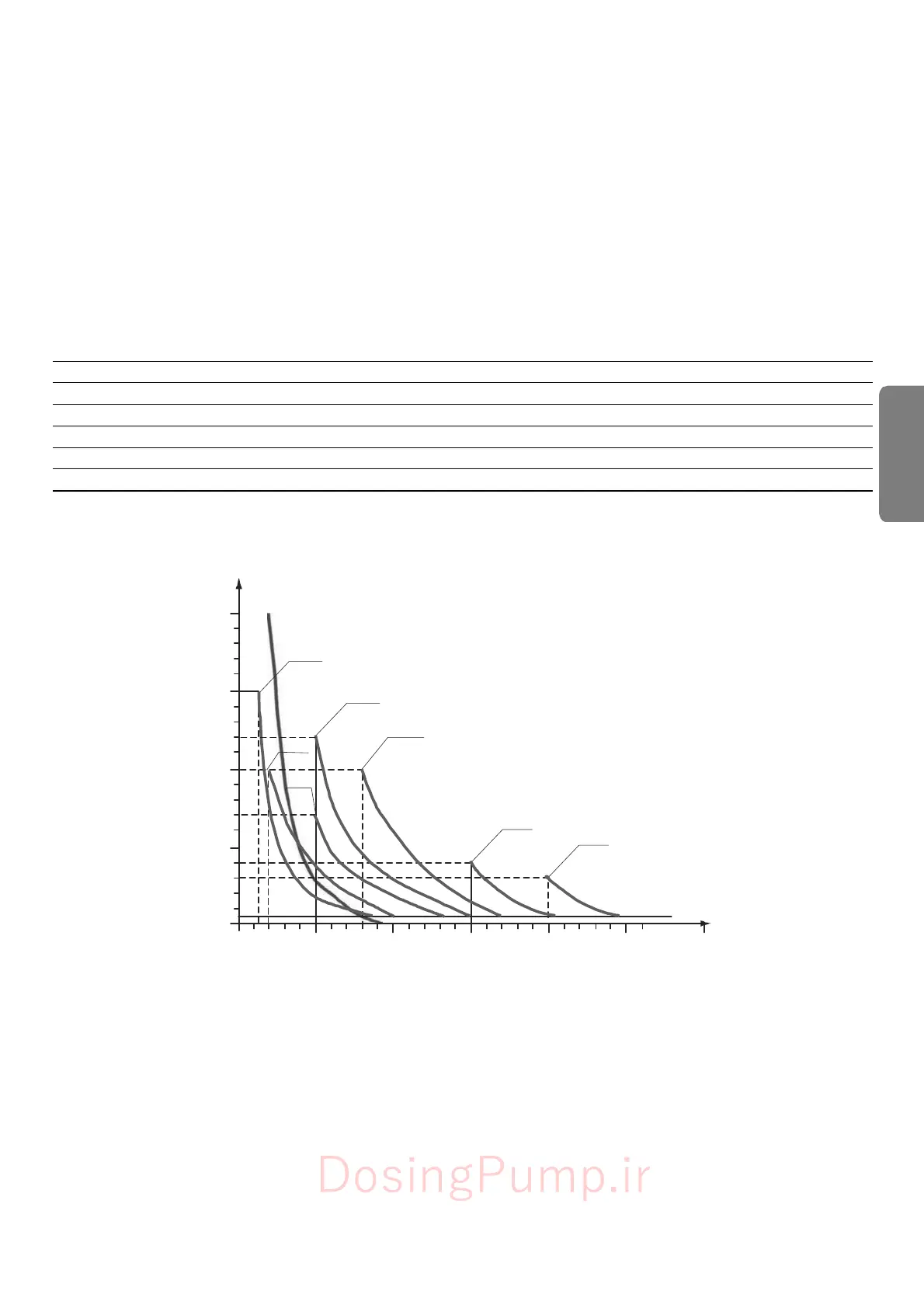

The diagrams of fig. 3 indicate max metering pump flow variation in relation to the working pressure in the
plant; the diagrams also include injection valve losses. I.V .P .
Due to production requirements the technical characteristics of our equipment at maximum ratings can var y
with
a tolerance of 5% which must be taken into account when choosing the type of pump.
