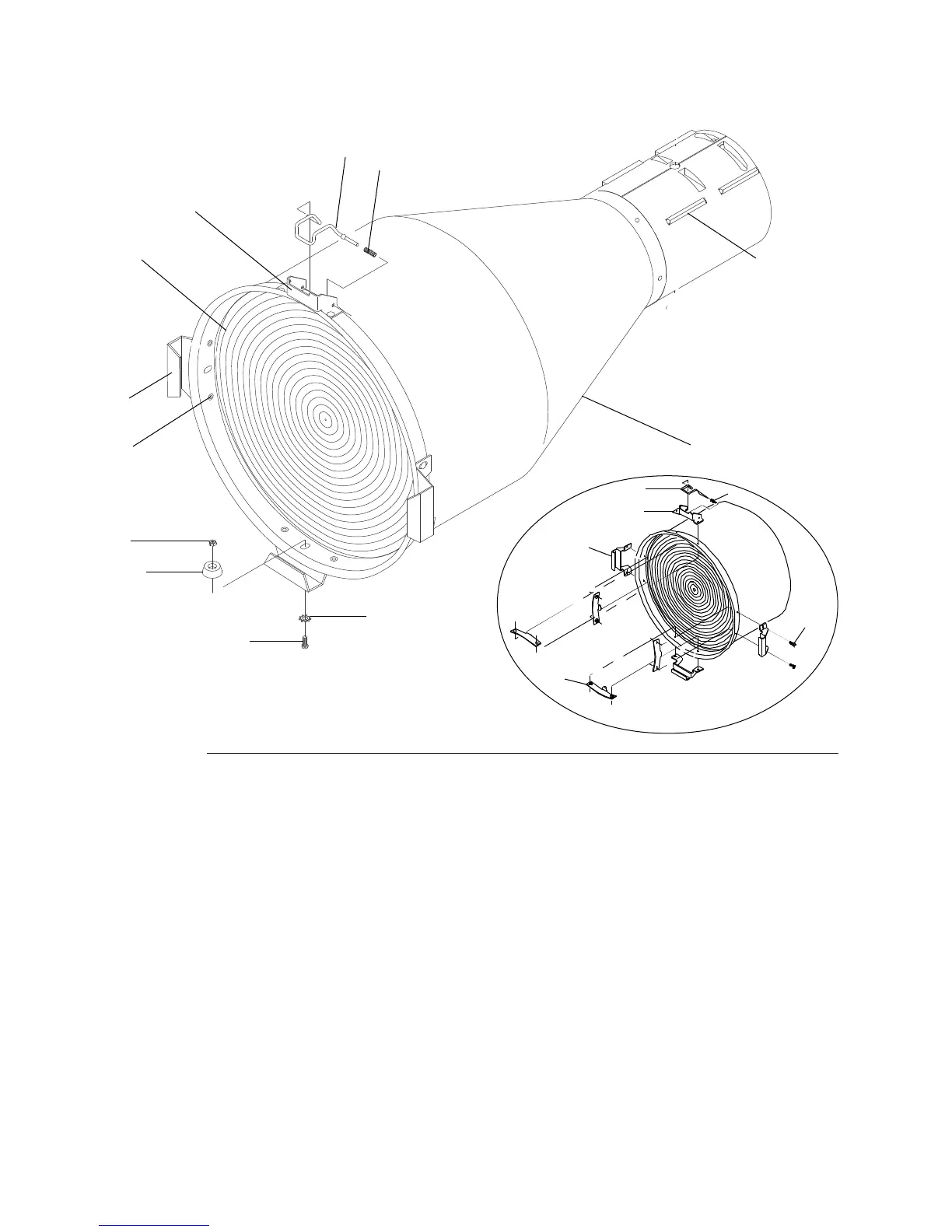

10° lens tube
Reference Part Description Quantity
Number Number Required
1 7060A2017 10º lens tube assembly, painted 1
2 7060A4009 Bushing guide 8
3 HW750 Spring, retainer 1
4 HW6122 Bumper, recess rubber 4
5 7060A4025 Lens, 10°, 10” 1
6 7060A3079 Clip, gel retainer 1
7 HW307 Screw, 8-32 x .38 SPHMS, black zinc 4
8 HW301 Nut, 8-32, 3/8 x 1/4, black zinc 4
9 HW3104 Washer, .170 x .381 x .023 black zinc 4
10 7060A3066 Bracket, gel clip 1
11 7060A3086 Bracket, gel holder 3
12 HW759 Rivet, .125 x .125Lg oval head 8
*10° lens tube prior to 3/96
A 7060A3065 Bracket, gel holder 3
B 7060A3081 Steel mounting bracket with inserts 4
C HW396 Screw,8-32 x 3/8, pan head sems, black zinc 8
1
2
(8 required)
3
4
(4 required)
5
6
7
(4 required)
8
(4 required)
9
(4 required)
10
C
A
B
10
6
3
Figure A*
2/96
11
(3 required)
12
(8 required)
12
To Next Page
