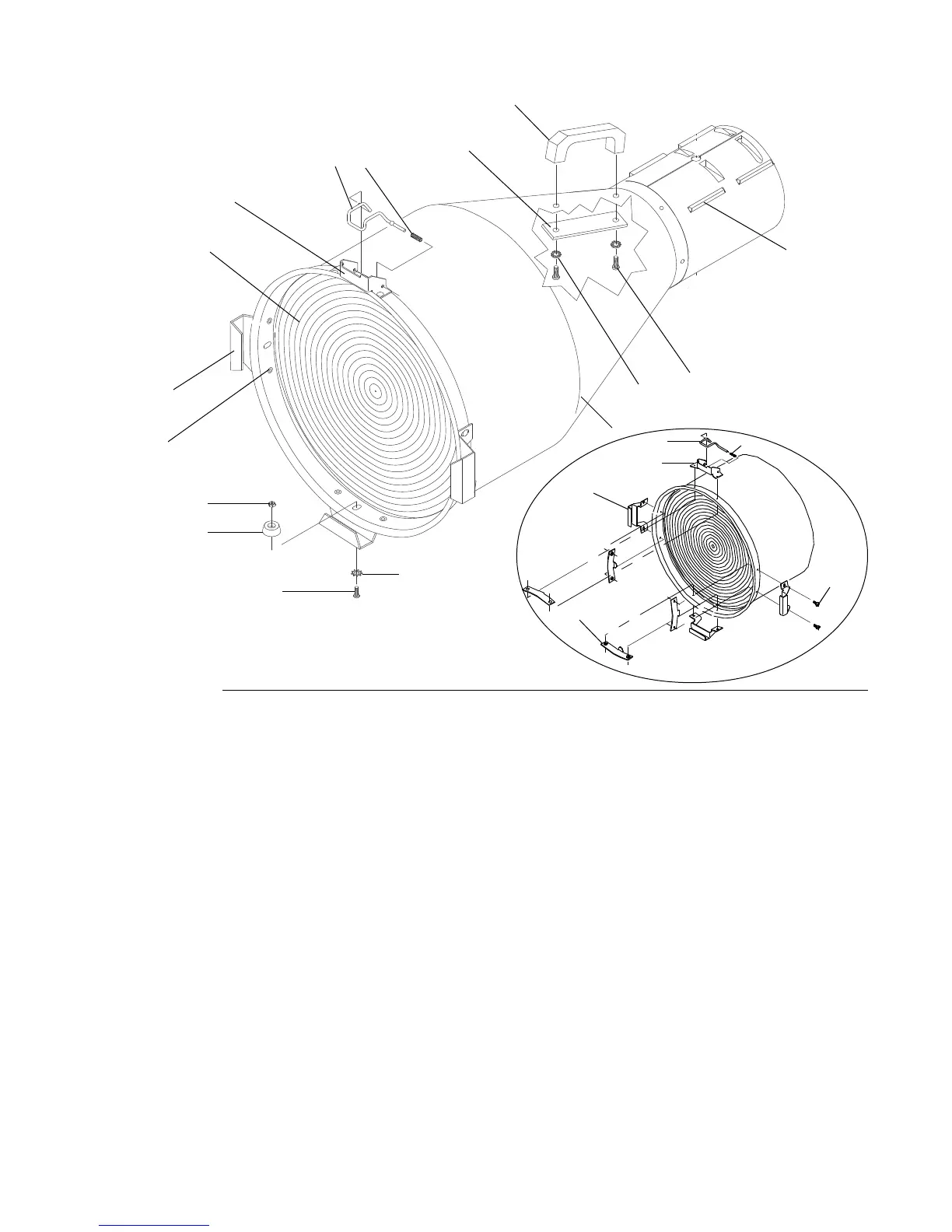

5° lens tube
Reference Part Description Quantity
Number Number Required
1 7060A2017 5° lens tube assembly, painted 1
2 7060A4009 Bushing, guide 8
3 HW750 Spring, retainer 1
4 HW6122 Bumper, recess rubber 4
5 7060A4024 Lens, 5°, 12" 1
6 7060A3079 Clip, gel retainer 1
7 HW307 Screw, 8-32 x .38 lg, SPHMS, black zinc 4
8 HW301 Nut, 8-32, 3/8, 1/4, black zinc 4
9 HW3104 Washer, .170 x .381 x .023, black zinc 4
10 7060A3066 Bracket, gel clip 1
11 7060A3086 Bracket, gel holder 3
12 HW759 Rivet, .125 x .125 lg. oval head 8
13 HW8170 Handle, 10-32 inserts 1
14 7060A3073 Handle backing plate 1
15 HW467 Screw, 10-32 x 1/2 PHTRMS 2
16 HW443 Washer, .195 x .410 x .025 black zinc 2
5° lens tube prior to 3/96
A 7060A3065 Bracket, gel holder 3
B 7060A3081 Steel mounting bracket with inserts 4
C HW396 Screw, 8-32 x 3/8, pan hd sems, black oxide 8
2
(8 required)
1
3
4
(4 required)
6
7
(4 required)
8
(4 required)
13
9
(4 required)
5
14
16
(2 required)
15
(2 required)
B
D
6
3
10
A
Figure A*
2/96
10
11
(4 required)
12
(8 required)
13
To Next Page
