ETC Source Four - Mounting & Connecting the Remote Control Gear

Mounting and connecting the remote control gear
Mount
the fixture first in its final location. A number of mounting brackets are available from your dealer. We
recommend the use of a secondary suspension cable which is also available from your dealer in both black and
galvanised finish.
The Source Four CDM
is supplied with a 2m high voltage flex that must be connected to the remote encapsulated
control gear. If for any reason another control gear package is used, it must be of a type approved by Philips for use
with the CDM-T mastercolour lamp and must mee
t all local electrical codes. If in doubt, please contact Enliten for
advice.
Do not extend the luminaire flex
- it is a special high voltage cable type and the maximum permitted distance
between the fixture and remote encapsulated gear is 2m/6ft*
If
you must place the control gear more than 2m from the fixture, you should contact your dealer and upgrade the
control gear package to a 20m long range IP65 control gear package.
You should now securely mount the remote control gear in a suitable location
such that the luminaire flex will easily
reach the output terminals. The location must be ventilated to ensure that the ambient temperature does not rise
above 50°C.
You may now connect the luminaire to the control gear package
The installation and co
nnection of a Source Four CDM system to a mains supply should be carried out by a competent
electrician and all work should be carried out to local regulatory standards.
The connections are as follows;
Fixture to ballast
HT/Live – Brown with white inner insulation
Neutral – Blue with white inner insulation
Earth/Ground – Green/Yellow
The Source Four CDM is a Class II (earthed) fixture and must be earthed/grounded even when connected to a Class I
(double insulated) control gear package.
Page 3

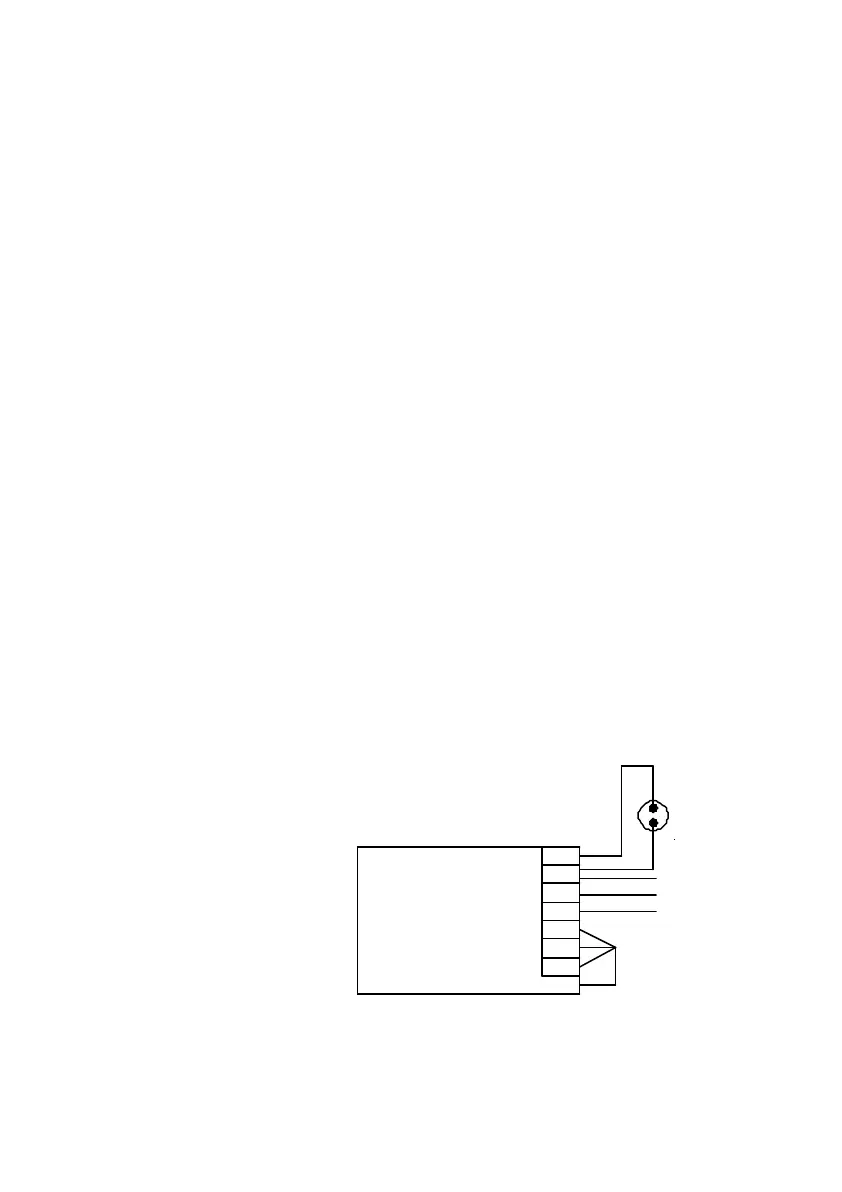

Source Four CDM DiagramSource Four CDM Diagram
Page 6
Use black wire to
select voltage
[230]
[250]
[240]
L
E
N
LA
230/240/250V
50Hz
N
E
L
