Ethos 4700 - One Pole Application( in Open Circuits); Double Pole Application( in Complete Circuits)

9
figure 2
figure 3
3.
3.

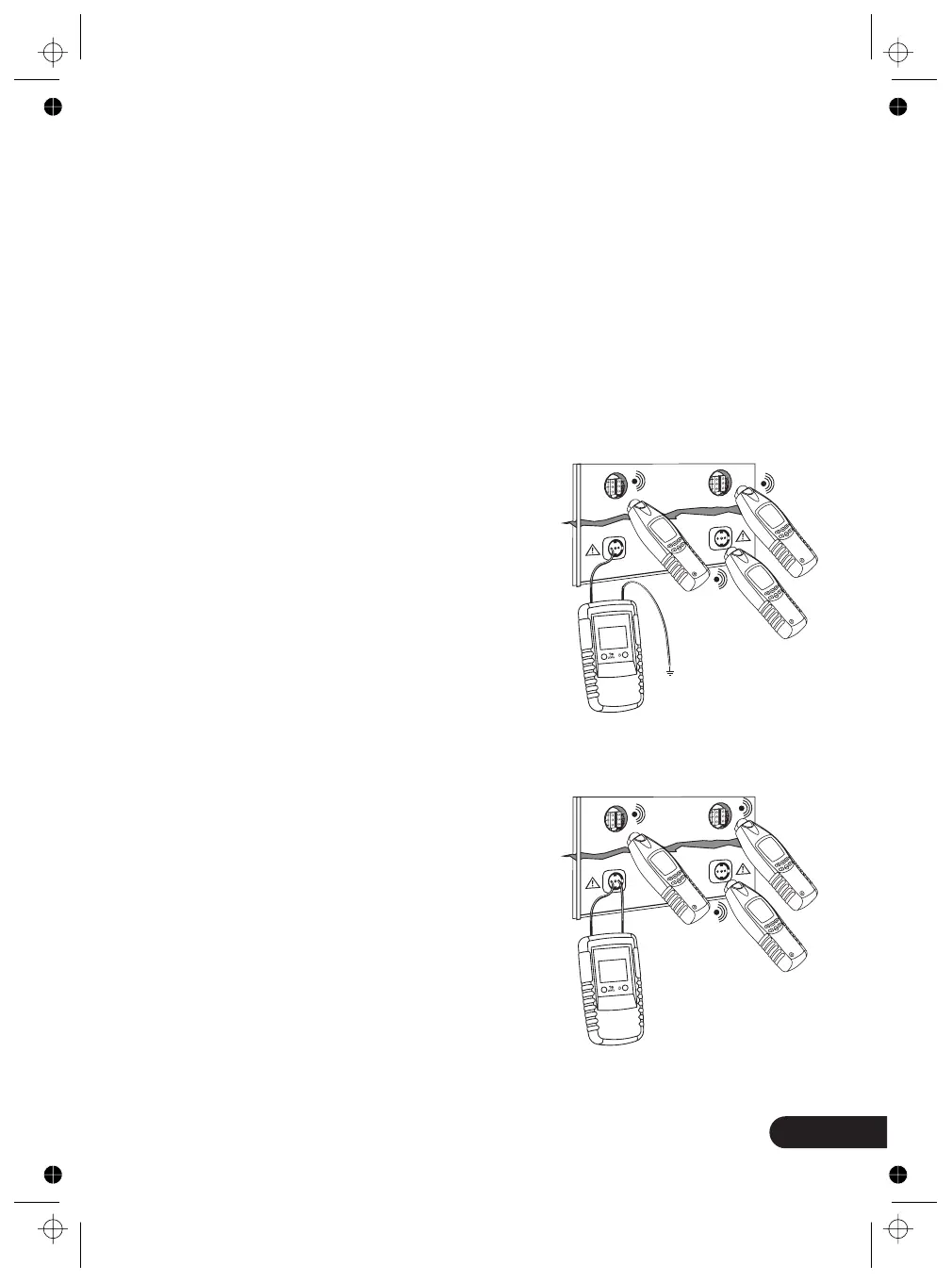

2 One pole application( In open circuits)
Note:
3 Double pole application( In complete circuits)
Note:
Line interruptions in walls and floors. Finding and tracing of lines, sockets, junction
box, switches, etc. for house installations. Finding bottlenecks, kinking and
bucklings and obstructions in installation pipes by means of a metal coil.
The ground connector must be connected to a suitable earth. A typical example
would be an earthed socket. The tracing depth amounts to 0...2 meters.
The tracing depth depends on the medium and application.
When detecting short-circuits or during wire
sorting, i.e circuits with or wihout voltage.
Voltage –free circuits are directly supplied by
the instrument battery. Example for a complete
circuit: Complete circuits are apppropriate for:
i.e. detecting sockets, switches, etc in live
installations.
The tracing depth amounts to 0...0 5 meters
The tracing depth depends of medium and
application
When connecting in live circuits, safety
regulations must be followed.
The switching with button 4 from LEVEL I to
LEVEL III the sensitvity of Distance is increased
up to factor 5.
.
