figure 17
figure 16
20

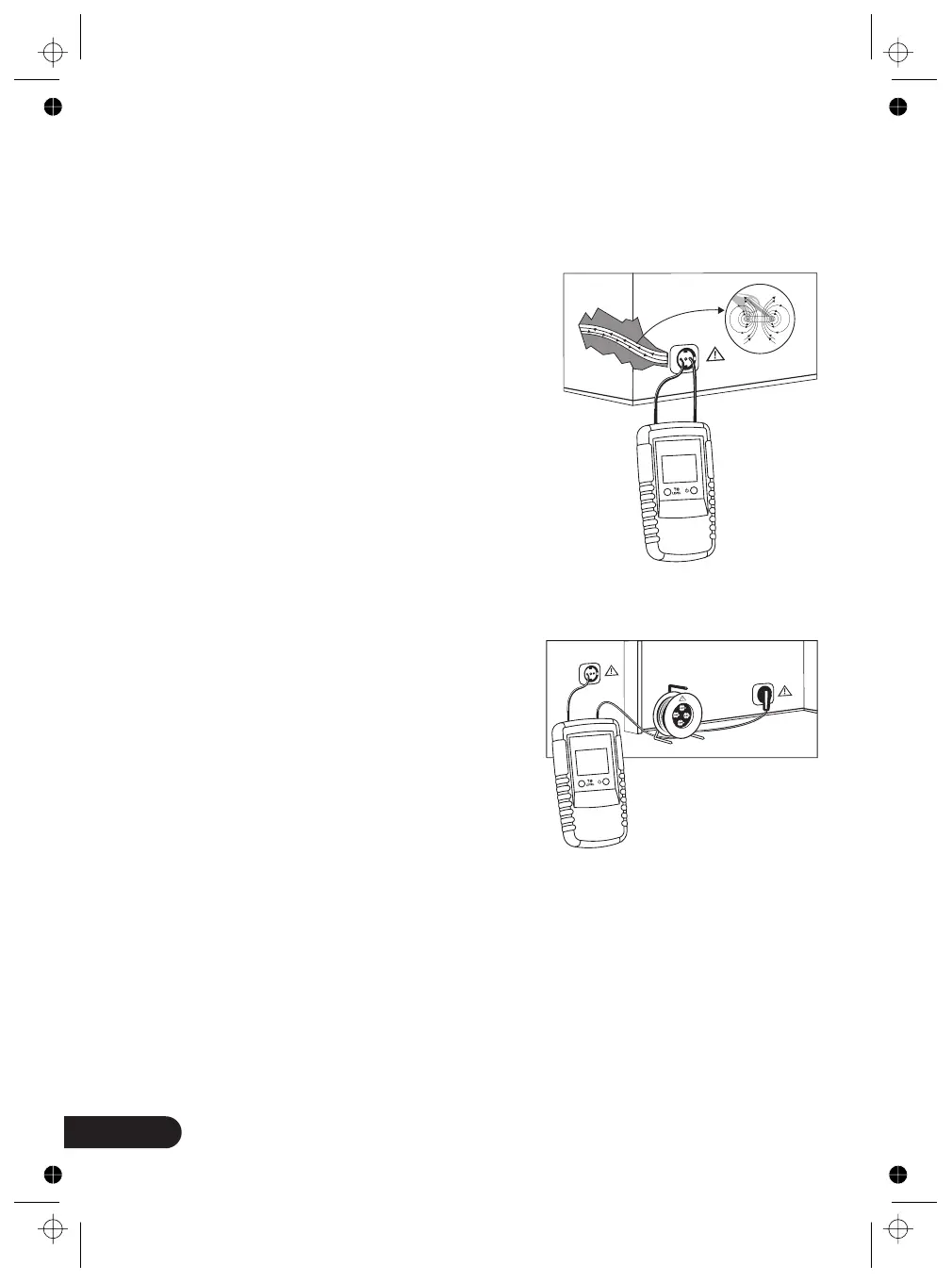

3.16 The reach will be improved when seeking the tension
If the transmitter is attached at the phase and the neutral coil directly gets lost
the signal in the line going parallel to and back (see figure).
The range can partly lead to signal fall off
when twisting the conductors among each
other. The reach is max. 0 5 meters.
To turn the effect pointed in the upper figure
off, the connection should be carried out like
the figure 17. The backline is produced about
a separate cable. The distance in voltage
circuits will be up to 2 5 meters. Back coils at
higher distance i.e. Cabletrace (see figure)
Respect sufficient distance to the conductor
to be located in order to allow an unambiguous
as-signment between the signals received
and the conductor.
Comply with the safety references when
perfor-ming connections on live circuits!
The switching with button 4 from ”LEVEL I”
to “LEVEL III” the sensitvity of Distance is
increased up to a factor of 5.
•
.
.
•
•
•
