10
3.
Note:
4 Locating and tracing of lines, lateral circuit branches, sockets, switches
and junctions in house installations circuits (one-pole application)
When locating and tracing of lines, sockets,
switches and junctions in house installations
circuits, the circuits must be dead; Neutral
line and ground must be connected and fully
operational; Connect transmitter to phase
and neutral according to figure 4; and Carry
out this example as described in the application
example.
If the supply cable fed with the signal via the transmitter is located, e.g. Directly
in parallel to other conductors (e.g. cable duct), or if these conductors are crossed,
the signal is also input into the other conductors. The fuse must be removed
during this example.
The switching with button 4 from “LEVEL I” to “LEVEL III” the sensitvity of Distance
is increased up to a factor of 5.
Setup: manual mode, minimal sensitivity. Tracing depth max. 2 meters.

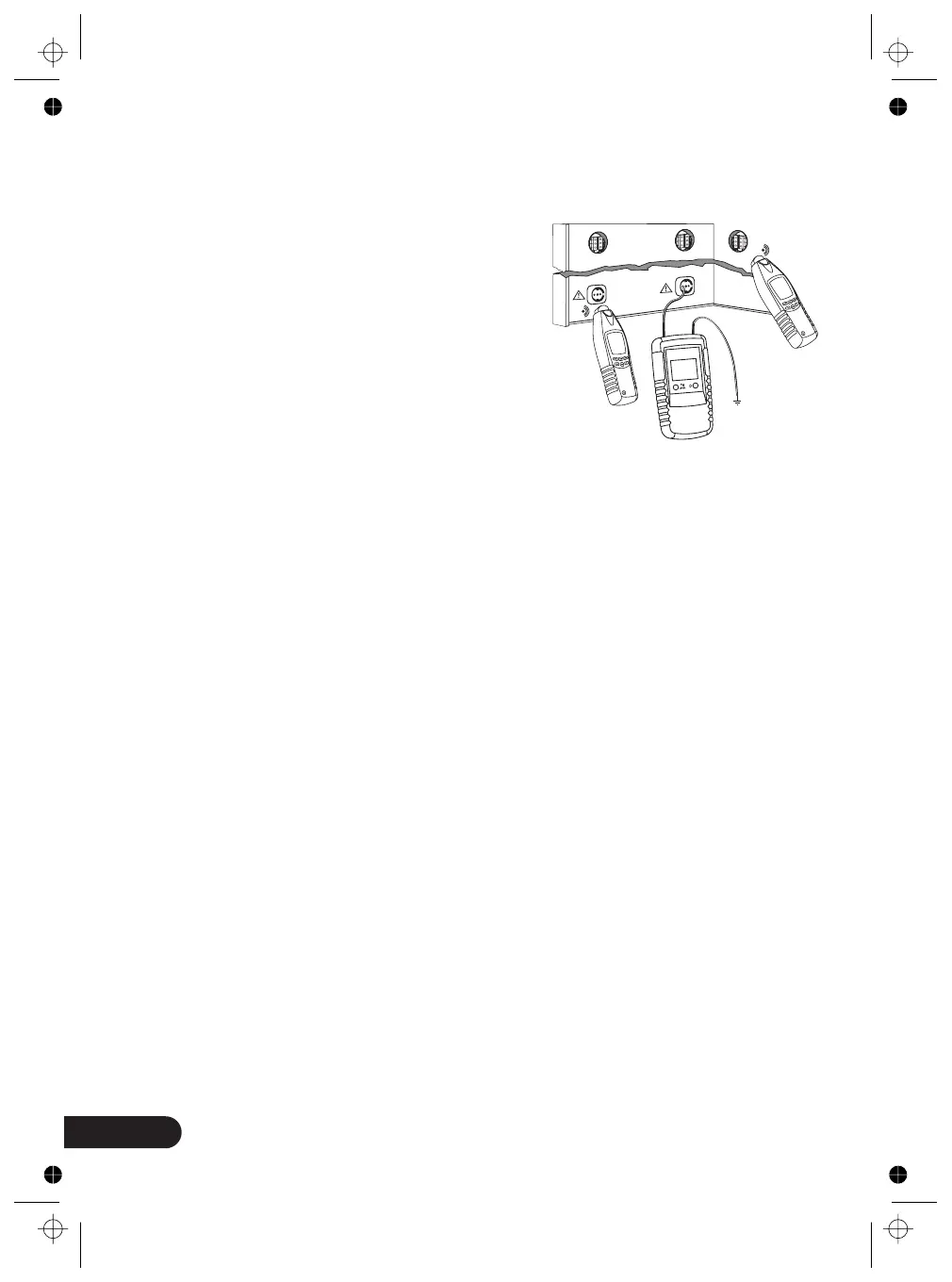

figure 4
