3.13 Locating a complete house wiring (one-pole application)
Note:
In order to determine all electrical lines of a house within one working process,
proceed as follows:
Remove the bridge in the main distribution
between PE and N .
• Connect the transmitter to the system
compliance with the figure 13. Now, the
neutral conductor, being present within the
total system, may be followed.
For safety reasons, the system must not
be live!
The switching with button 4 from “LEVEL I” to “LEVEL III” the sensitvity of
Distance is increased up to a factor of 5.
Setup: manual mode, minimal sensitivity. Tracing depth max. 2 meters.
•
““ ““

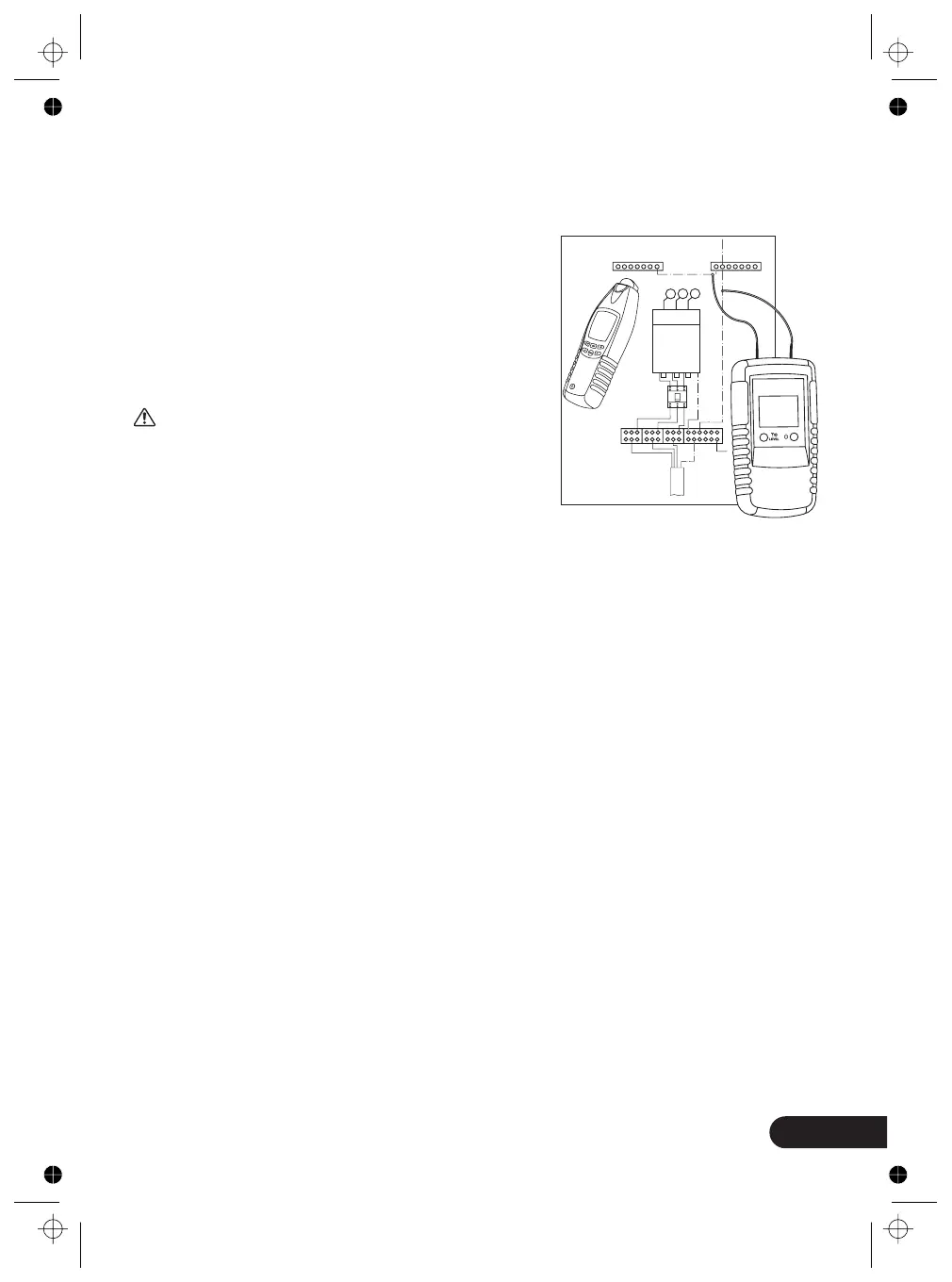

figure 13
