3.9 Locating Fuses (dual-pole application)
Note: Set transmitter to LEVEL I
°
When connecting in live circuits, the safety directions must absolutely be
respected.
Insert into the current circuit of a multifamily
residential structure within a socket between
L1 and N and switch the transmitter to LEVEL I .
You may assign the signal in the secondary
distribution and main distribution by transmitter
pre-setting LEVEL I . Thus, fuses and automatic
devices can definitely be assigned to a certain
current circuit. The detection or assignment
of the fuse strongly depends on the wiring
realised within the distribution. To obtain a
result as precise as possible, the cover should
be removed and the supply line to the fuse
should be traced.
The switching with button 4 from LEVEL I to LEVEL III“ the sensitvity of Distance
is increased up to s factor of 5.
Setup: selective mode, minimal sensitivity
Safety cut-outs of different manufacturers have different installation positions for
magnetic coils. If no evident signal can be found by the receiver in the position
shown below it is advised to modify the position by 90 towards the left or the
right.
““
““
“““

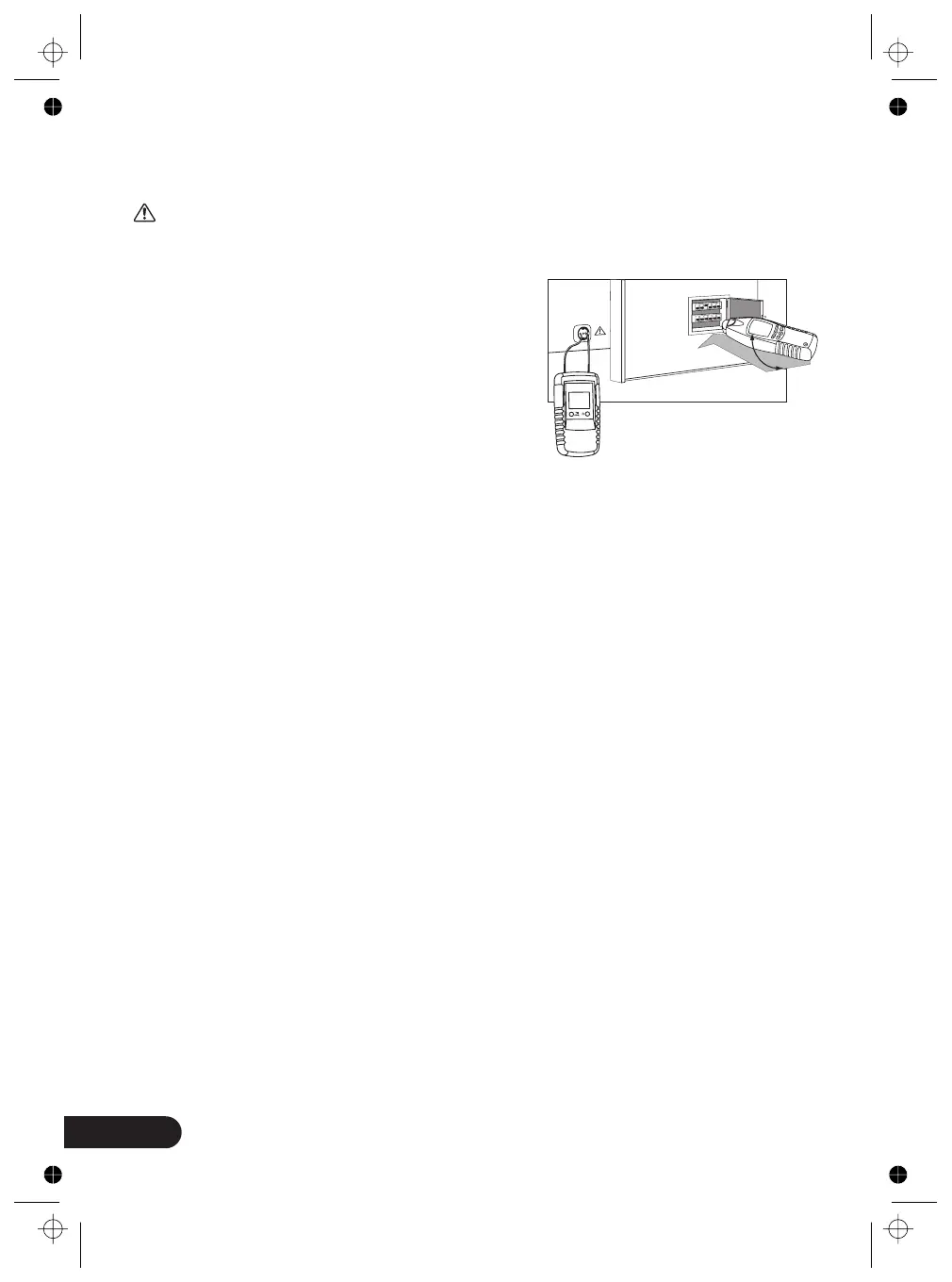

figure 9
