Tracing installed water and heating pipes (one-pole application)
Detecting the direction of water and heating pipes already installed
(one-pole application)
Note:
The tracing conditions: The line to be located must be separated from the
equipotential bonding.
For safety reasons the electrical system must not be live!
Connect transmitter at foundation ground to
the ground socket. The second transmitter
socket has to be connected to the conductor
to be located. Now the feed line can be traced.
The switching with button 4 from “LEVEL I”
to “LEVEL III” the sensitivity of Distance is
increased up to a factor of 5.
Setup: manual mode, minimal sensitivity.
Tracing depth max. 2 meters.
When detecting the direction of water and
heating pipes already installed, the respective
water and heating pipes must be suitably
grounded; connect the transmitter according
figure 12; and carry out this example as
described in the application example.
The earth of a properly earthed socket is a suitable ground. The switching with
button 4 from “LEVEL I” to “LEVEL III” the sensitivity of Distance is increased up
to a factor of 5.
Setup: manual mode, minimal sensitivity. Tracing depth max. 2 5 meters..

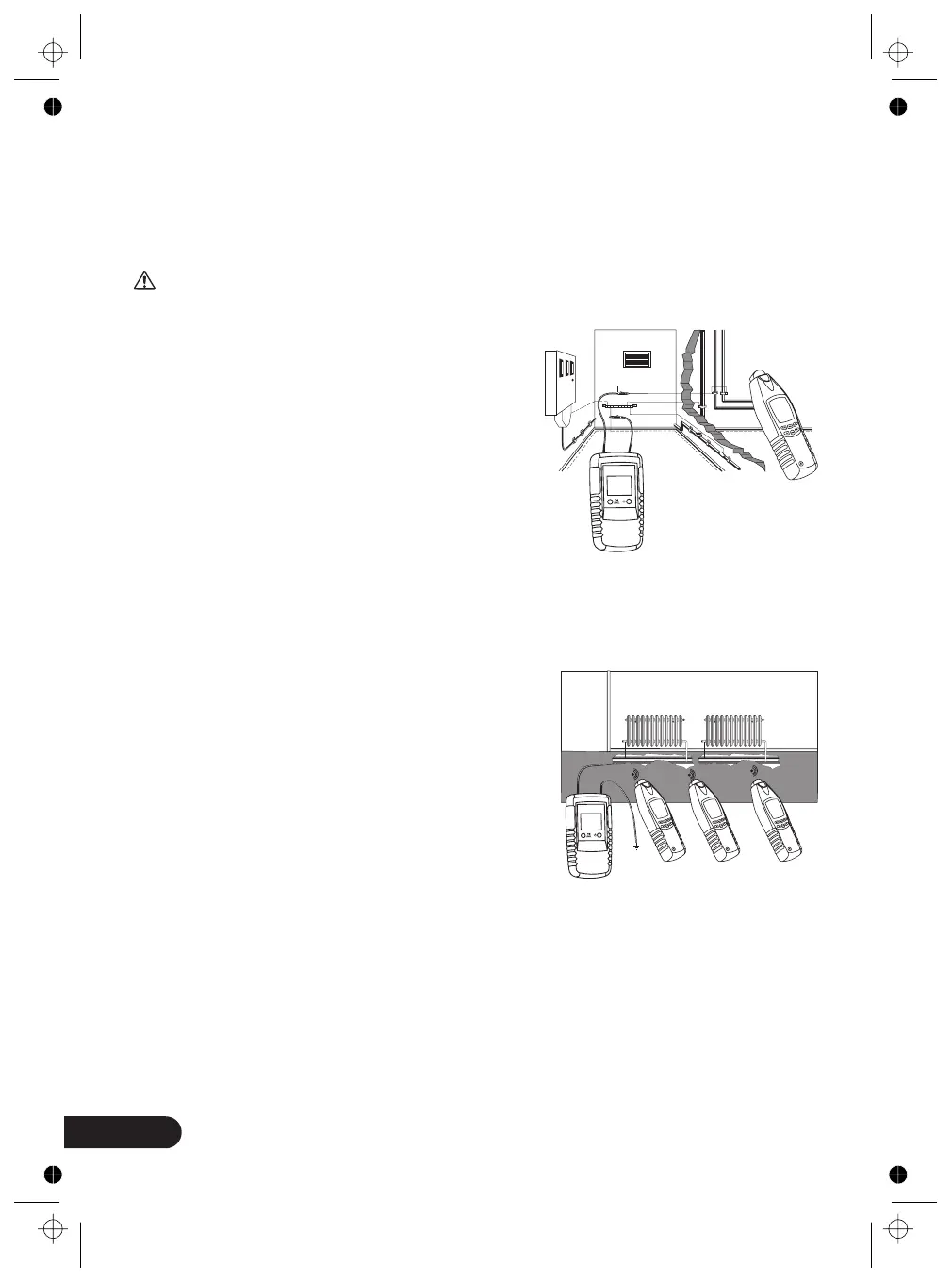

figure 11
figure 12
