17-7 Instrument Pane
The instrument panel includes fuel gauge, speed meter, water
Temperature gauge, right and left turn signal, trip do-meter,
and indicator camp. A LCD is used on ATV8E’s instrument
panel
to display all driving information for users. Therefore, this is
an all-in-one instrument panel.
Instrument Panel REMOVAL
There is a cable and connector on the back of the
instrument panel. After removing instrument panel,
users can find out
an electrical connector which is connected with a driving
sensor at the back of the instrument panel.

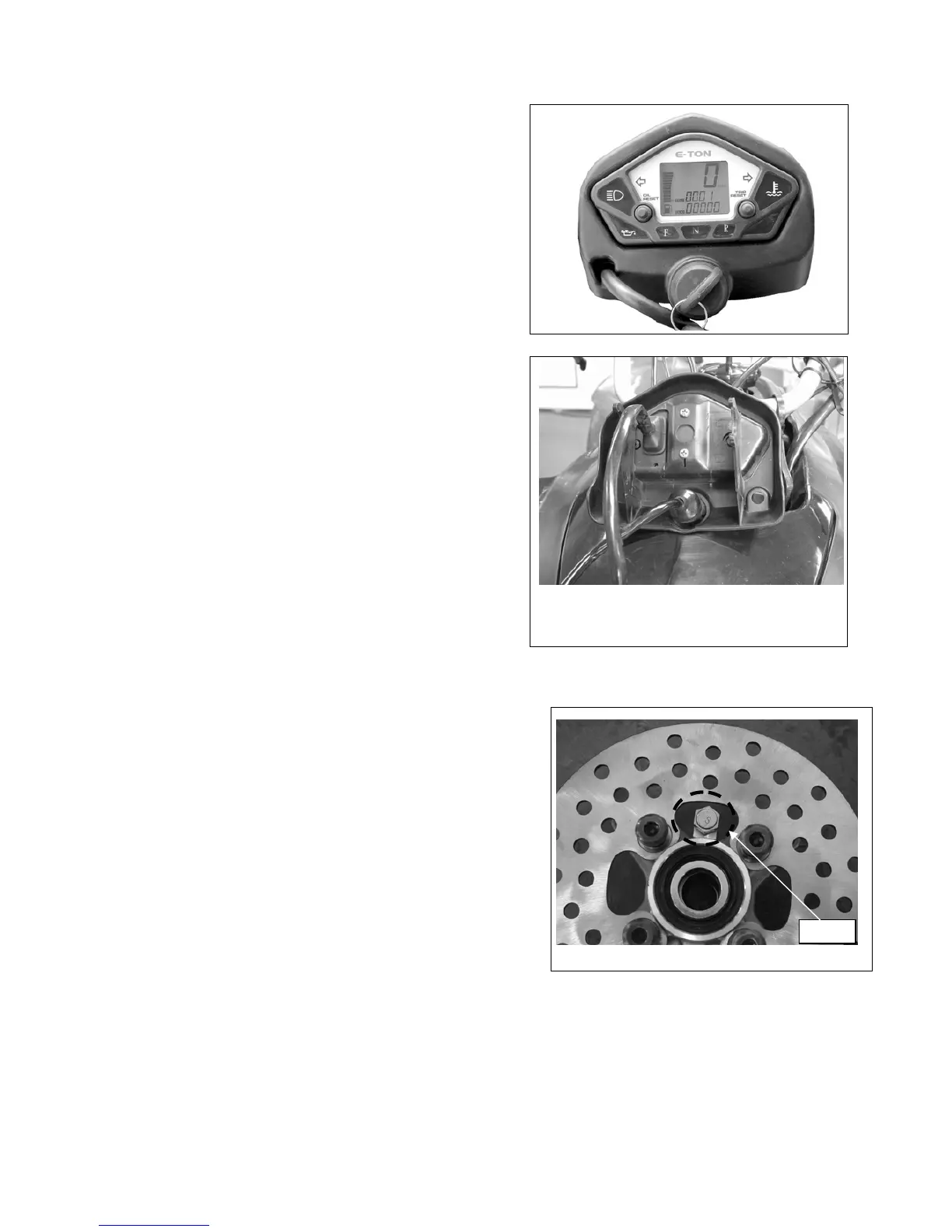

The sensor is installed at the brake disk and a cable is tightened
on the left side of knuckle component
as shown in pictures
Sensor
