3. ENGINE REMOVE AND INSTALLATION
3-1 General Information 3-3 Engine Installation
3-2 Engine Removal
3.1 General Information
ENGINE SHALL BE REMOVED IN THE CONDITIONS OF NECESSARY REPAIRMENT OR
ADJUSTMENT TO THE TRANSMISSION AND COMBUSTION SYSTEM ONLY
3-2 Engine Removal
Before removing engine, you need to remove all of components such as seat, front and back fender,
fuel tube, exhaust pipe, carburetor cable and drive chain…etc. You can then see three hanger bolts which have
screwed on engine.
Loosen these three hanger bolts. You have succeeded to remove this engine.
There are some pictures to describe main step of removing engine.

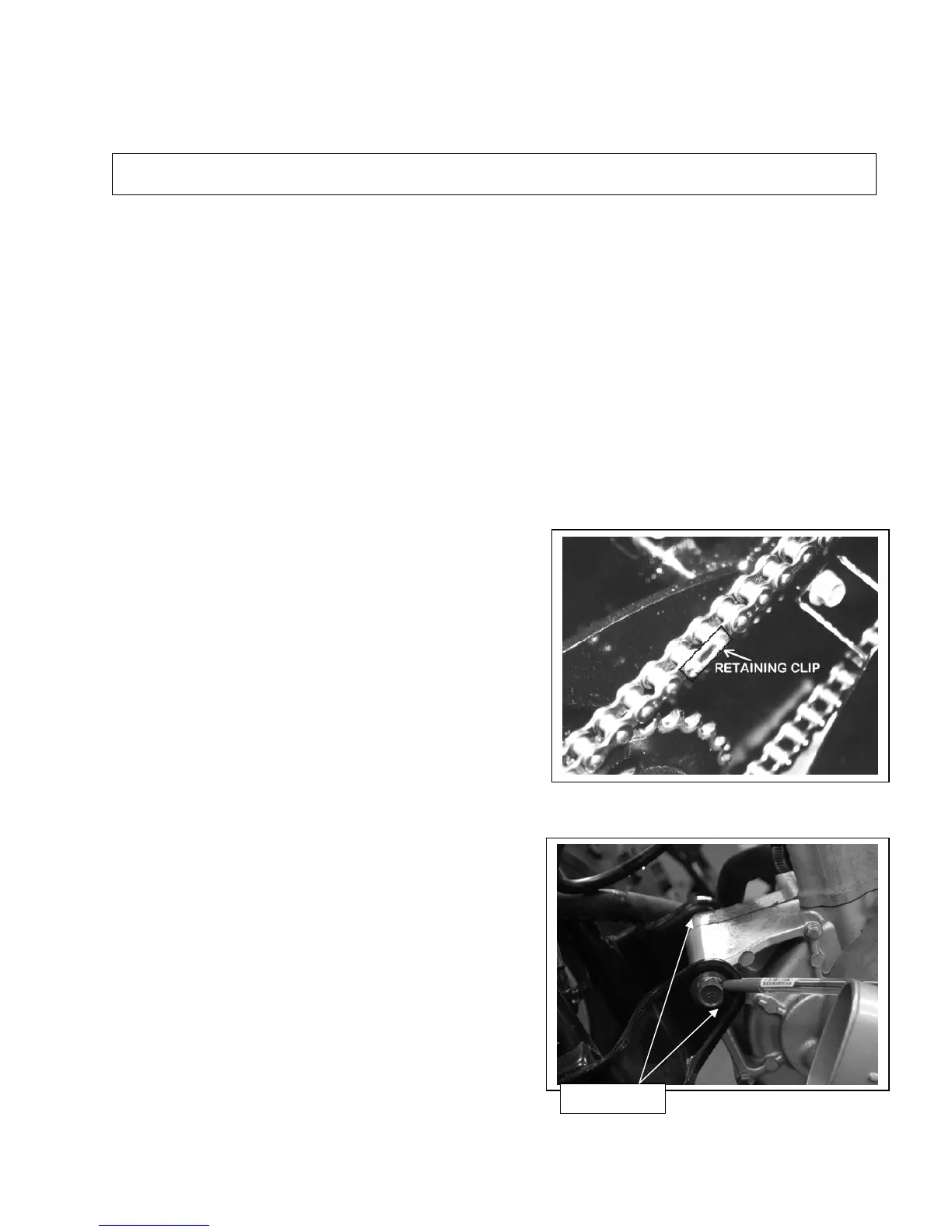

Disconnect the wire connectors. There are three connectors for
carburetor auto-choke, starter motor and generator respectively.
Remove the drive chain cover.
Remove the drive chain retaining clip and master link,
and remove the drive chain.
Hanger bolt
