19

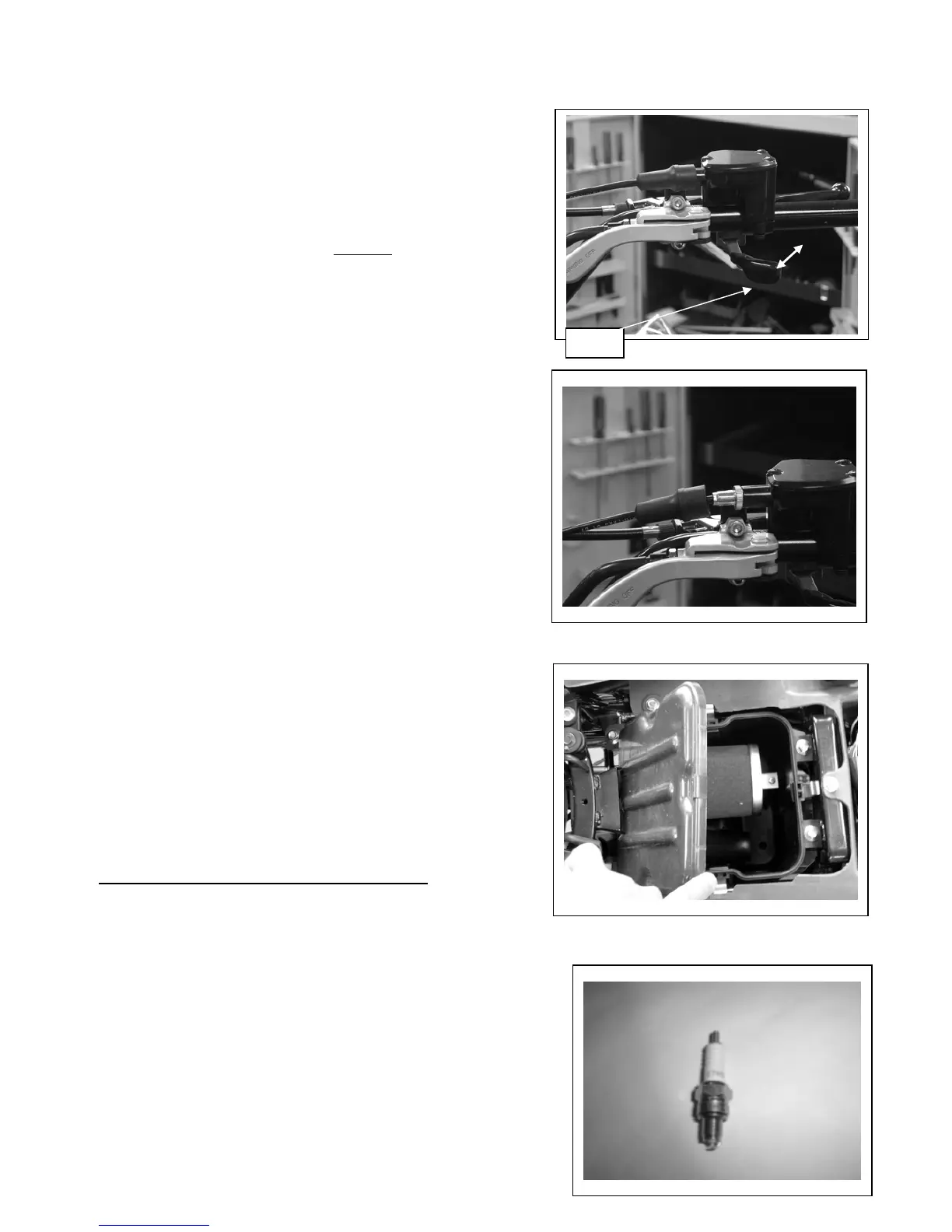

2-4 Throttle Operation
Inspect for smooth throttle lever full opening and automatic
full closing in all steering positions.
Inspect if there is no deterioration, damage or kink in the
throttle cable, replace it if necessary.
Check the throttle lever, free play is 5-10 mm at the tip of the
throttle lever.
Disconnect the throttle cable at the upper end.
Lubricate the cable with commercially lubricant to prevent
premature wear.
2-5 Throttle Cable Adjustment
Slide the rubber cap of the adjuster off the throttle
Housing, loosen the lock nut and adjust the free play
of the throttle lever by turning the adjuster on the throttle housing.
Inspect the free play of the throttle lever.
2-6 Air Cleaner
Please remove the four hooks, and then disassemble
two screws inside the air cleaner case.
Pull out the air filter element from the air cleaner case.
Washing the element in non-flammable solvent, squeeze
out the solvent thoroughly.
Let it dry.
Soak the filter element in gear oil and then squeeze
out the excess oil.
Install the every component into air cleaner in the reverse order of
removal.
Note: for more detail please check chapter 5-10
2-7 Spark Plug
This spark plug is located at the front of the engine.
Disconnect the spark plug cap and unscrew the spark plug.
Check the condition of spark plug electrodes wear.
Throttle
