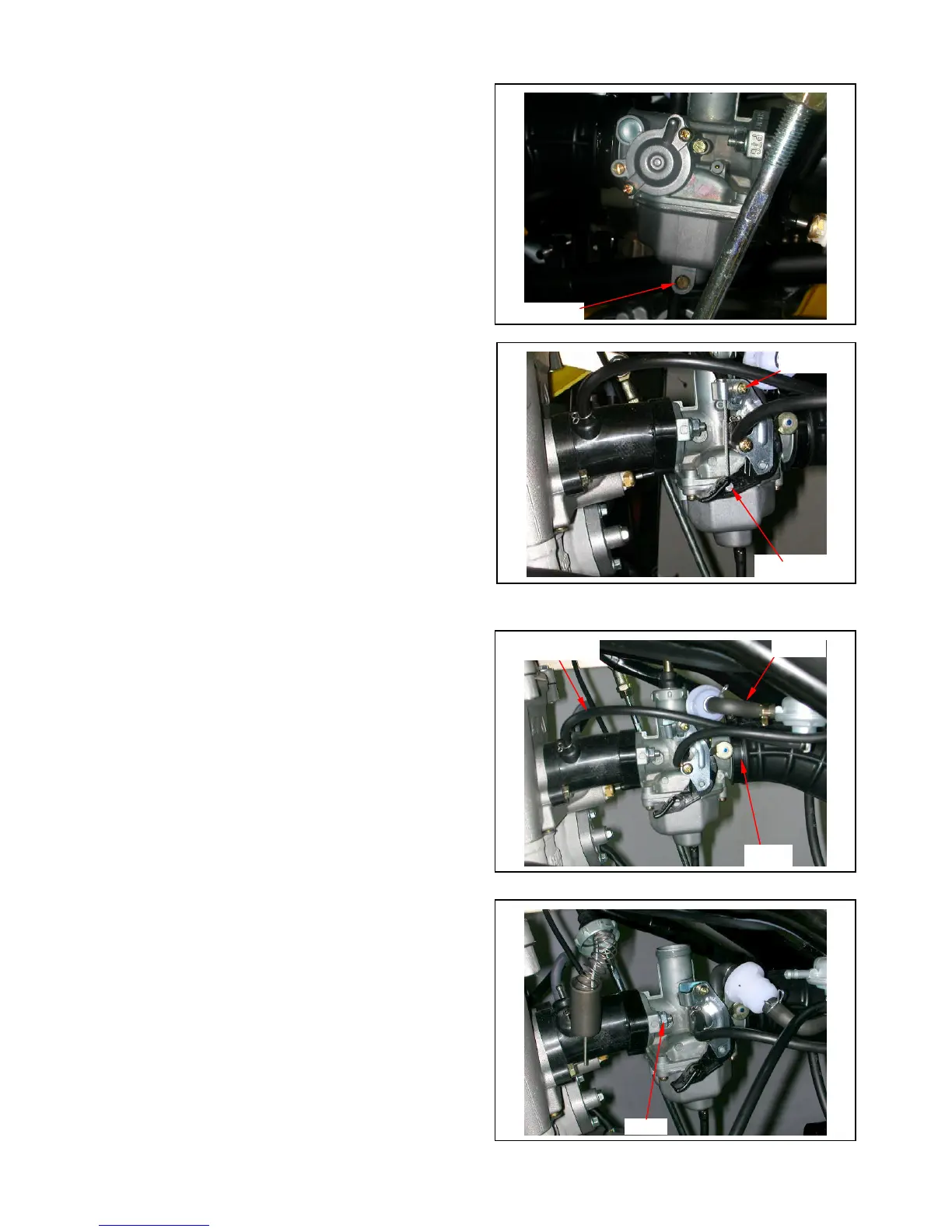

5-4 Carburetor Remove / Install
Removal
Drain out fuel in the float chamber.
Loosen the choke cable fixed iron sheet screw from
plate.
Remove the choke cable.
Disconnect the fuel hose.
Release the clamp strip of air cleaner.
Remove the carburetor upper parts from the
carburetor.
Release the 2 nuts of carburetor insulator, and then
remove the carburetor.
Installation
Install in reverse order of removal procedures.
Drain bolt
1 screw
Choke cable
Fuel pipe
Vacuum pipe
Clamp
2 nuts
