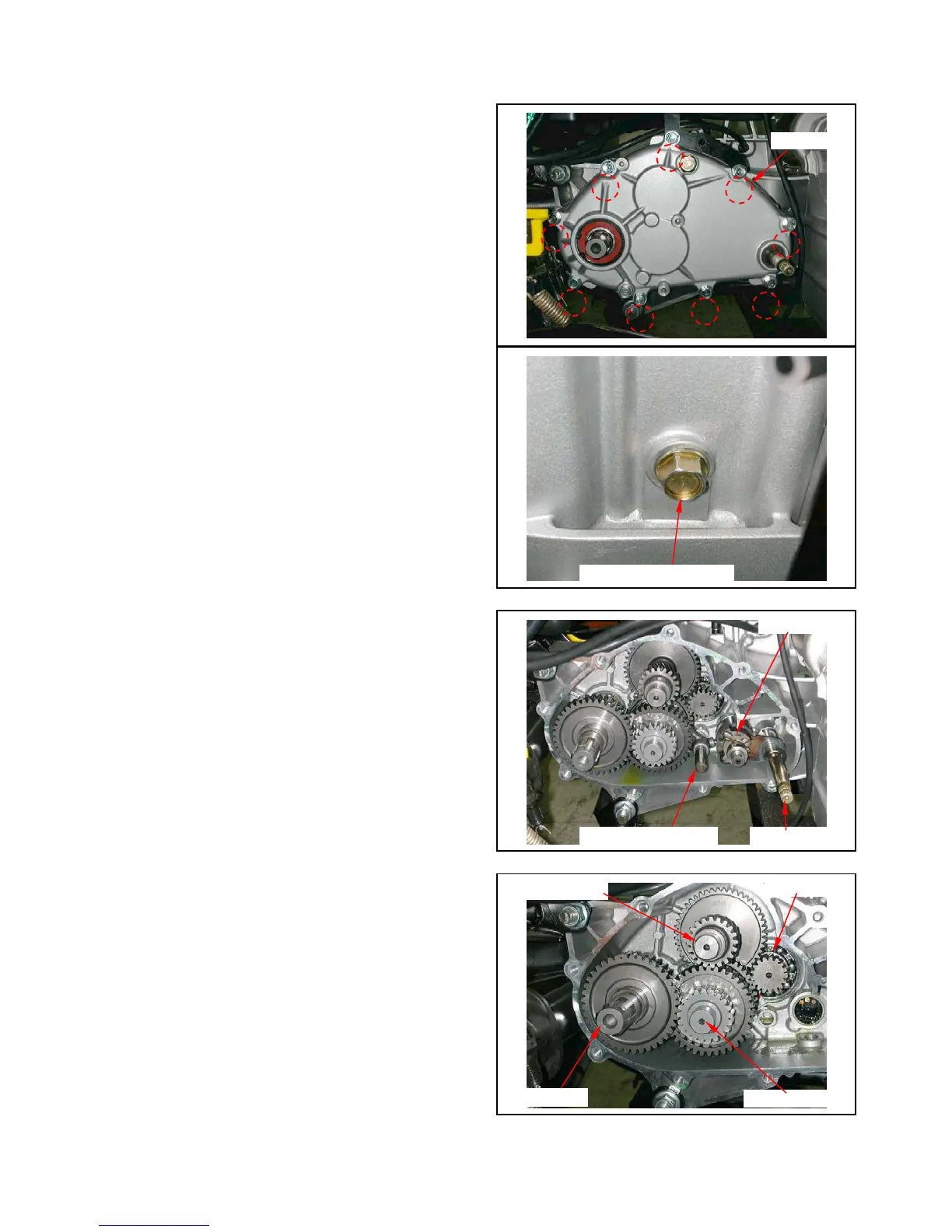

Remove gear box cover bolts (9 bolts) and then
remove the cover.
Remove shift drum catch ball, spring and bolt.
Remove shift spindle, shift fork shaft, shift fork
and shift drum.
Remove final shaft, counter shaft and reverse shaft.
9 bolts
Shift drum fixed catch bolt
Shift drum
Shift spindle
Shift fork shaft and fork
Reverse shaft
Counter shaft
Final shaft
Drive shaft
