Lamp and Grill Replacement - 35
Replacing Entry Lamps
Above the doors are two small fluorescent lamps
to illuminate the inside of the booth when the tan-
ning lamps are off. To access these lamps you
must first remove the Dome. Follow these direc-
tions carefully.
Unscrew the four screws on the back of the
Dome. Lift the back of the Dome, shift it forward
and remove it.

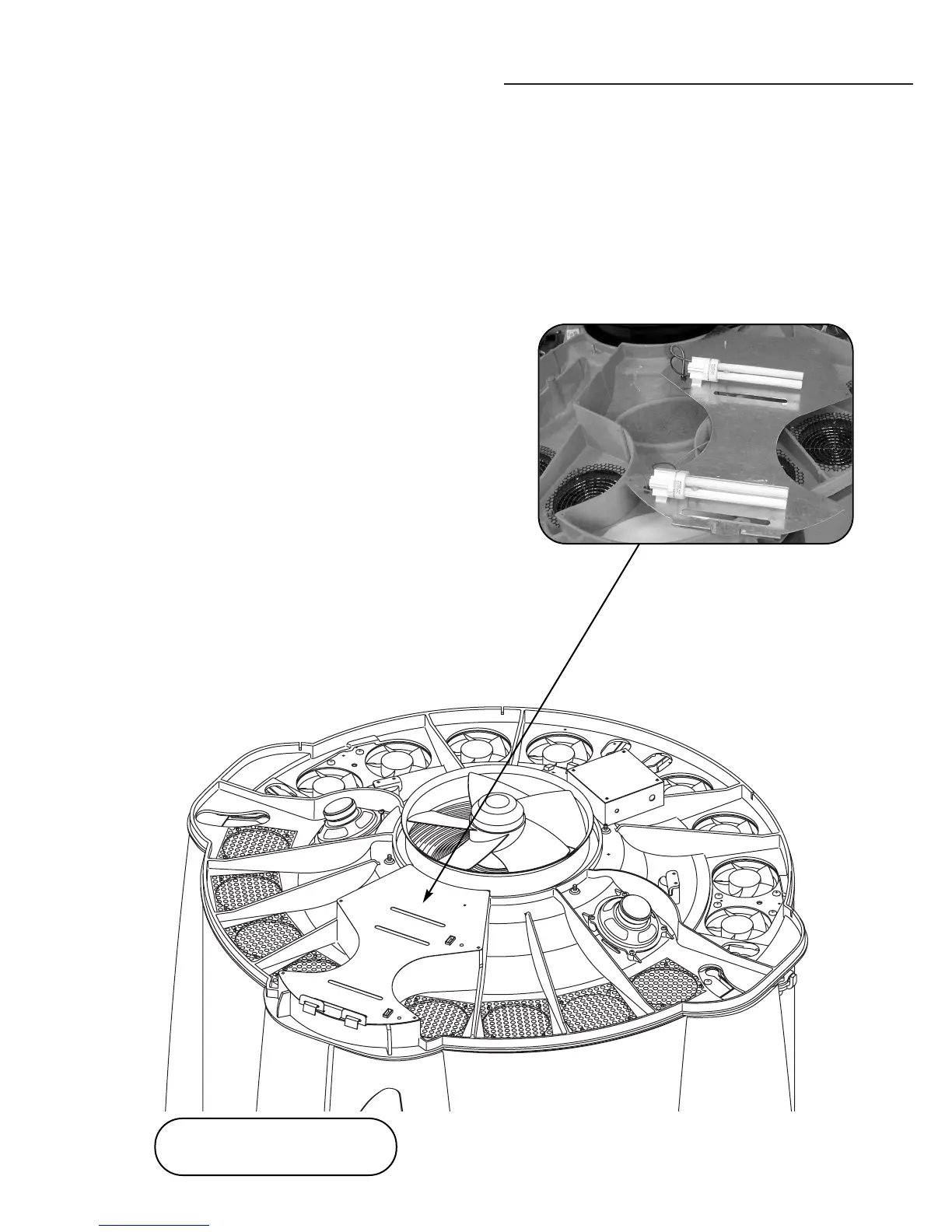

On the front of the ceiling assembly is an oddly
shaped metal panel (see below). Four screws hold
it in place. Remove the screws and carefully lift
the panel. Be careful not to pull on the wires run-
ning through the panel. Turn it over to reveal the
lamps (right).
Grasp the lamp by its base, not the lamp glass,
and pull it straight out of the lamp holder. Replace
the lamp by lining up the pins on its base with the
lamp holder and pressing it firmly into place.
Reverse the above directions to reassemble the
Dome.
Replace with Philips Alto PL-C 26W/35/2P or
equivalent.
NOTE: Wiring deleted from
illustration for clarity.
