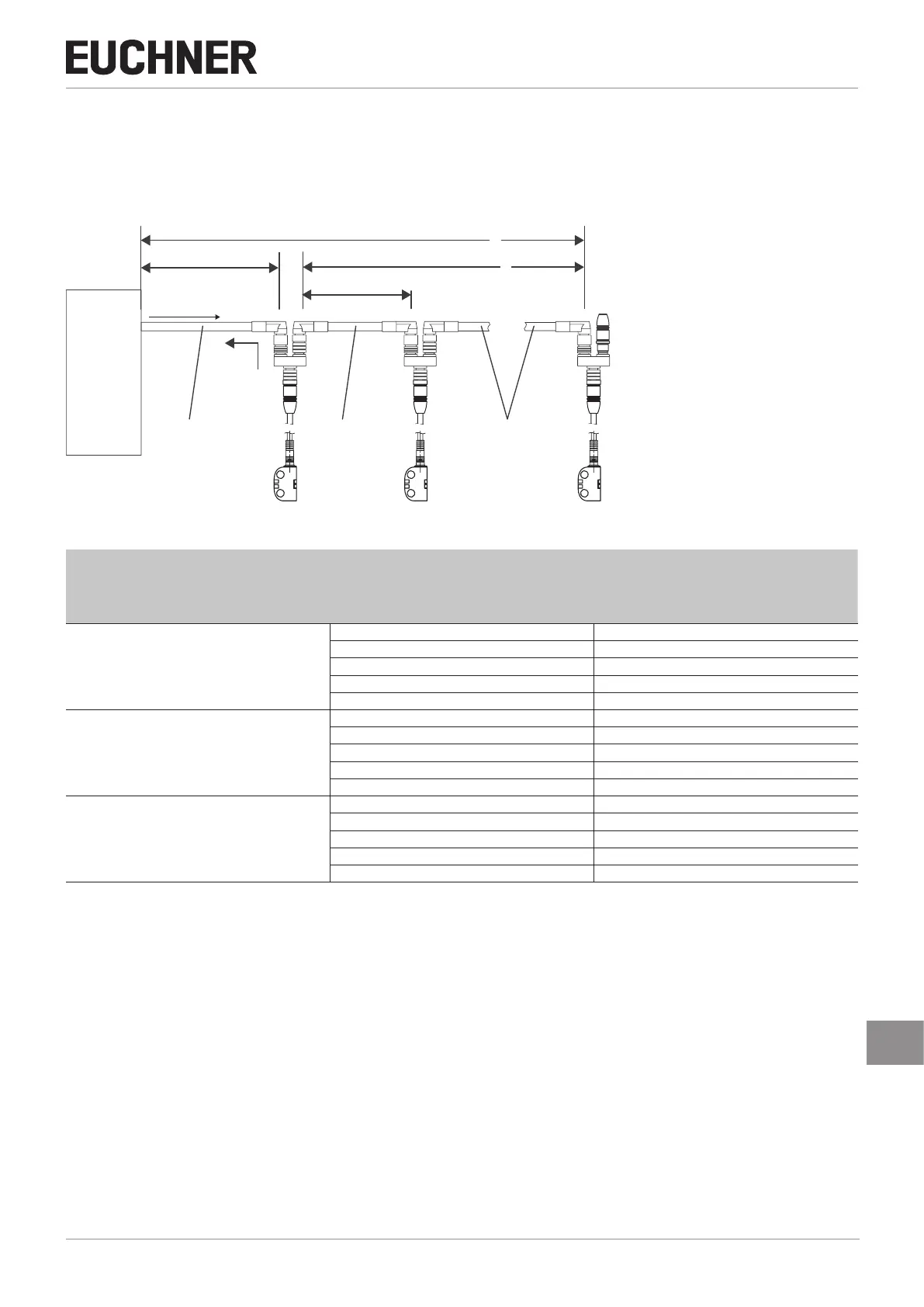

8.5. Maximum cable lengths
Switch chains are permitted up to a maximum overall cable length of 200m taking into account the voltage drop as a result
of the cable resistance (see table below with example data and case example). The cable length between two switches is
limited to 100m.
SPS
PLC
l
1
l
2
l
max
=200 m
l
n
u
min
= 24 V
5 x 0,34 mm
2
5 x 0,34 mm
2
5 x 0,34 mm
2
CES-I-BR # n CES-I-BR # n-1 CES-I-BR # 1
i
out
n
Max. number of switches
I
OD
(mA)
Possible output current per channel FO1A/FO1B
l
1
(m)
Max. cable length from the last switch to the
control system
0.34 mm²
5
10 100
25 100
50 80
100 50
200 25
6
10 100
25 90
50 70
100 50
200 25
10
10 70
25 60
50 50
100 35
200 20
Contact EUCHNER in the following cases:
Ì If you connect more than 10 switches in series.
Ì If you plan to use a different cable design (cross-section, material, etc.).
