15
2510145-02-07/18 (translation of the original operating instructions)
Operating Instructions
Non-Contact Safety Switch CES-I-BR-.-C07-…
EN
8.8. Connection of a single BR device
If a single BR device is used, connect the device as shown in Figure 3. Monitoring outputs can be routed to a control system.
WARNING
If there is a mistake, loss of the safety function due to incorrect connection.
Ì To ensure safety, both safety outputs (FO1A and FO1B) must always be evaluated.
Important!
The example shows only an excerpt that is relevant for connection of the CES system. The example
illustrated here does not show complete system planning. The user is responsible for safe integration
into the overall system. Detailed application examples can be found at www.euchner.com. Simply
enter the order number in the search box. All available connection examples for the device can be
found in “Downloads.”
Safety
Outputs
Monitoring
Output
Read Head
Safety Inputs
Connected
load
GND
-F1
+UB
2
FI1A
6
FI1B
1
0V
7
OD/C
5
FO1A
3
FO1B
4
nc
8
CES

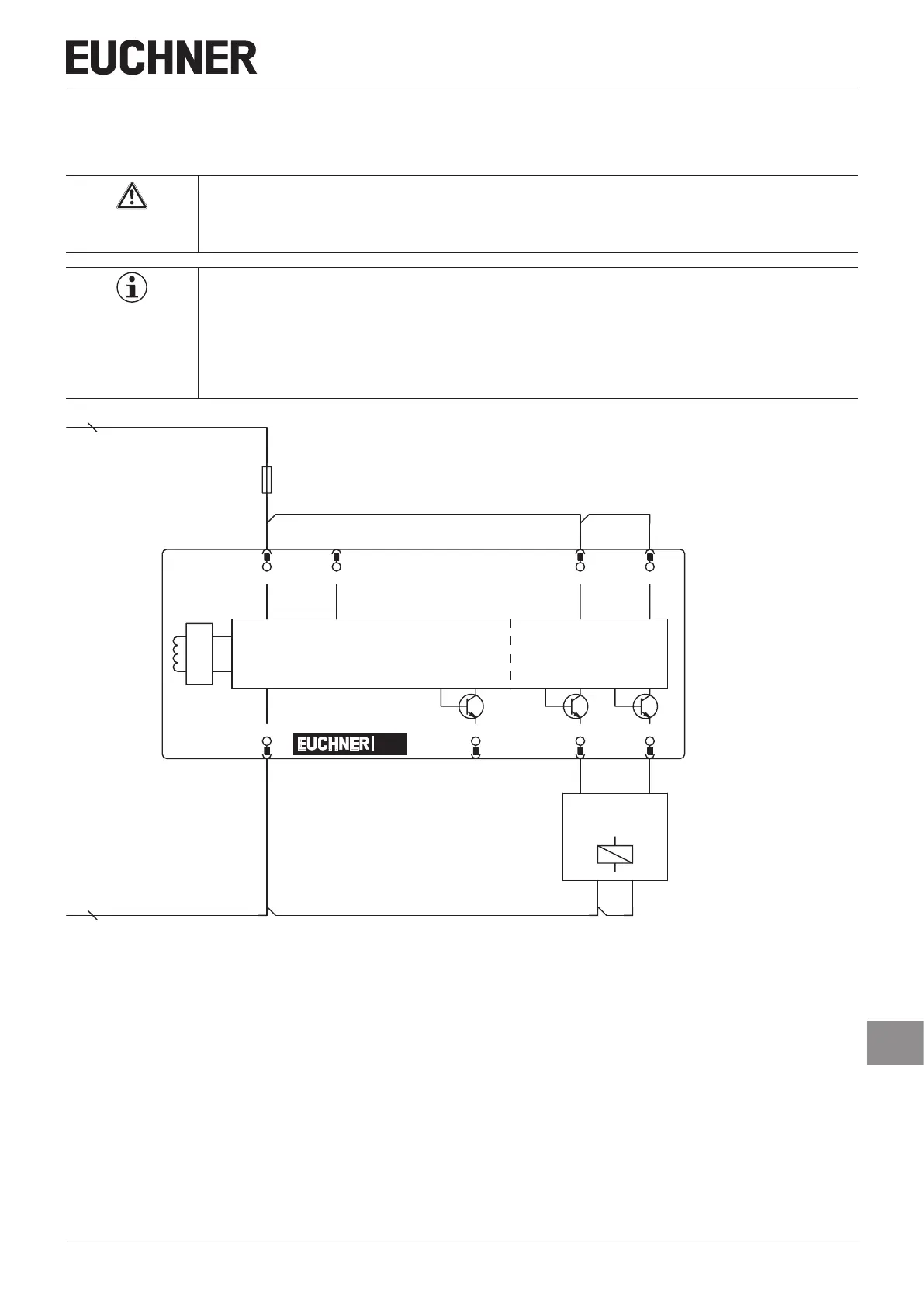

Figure 3: Connection example for separate operation of a CES-I-BR-…
