EUCHNER CES-I-BR Series User Manual

Operating Instructions
Non-Contact Safety Switch CES-I-BR-.-C07-…
28
(translation of the original operating instructions) 2510145-02-07/18

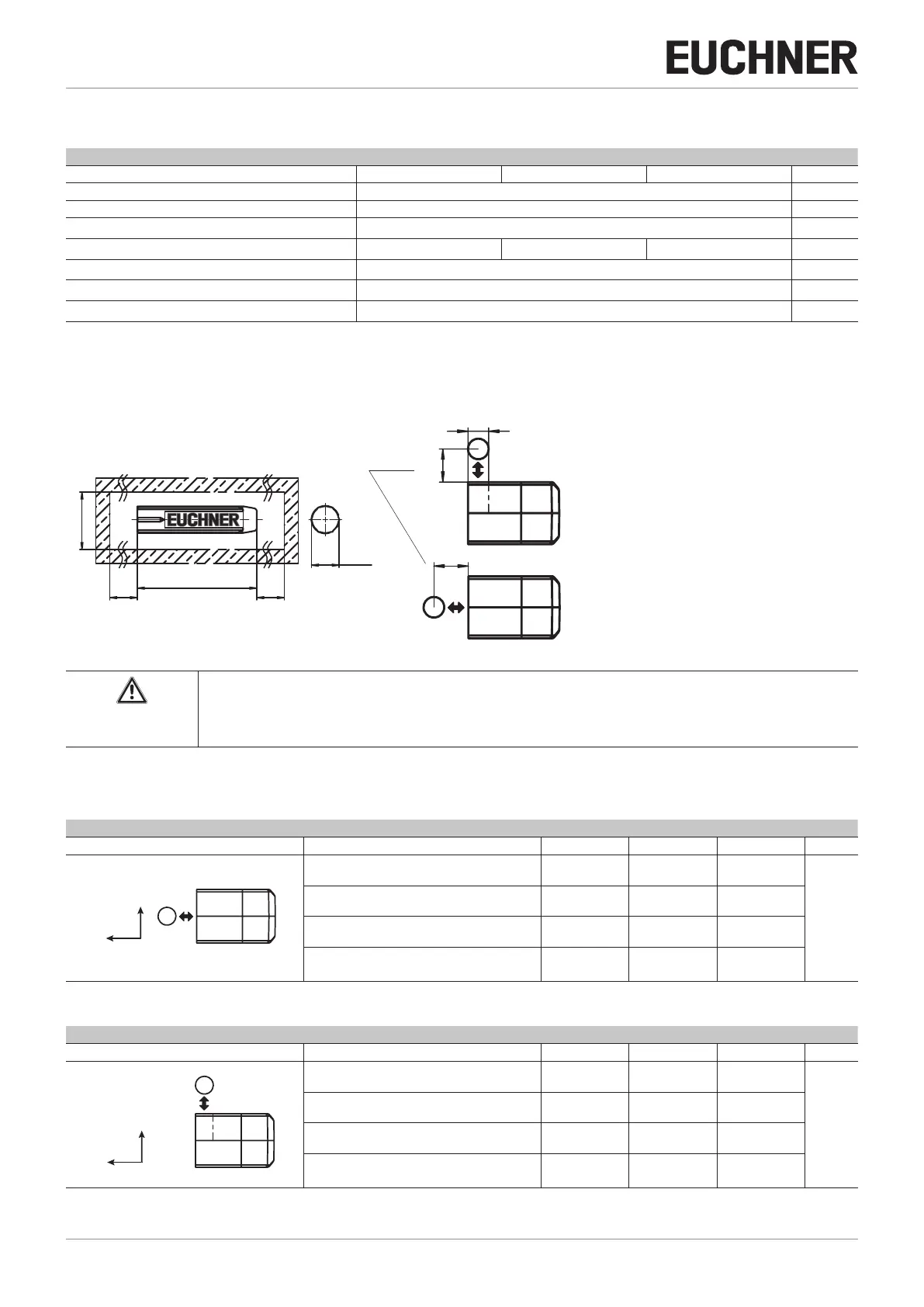

11.3. Technical data of actuator CES-A-BDN-06-158210
Parameter Value Unit
min. typ. max.
Housing material Macromelt PA-based plastic
Dimensions 26 x ∅ 6 mm
Weight
0.005
kg
Ambient temperature - 40 - + 70 °C
Degree of protection acc. to ENIEC60529 IP 65/IP 67/IP 69/IP 69K
1)
Installation position Active face opposite read head
Power supply Inductive via read head
1) With ush installation
11.3.1. Dimension drawing
Installation options
26
0
+ 0,5
Ø
30
* min.
30 * 30 *
6,1
0
+
0,1
6
* Metal-free zone
Operating distance
Approach
direction
CAUTION
Ì Do not mount at temperatures below 0 °C.
Ì The actuator can be damaged during mounting.
11.3.2. Switching distances
Operating distance for center offset m = 0
Approach direction Parameter Value Unit
A min. typ. max.
z
x
Switch-on distance - 16 -
mm
Assured switch-on distance s
ao
1)
13 - -
Switching hysteresis
1)
1 2 -
Assured switch-off distance s
ar
- in x direction - - 24
1) The values apply to surface installation of the actuator
Approach direction Parameter Value Unit
C min. typ. max.
z
x
Switch-on distance - 11 -
mm
Assured switch-on distance s
ao
1)
6 - -
Switching hysteresis
1)
1 2 -
Assured switch-off distance s
ar
- in x direction -
- 21
1) The values apply to surface installation of the actuator
