EUCHNER CES-I-BR Series User Manual

13
2510145-02-07/18 (translation of the original operating instructions)
Operating Instructions
Non-Contact Safety Switch CES-I-BR-.-C07-…
EN

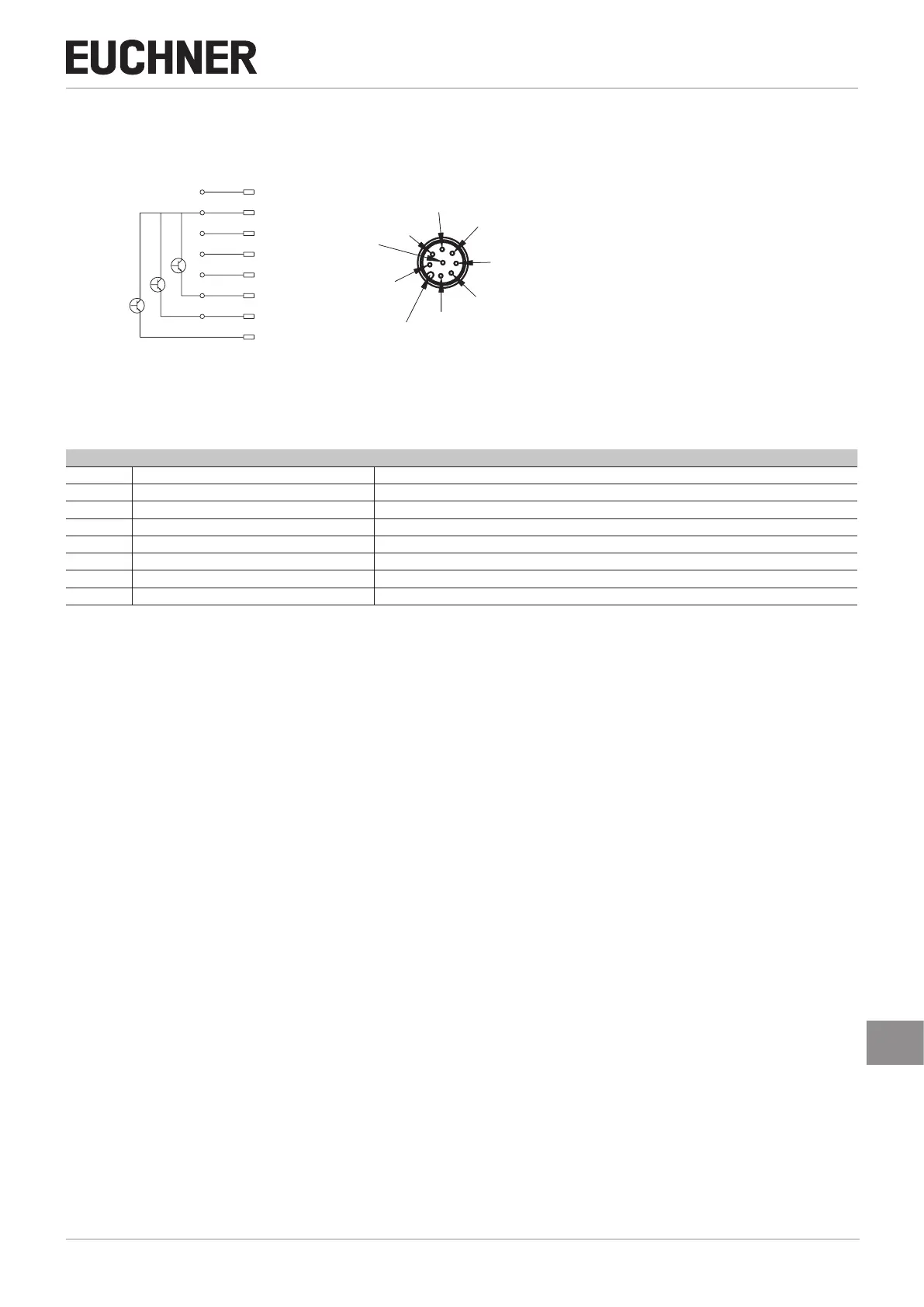

8.6. Pin assignment of safety switch CES-I-BR
coding lug
1
7
6
5
4
3
2
8
8
2
7
6
1
3
4
5
UB
0V
FI1A
FI1B
FO1A
FO1B
OD/C
nc
View of connection side on the safety switch
Figure 2: Pin assignment of safety switch CES-I-BR
Pin Designation Description
1 FI1B Enable input for channel 2
2 UB Power supply, DC 24 V
3 FO1A Safety output, channel 1
4 FO1B Safety output, channel 2
5
OD/C
Monitoring output/communication
6
FI1A Enable input for channel 1
7 0V Ground, DC 0 V
8 nc n.c.
