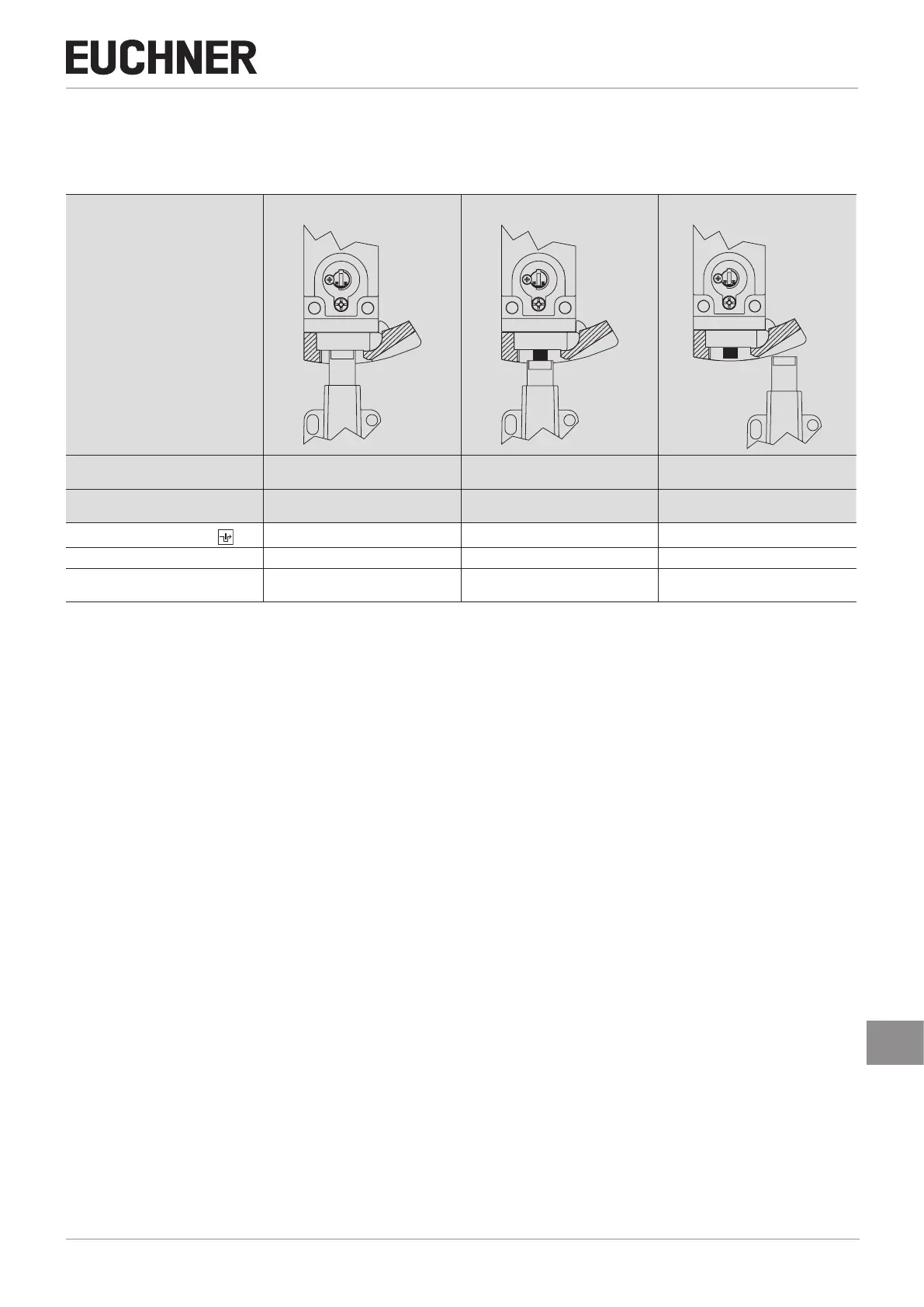

6.8. Switching states
The detailed switching states for your switch can be found in the system status table. All safety outputs, monitoring outputs
and LED displays are described there.
Guard closed and locked Guard closed and not locked Guard open
Voltage at guard locking solenoid
CET1/3
off on (irrelevant)
Voltage at guard locking solenoid
CET2/4
on off (irrelevant)
Safety outputs OA and OB
on off off
Monitoring output OUT on off off
Door monitoring output OUT D
(only CET3 and CET4)
on on off
