EUCHNER CET-AR Series User Manual

41
2110788-13-03/20 (Translation of the original operating instructions)
Operating Instructions
Transponder-Coded Safety Switch CET.-AR-…
EN

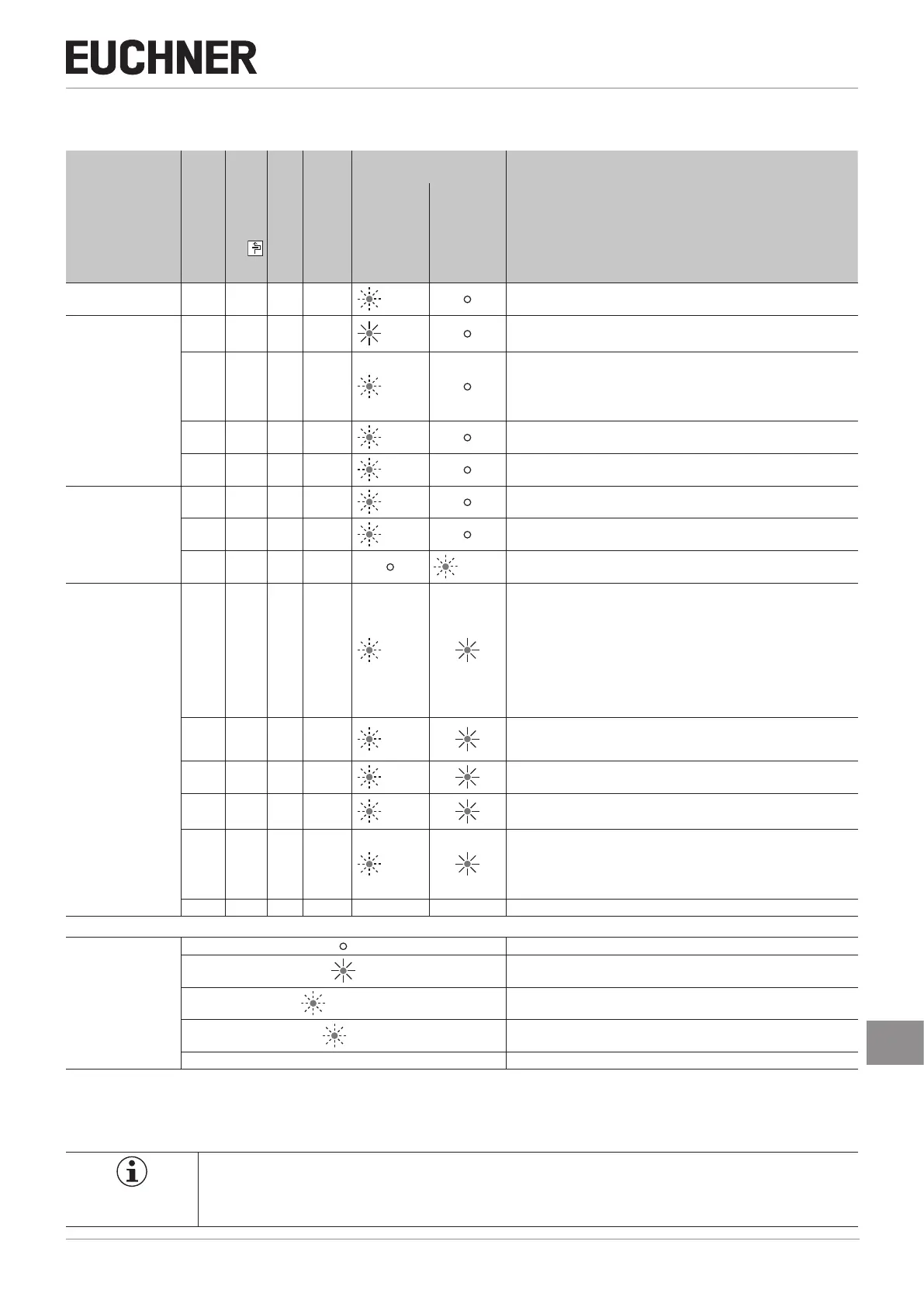

12. System status table
Operating mode
Actuator/door position Safety outputs OA and OB Monitoring output OUT Door monitoring output OUTD (only CET3 and CET4)
LED indicator
Output
State
STATE (green) DIA (red)
Self-test X off off off
10Hz
(10s)
Self-test after power-up
Normal operation
closed on on on Normal operation, door closed and locked
closed off on on
1 x in-
verse
Normal operation, door closed and locked, safety outputs not switched
because:
- Preceding device in the switch chain signals door open (only with series
connection)
- Feedback loop/start button not closed (if tted)
closed off off on 1 x Normal operation, door closed and not locked
open off off off 1 x Normal operation, door open
Teach-in operation
(only unicode)
open off off off 3 x
Door open; device is ready for teach-in for a new actuator
(only short time after power-up)
closed off off off 1Hz Teach-in operation
X off off off 1 x
Acknowledgment after successful teach-in operation (DIA ashes once, no
repetition)
Fault display
X off off off 1 x
Fault in teach-in operation (only unicode)
For autom. teach-in:
- Actuator removed from the actuating range prior to the end of the teach-
in operation
For teach-in input:
- Actuator removed from the actuating range prior to the end of the teach-
in operation
- Disabled actuator within the actuating range
- Most recently taught-in actuator within the actuating range
- No actuator detected after 3min.
X off off off 2 x
Input fault
(e.g. missing test pulses, illogical switch state from previous switch in the
switch chain)
X off off off 3 x Actuator faulty
X off off off 4 x
Output fault
(e.g. short circuit, loss of switching ability)
X off off off 5 x
Internal error, e.g.:
- Component faulty
- Data error
- Impermissible pulsing on U
B
- Voltage applied to the RST input for less than 3s
X off off off X X Internal error
Key to symbols
LED not illuminated
LED illuminated
10Hz (10s)
LED ashes for 10s at 10Hz
3 x
LED cyclically ashes three times
X Any state
After the cause has been remedied, faults can generally be reset by opening and closing the guard. If the fault is still dis-
played afterward, use the reset function or briey interrupt the power supply. Please contact the manufacturer if the fault
could not be reset after restarting.
Important!
If you do not nd the displayed device status in the system status table, this indicates an internal device
fault. In this case, you should contact the manufacturer.
