EUCHNER CET-AR Series - Technical Data for Actuator CET-A-B; Dimension Drawing for Actuator CET-A-BWK-50 X

Operating Instructions
Transponder-Coded Safety Switch CET.-AR-…
46
(Translation of the original operating instructions) 2110788-13-03/20
13.3. Technical data for actuator CET-A-B…
Parameter Value Unit
min. typ. max.
Housing material Stainless steel
Stroke, max. 15 mm
Weight
0.25
kg
Ambient temperature - 20 - + 55 °C
Degree of protection IP67 (transponder protection)
Mechanical life 1 x 10
6
operating cycles
Locking force, max. 6,500 N
Installation orientation Active face opposite switch head
Power supply
Inductive via switch

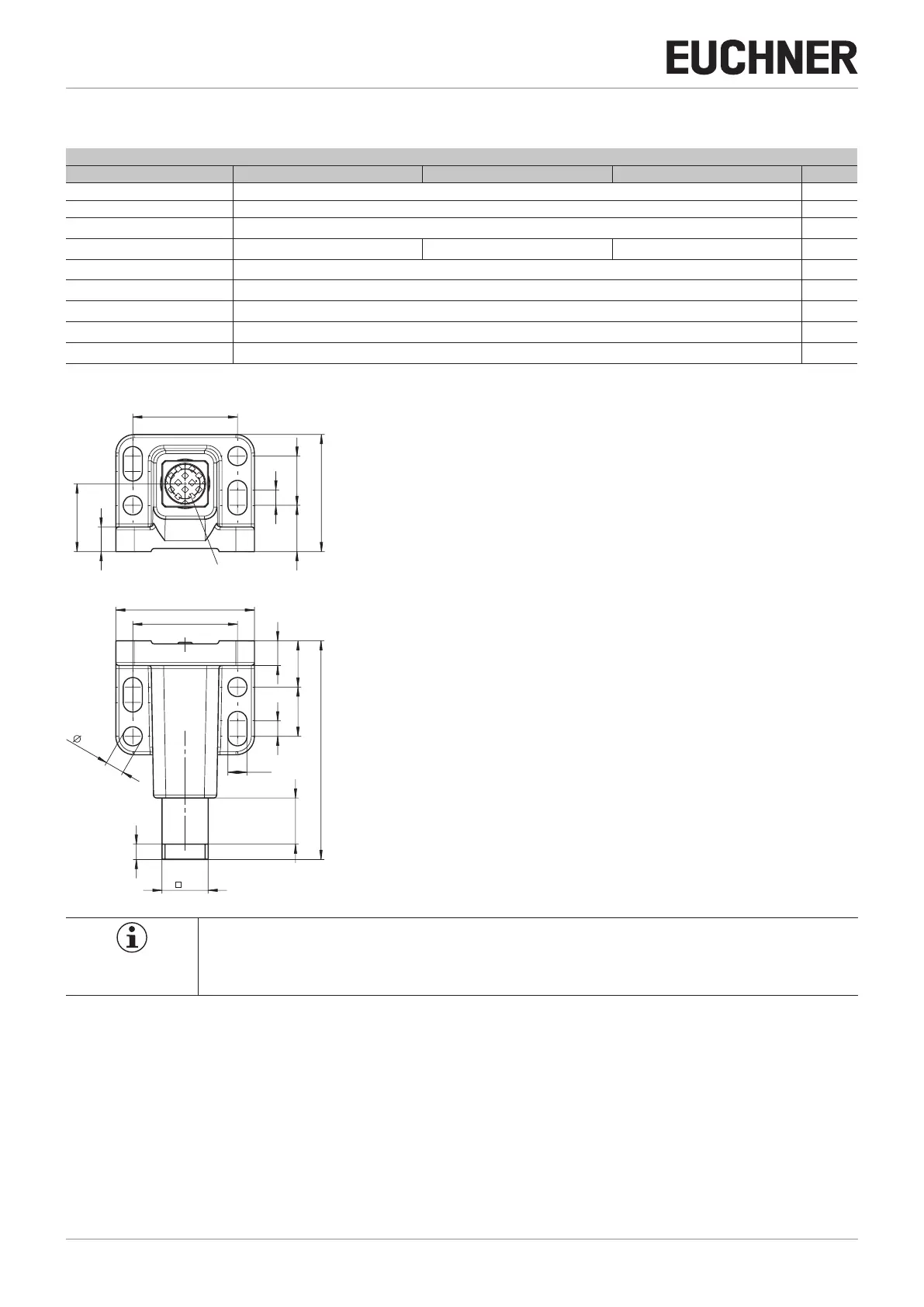

13.3.1. Dimension drawing for actuator CET-A-BWK-50X
34
8
22
5
15 16
38
5
6,2
34
45
8
15 16
5
6,2
15
71
15
Hub/
Stroke
Active face
NOTICE
Ì Four safety screws M5 x16 are included with the actuator.
Ì All four safety screws must always be used.
