EUCHNER CET-AR Series - Page 45

45
2110788-13-03/20 (Translation of the original operating instructions)
Operating Instructions
Transponder-Coded Safety Switch CET.-AR-…
EN
Version with plug connector M23 (RC18)
42
30
24
M23x1
21,5

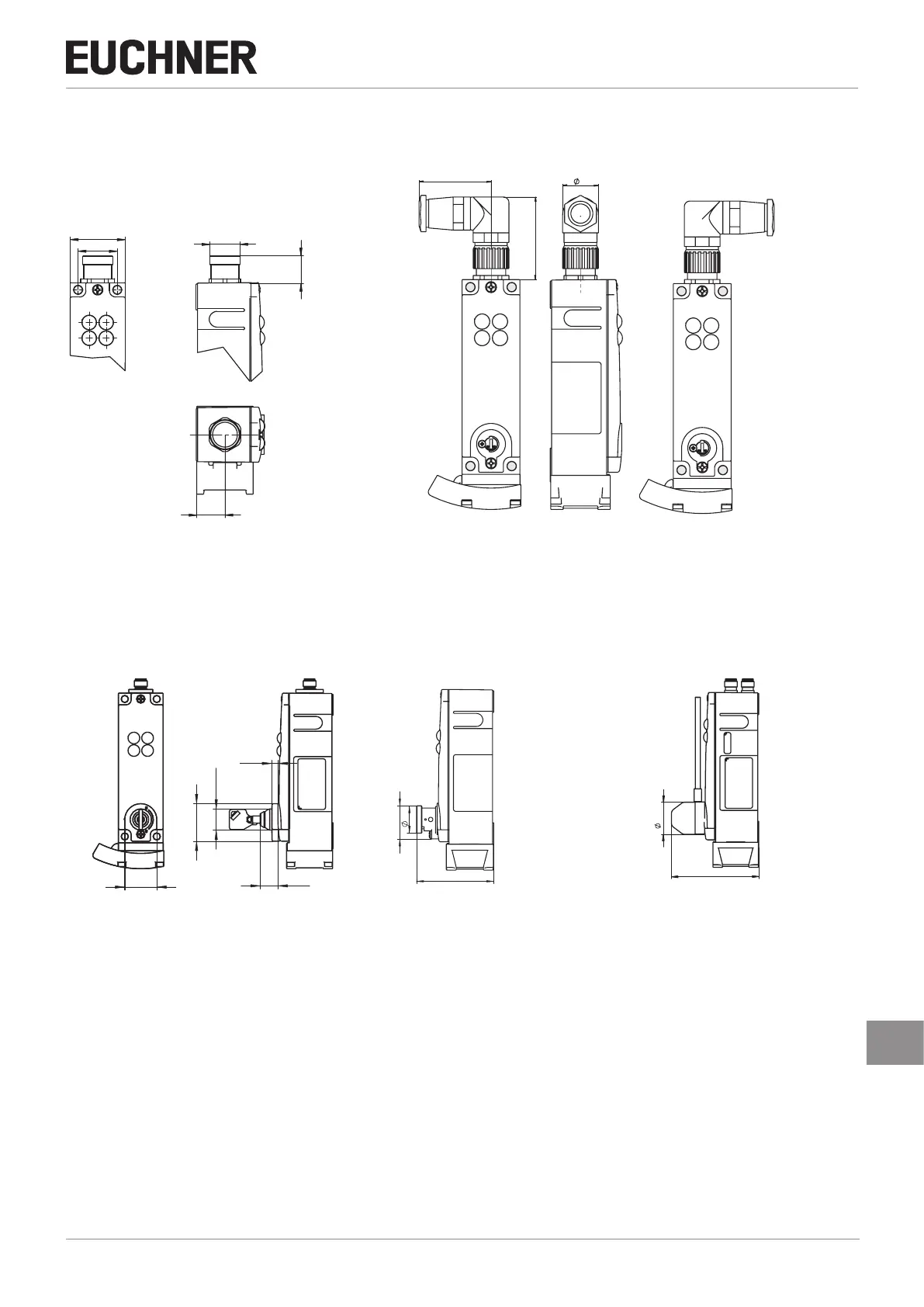

Dimensions with plug connector M23
62
52
26
Cable outlet left Cable outlet right
Versions with manual release options
L = 19 or 71mm
(depending on version)
With auxiliary key release
16,7
5,8
20
30
35,5
Ø
With emergency release
25
30,4
L
With wire front release
30,5
83
