EUCHNER CET-AR Series - Escape Release (Optional); Actuating Escape Release

Operating Instructions
Transponder-Coded Safety Switch CET.-AR-…
14
(Translation of the original operating instructions) 2110788-13-03/20

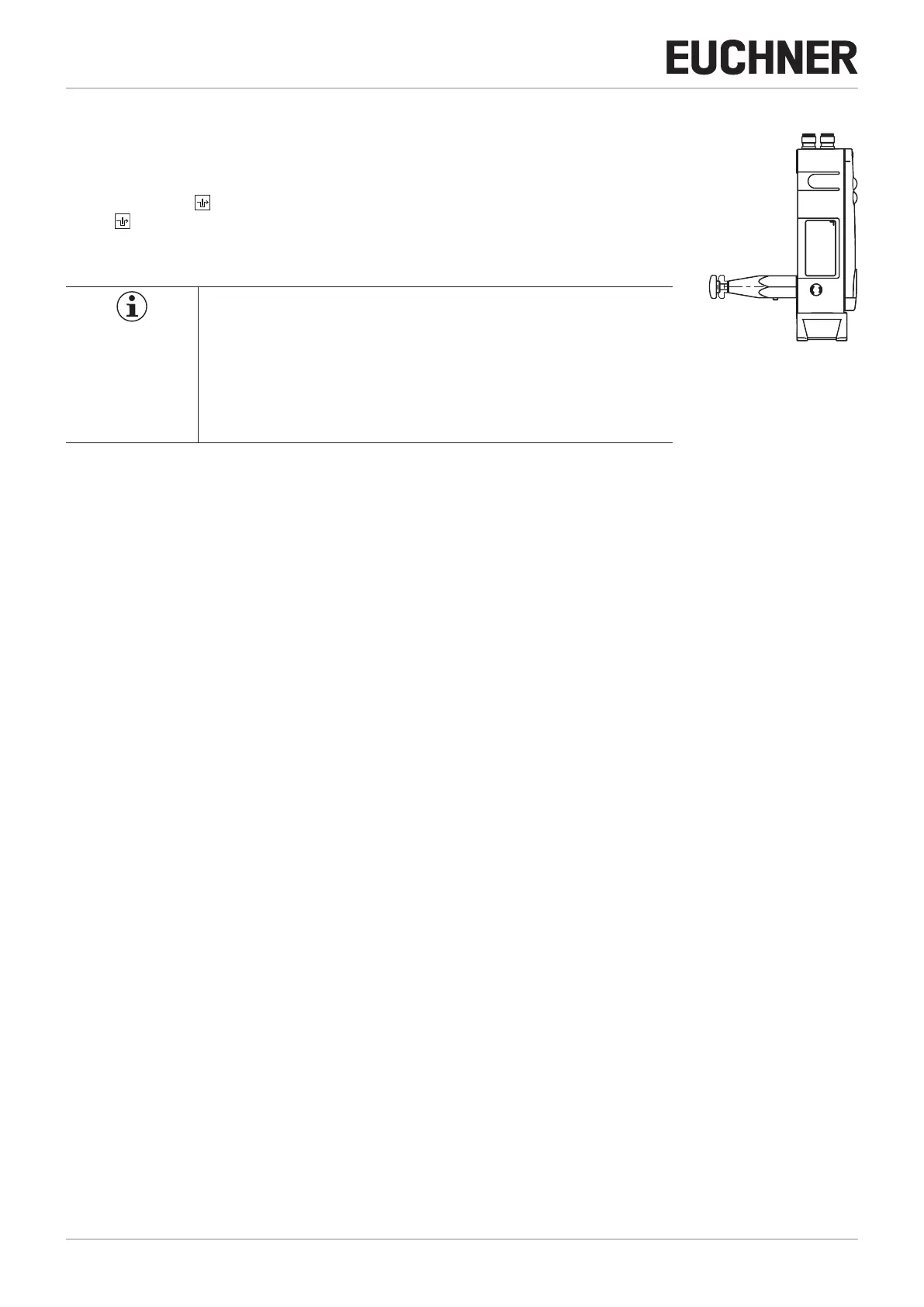

7.3. Escape release (optional)
Permits opening of a locked guard from the danger zone without tools (see chapter 13.2. Di‑
mension drawing for safety switch CET.‑AR‑… on page 44).
The safety outputs are switched off when the escape release is actuated. Use the safety
outputs to generate a stop command.
The monitoring output OUT is switched off; OUTD can assume an undened state. Open the guard
and close it again after resetting the escape release. The device will then operate normally again.
Important!
Ì It must be possible to actuate the escape release manually from in-
side the protected area without tools.
Ì It must not be possible to reach the escape release from the outside.
Ì The actuator must not be under tensile stress during manual release.
Ì The escape release meets the requirements of Category B according
to ENISO13849-1:2015.
7.3.1. Actuating escape release
Press the red release knob to the stop.
¨ Guard locking is released.
Pull the knob out again to reset.
