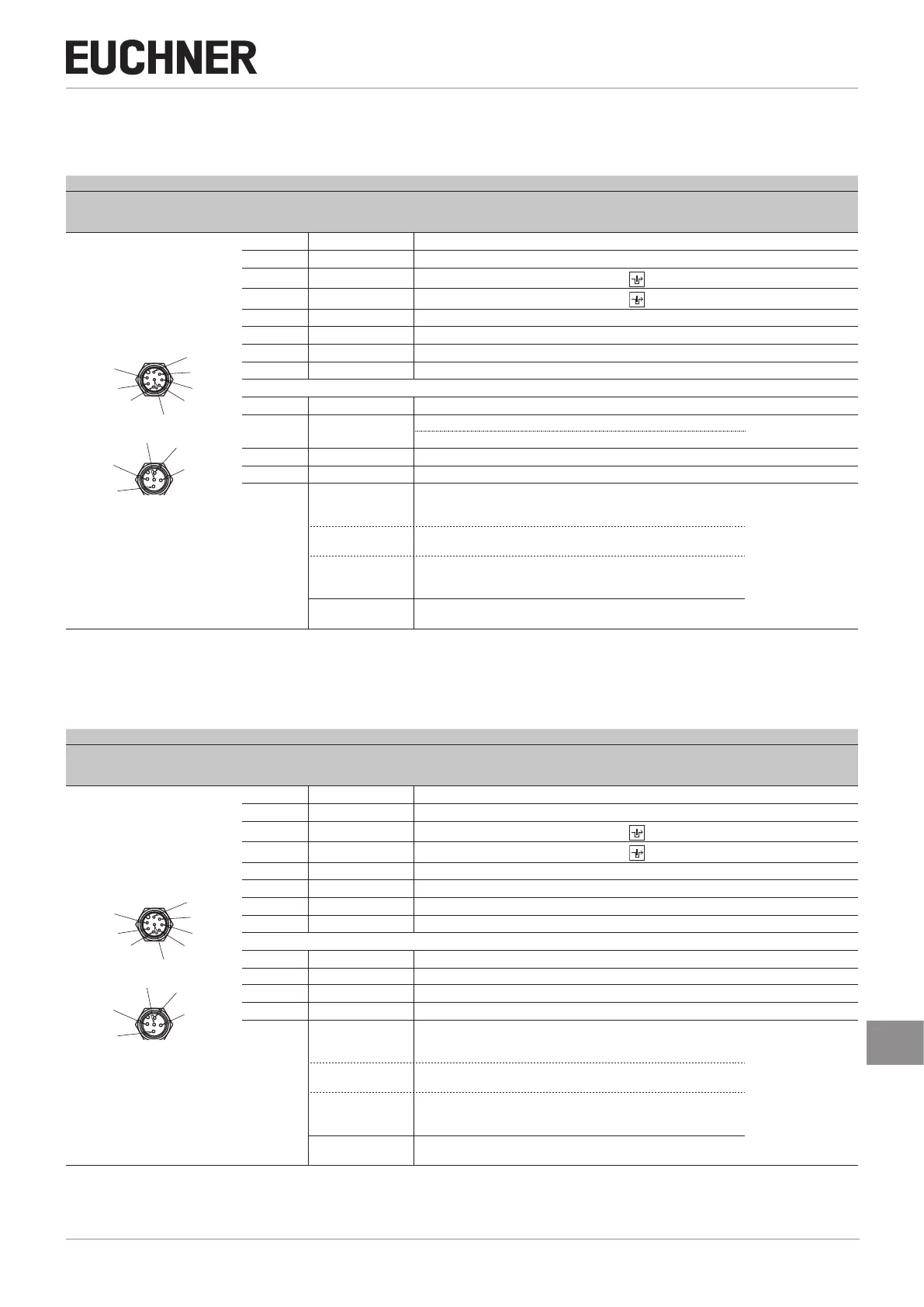

10.6. Connector assignment for safety switch CET-AR with plug connectors 2 x M12
10.6.1. Version without door monitoring output (CET1/2)
Wiring diagram A
Plug connector
(view of connection side)
Pin Designation Function
Conductor coloring
of connecting ca-
ble
1)
2 x M12
X2.5
X1.8
X1.5
X1.6
X1.7
X1.2
X2.4
X2.3
X2.1
X2.2
X1.4
X1.3
X1.1
X 1.1 IB Enable input for channel B WH
X 1.2 U
B
Operating voltage of AR electronics, 24VDC BN
X 1.3 OA
Safety output channel A
GN
X 1.4 OB
Safety output channel B
YE
X 1.5 OUT Monitoring output GY
X 1.6 IA Enable input for channel A PK
X 1.7 0V U
B
Operating voltage of AR electronics, 0V BU
X 1.8 RST Reset input RD
X 2.1 0V U
CM
Operating voltage of guard locking solenoid, 0V BN
X 2.2 LED 1
LED 1 red, freely congurable, 24VDC
WH
LED 1 red, solenoid energized
3)
X 2.3 LED 2 LED 2 green, freely congurable, 24VDC BU
X 2.4 U
CM
Operating voltage of guard locking solenoid, 24VDC BK
X 2.5
J
Version with teach-in input:
To teach-in a new actuator, connect to 24VDC; leave open in normal
operation.
2)
GY
Y
Version with feedback loop:
If the feedback loop is not used, connect to 24VDC.
FE
Function earth
Version without feedback loop and without teach-in input:
This connection must be connected to 0V.
3)
-
Version without feedback loop and without teach-in input:
This connection must be connected to 0V.
1) Only for standard EUCHNER connecting cable.
2) With dual-channel solenoid control, do not connect to 0VU
B
.
3) Only for ID no. 109015
10.6.2. Version with door monitoring output (CET3/4)
Wiring diagram B
Plug connector
(view of connection side)
Pin Designation Function
Conductor coloring
of connecting ca-
ble
1)
2 x M12
X2.5
X1.8
X1.5
X1.6
X1.7
X1.2
X2.4
X2.3
X2.1
X2.2
X1.4
X1.3
X1.1
X 1.1 IB Enable input for channel B WH
X 1.2 U
B
Operating voltage of AR electronics, 24VDC BN
X 1.3 OA
Safety output channel A
GN
X 1.4 OB
Safety output channel B
YE
X 1.5 OUT Monitoring output GY
X 1.6 IA Enable input for channel A PK
X 1.7 0V U
B
Operating voltage of AR electronics, 0V BU
X 1.8 RST Reset input RD
X 2.1 0V U
CM
Operating voltage of guard locking solenoid, 0V BN
X 2.2 OUTD Door monitoring output (indication on LED 2) WH
X 2.3 LED 1 LED 1 red, freely congurable, 24VDC BU
X 2.4 U
CM
Operating voltage of guard locking solenoid, 24VDC BK
X 2.5
J
Version with teach-in input:
To teach-in a new actuator, connect to 24VDC; leave open in normal
operation.
2)
GY
Y
Version with feedback loop:
If the feedback loop is not used, connect to 24VDC.
FE
Function earth
Version without feedback loop and without teach-in input:
This connection must be connected to 0V.
-
Version without feedback loop and without teach-in input:
This connection must be connected to 0V.
1) Only for standard EUCHNER connecting cable.
2) With dual-channel solenoid control, do not connect to 0VU
B
