2110788-13-03/20 (Translation of the original operating instructions)
Operating Instructions
Transponder-Coded Safety Switch CET.-AR-…
EN
Note the following points:

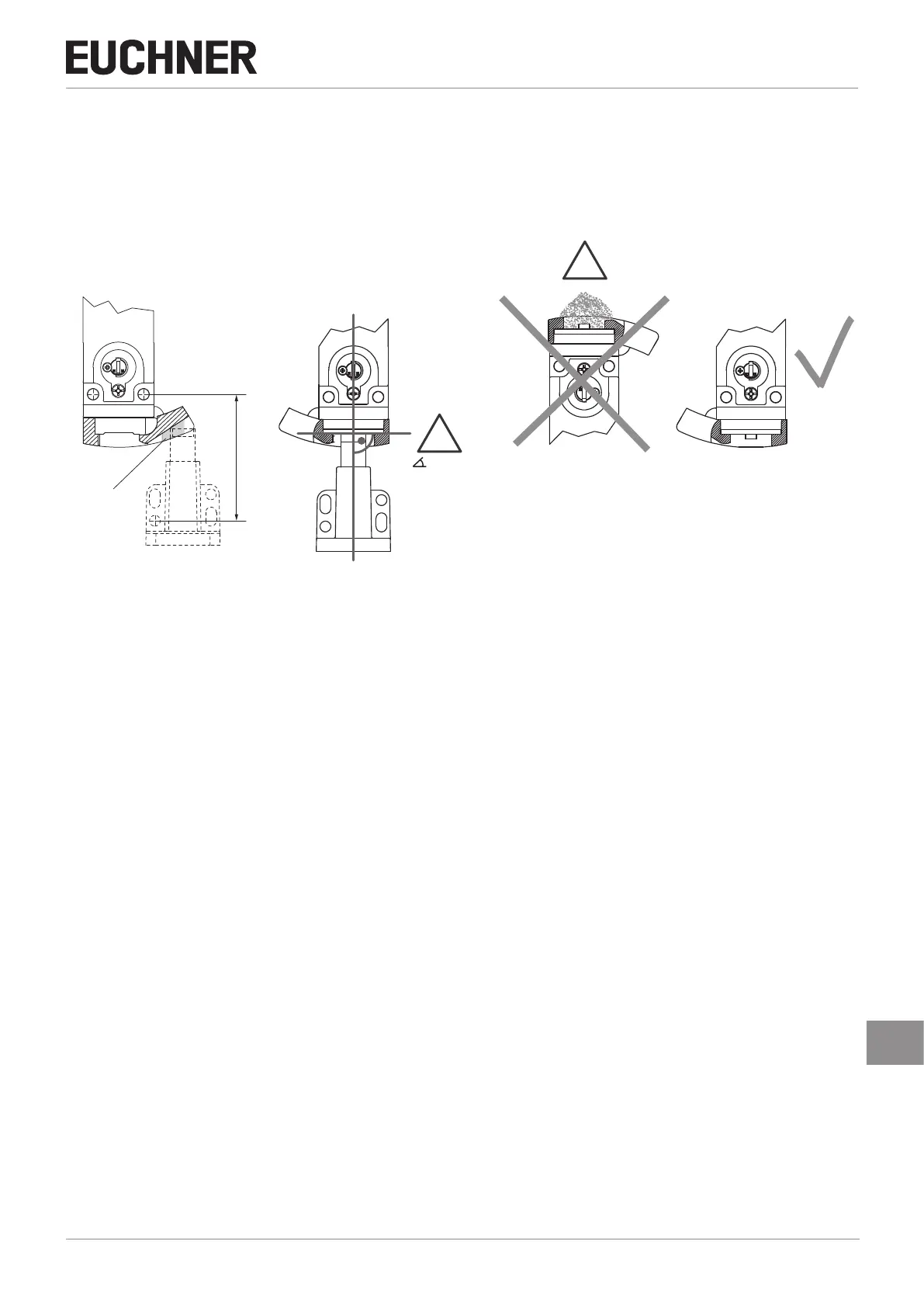

Actuator and safety switch must be tted so that
Ì the active faces of the actuator and the safety switch are parallel with each other.
Ì the actuator is fully inserted into the switch recess when the guard is closed.
Ì no dirt can accumulate in the recess.
Approach zone
!
!
= 90°
74,5 ± 4 mm
