EVAstream Electrical connections - PCB Settings EVAstream Electrical connections - PCB Settingswww.evaoptic.com6 7
3.3 Connections
3.4 General specifications
L PEN
2
1
3

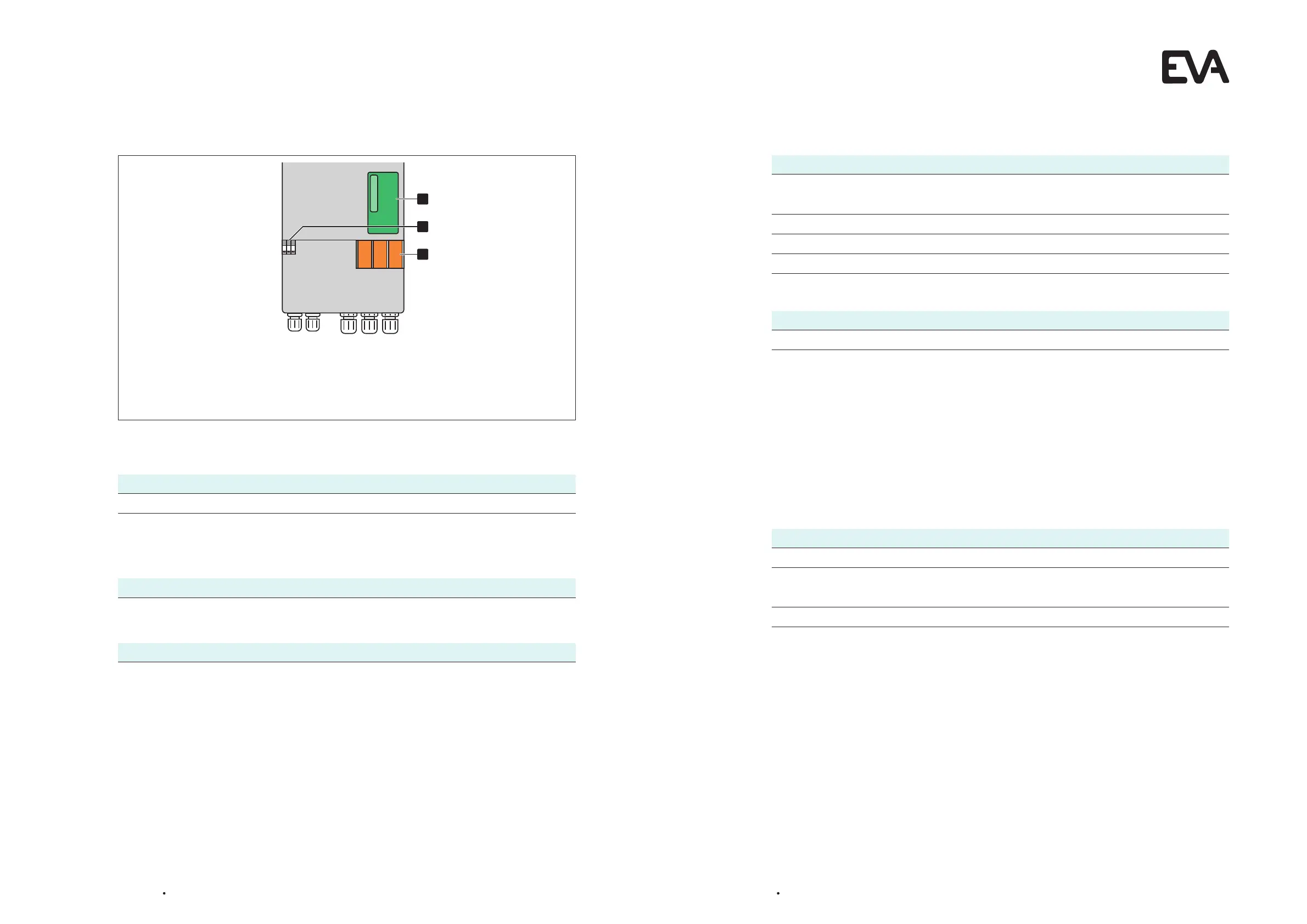

Connections in the motor control unit:
1. Control print (32 pins)
2. Power connection
3. EVAstream turbine connection
EVAstream
EVA Piezo
DMX
Power input 230 VAC; 10A
Cable motor 5 m, 16 mm2
Extend with max. 20 m using 25 mm2 cable
(Flexible cable of fine copper wire strands)
Cable 10m 7-wired aqua cable
Optional: 30m 7-wired aqua cable
Cable 2 wires > 0.22 mm2 + shield 110 Ohm
3.5 Electrical specifications
AC/DC Power Supply - INPUT FIT PRO MAX
Motor Control Unit FIT PRO MAX
AC/DC Power Supply - OUTPUT FIT PRO MAX
Protections
Short circuit, overload, over voltage, over temperature.
Safety standards
SELV, UL62368-1, CSA C22.2 No. 62368-1, TUV EN62368-1 + A11, EAC TP TC 004, BSMI CNS14336-1
approved, EN55032 (CISPR32) Class A/B, EN61000-3-2/3, EN61000-4-2/3/4/5/6/8/11, EN55024,
EN61204-3, EN61000-6-2, BSMI CNS13438.
Working temperature
Max. 32ºC, mount in a dry and condensation-free area.
Safety measures
EVA Torque control, Voltage/current control, Mosfet temperature control
Voltage range 180-264 Vac 180-264 Vac 180-264 Vac
254-370Vdc 254-370Vdc 254-370Vdc
Frequency range 47-63Hz 47-63Hz 47-63Hz
AC current (230VAC) 5.5A 9A 11A
Nominal power 1200VA 2000VA 2400VA
Power factor (type) >0.9 >0.9 >0.9
Control input DMX512 DMX512 DMX512
Motor PMSM 3xDC Output RPM range RPM range RPM range
10-100% 10-100% 10-100%
IP rating IP20 IP20 IP20
Dimensions housing 660x185x115 mm (cable gland on bottom)
DC bus voltage (stabilized) 26Vdc 28Vdc 28Vdc
DC bus current 46A 71A 86A
