EVAPCO LSTB Series - Part Identification Drawings; ICT 4ʼ Wide Towers

24
Operation and Maintenance Instructions
AT/USS 4’ WIDE TOWERS

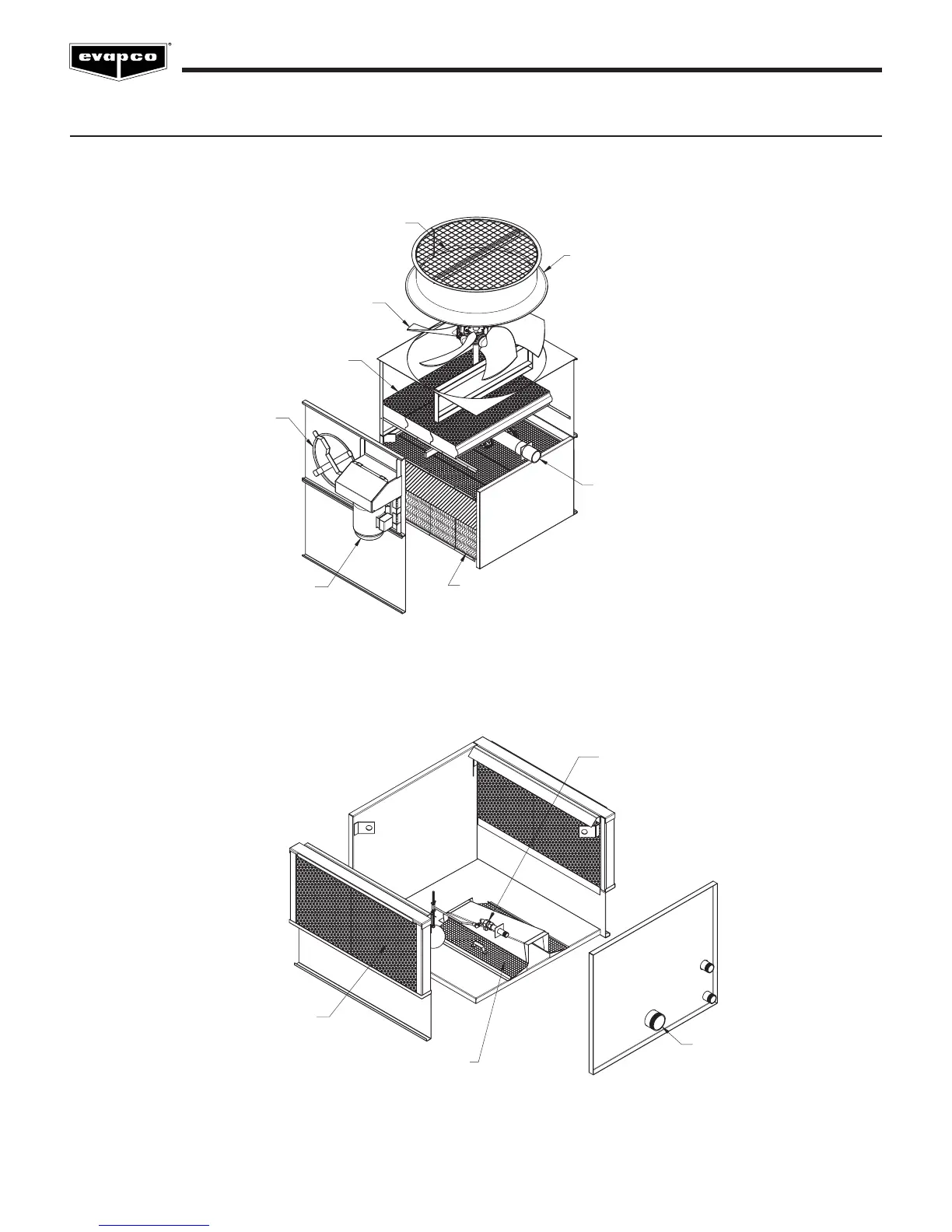

FAN & FILL CASING SECTION
PAN SECTION
FAN
FAN CYLINDER
DRIFT
ELIMINATORS
ACCESS DOOR
FAN MOTOR
FILL
WATER INLET
CONNECTION
FAN SCREEN
AIR INLET
LOUVER MEDIA
WATER OUTLET
CONNECTION
MAKE-UP VALVE WITH
ADJUSTABLE FLOAT
SUCTION HOOD & STRAINER
