Operation and Maintenance Instructions
LSTB Units

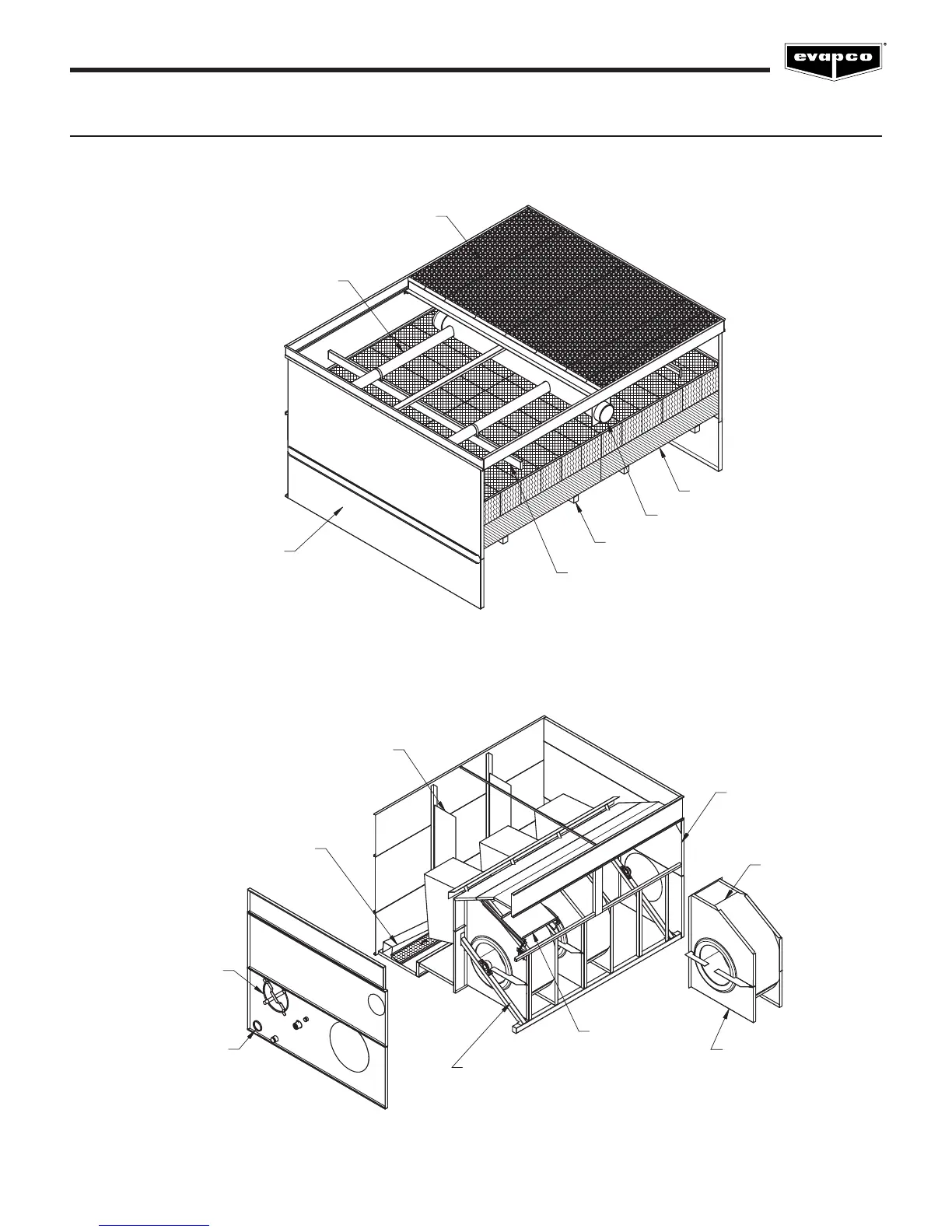

FILL CASING SECTION
FAN HOUSING
MIGRATION BAFFLE
ACCESS DOOR
BEARING SUPPORT
WRAPPER
MOTOR BASE
WATER OUTLET
CONNECTION
OUTLET HOOD & STRAINER
FAN SCREENS NOT
SHOWN FOR CLARITY
DRIFT ELIMINATORS
FILL
WATER DISTRIBUTION
SPRAY BRANCH
WATER INLET CONNECTION
CASING
FILL SUPPORT CHANNEL
WATER DISTRIBUTION
SPRAY BRANCH SUPPORT
PAN SECTION
