EVAPCO LSTB Series - LSTA 4ʼ Wide Units

36
Operation and Maintenance Instructions
LSTA – 4’ Wide Units

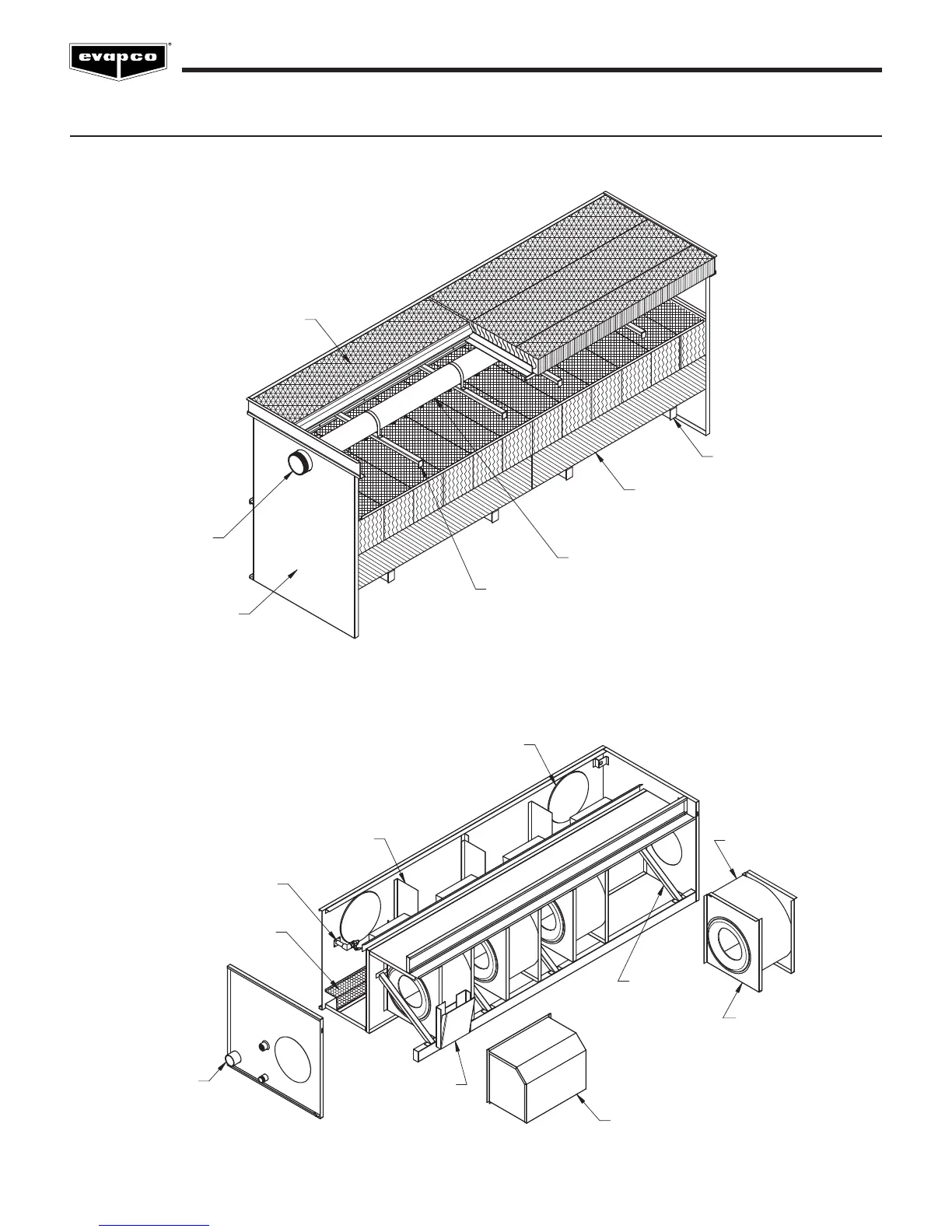

FILL CASING SECTION
DRIFT ELIMINATORS
FILL
WATER DISTRIBUTION
SPRAY BRANCH
WATER INLET
CONNECTION
CASING
FILL SUPPORT CHANNEL
WATER DISTRIBUTION
SPRAY BRANCH SUPPORT
MOTOR COVER
WRAPPER
FAN HOUSING
BEARING
SUPPORT
MIGRATION BAFFLE
ACCESS DOOR
MOTOR BASE
SUCTION STRAINER
MAKE-UP VALVE
WITH ADJUSTABLE FLOAT
WATER OUTLET
CONNECTION
PAN SECTION
