Notes:

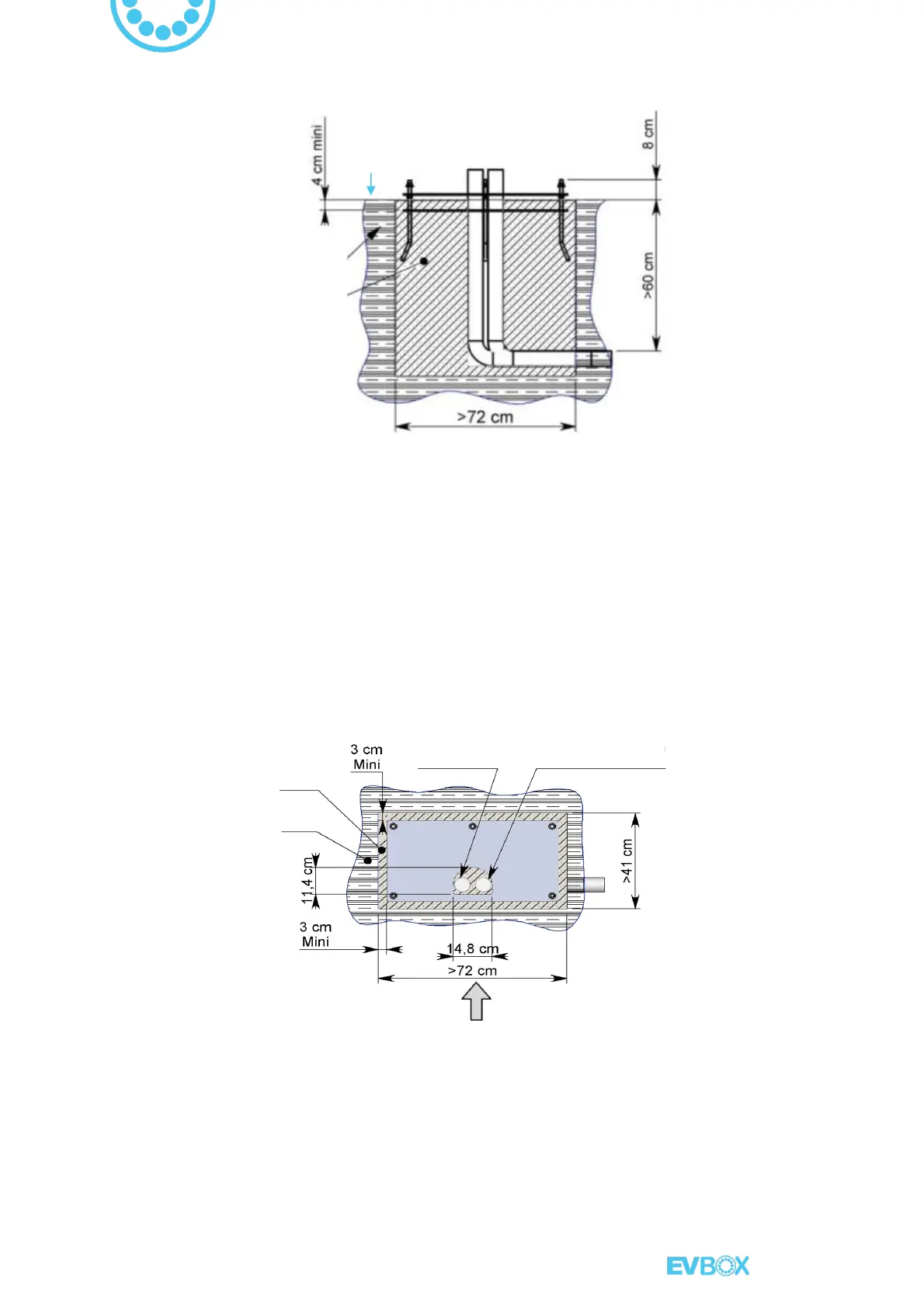

1. Leave the upper sheet metal 0,5 cm over the concrete (outside), to leave the bottom nuts
accessible.
2. Before setting the charger the upper sheet metal has to be levelled.
3. The lower sheet metal must be inside the concrete at least 4 cm.
Step 3:
- Set up and install electric cables as stated in annex 2. Please allocate sufficient cable length to
include an excess of minimum 1000 mm over the ground level for proper connection to the
equipment.
* If the charger is to be used independently, it is not necessary to use two electrical conduits.
Step 4:
Power line to
Satellite units
