7. APPENDIX 2:
CABLES PASSAGE

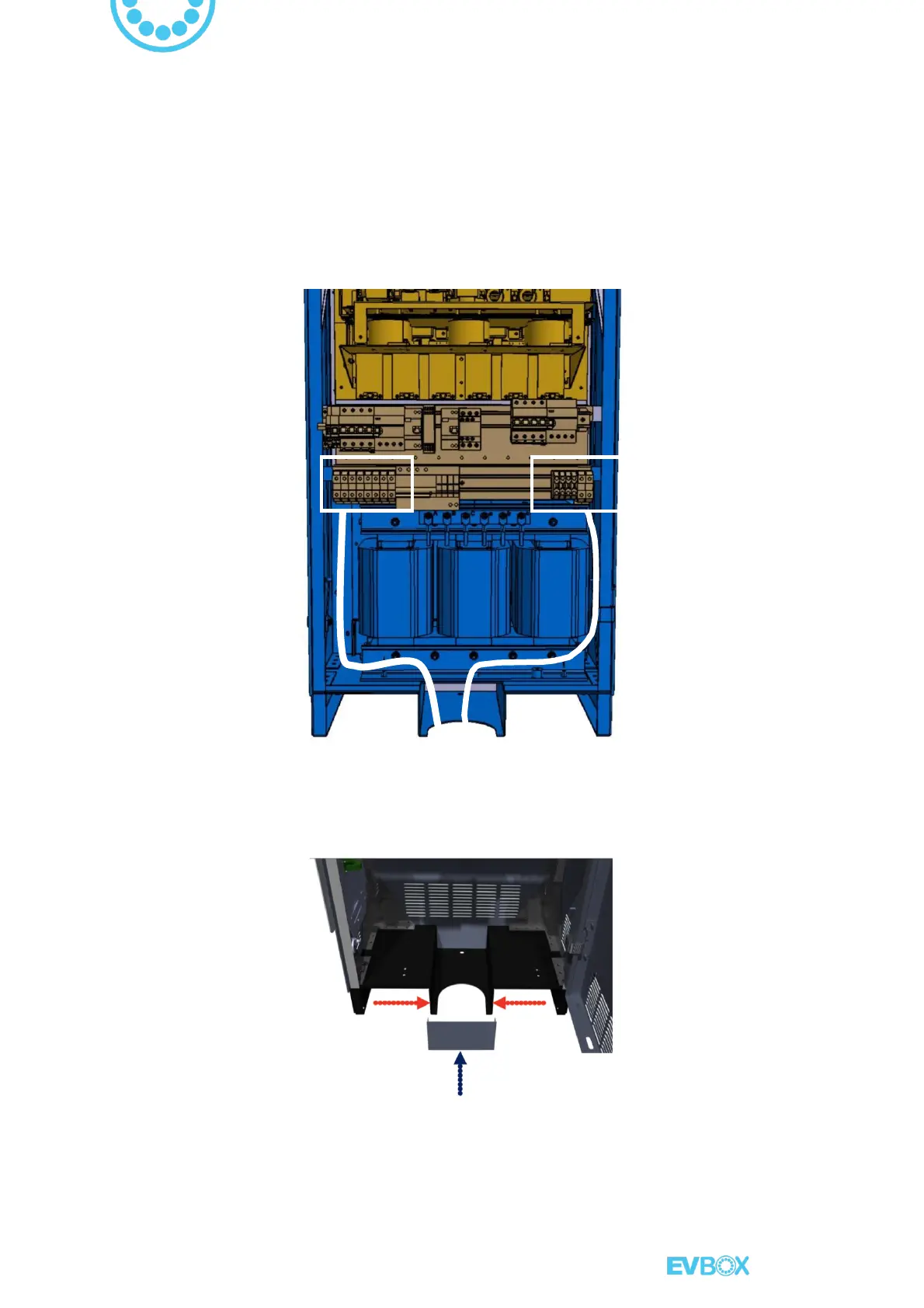

- Input of the power supply cables without auxiliary power cabinet (APC)
Power supply cables
The cables are to be pressed along the walls to reach the electrical terminal blocks located on the left
and on the right side.
Connection grid
terminal block + earth
(X1)
Connection to
satellite units *
Once the electrical cables are connected, install the front bezel
with two screws, shown by the red arrows, and put expanding
foam in the conduit in order to avoid the entrance of any animal
