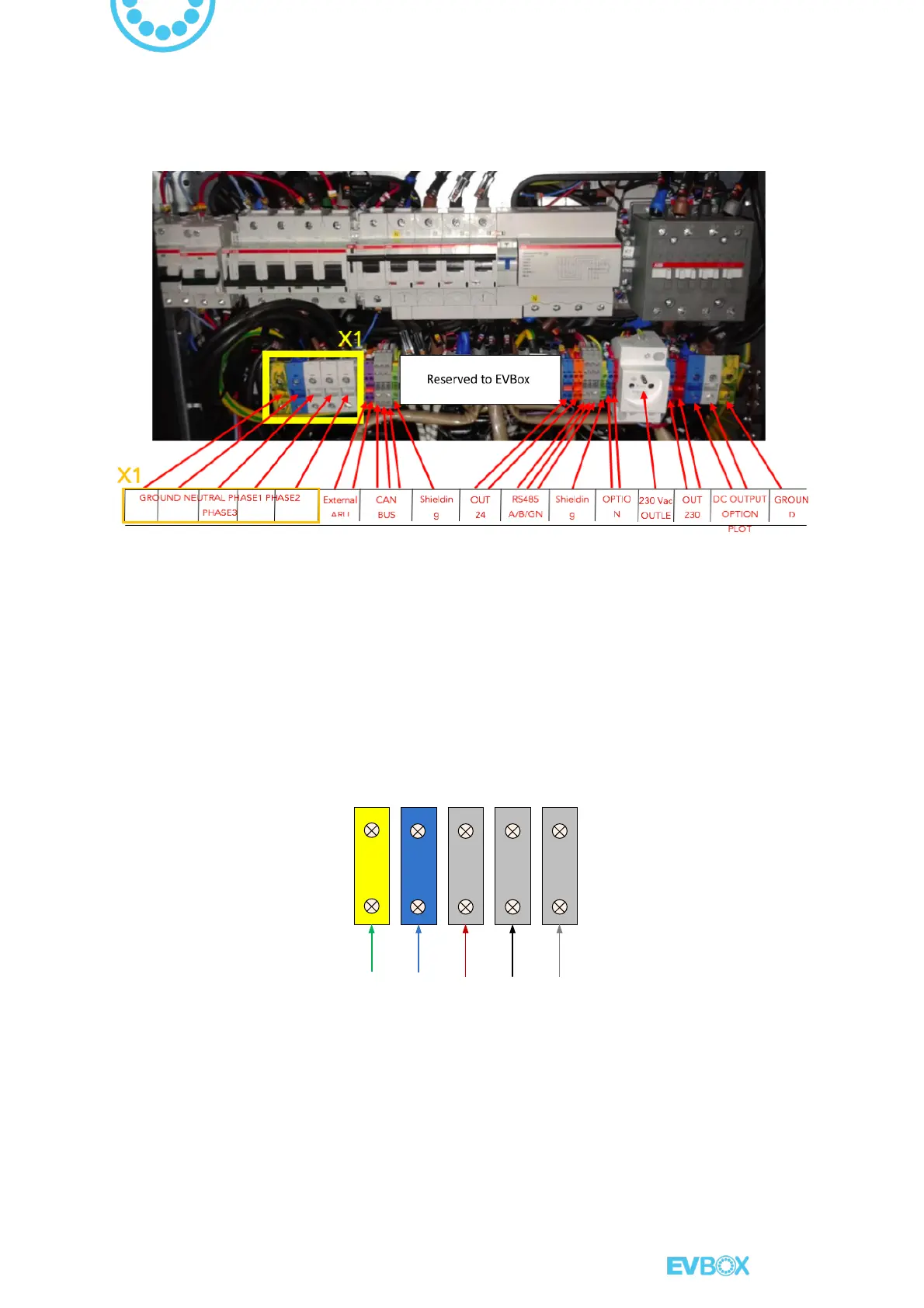

Photo of terminal X1:
X1 Terminal (Connection grid terminal block ):
¾ Neutral : Neutral power input
¾ Phase 1 : Phase 1 power input
¾ Phase 2: Phase 2 power input
¾ Phase 3 : Phase 3 power input
¾ Ground : Input Power Cable Ground
Terre
Neutre
Phase 1 Phase 2
Phase3
RESEAU ELECTRIQUE TETRAPOLAIRE 400Vac
