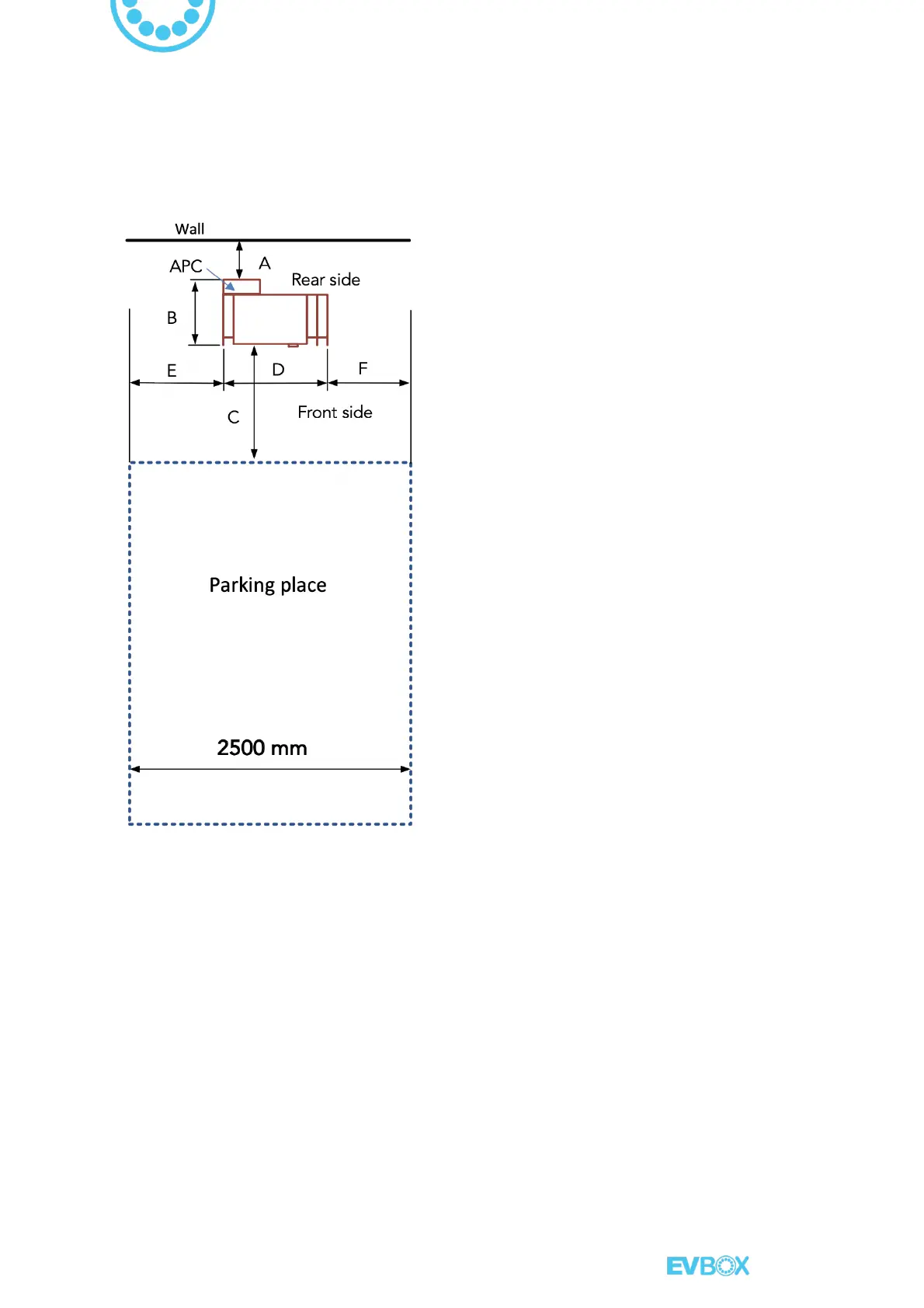

3.2 Charger positioning (with Auxiliary power cabinet – APC)
As there are some limitations (including cables length), we recommend the following installation for
the charger in relation to a parking space of 2500 mm width:
A: Distance to the wall
à Minimum: 600 mm to do not compromise
the access to the rear socket type E or F as
well as to the Auxiliary power cabinet (APC).
B: Depth of the charger
à 648 mm
C: Distance between charger and parking
place as marked on the ground
à Minimum: 500 mm to allow free access to
emergency stop and the HMI
à Maximum: 800 mm limited by the length of
the vehicle charging cables
D: Width of the charger
à 920 mm
E & F: Distance to the parking place
à Minimum: 550 mm not to hinder the user
when handling the connector.
à Maximum: 930 mm, limited by the length of
the vehicle charging cables.
(A + B + C) minimum = 1748 mm
Notes:
- It is recommended, so as to avoid
overheating, install it under a shelter or
shaded-area in order to protect from direct
sunlight.
- If installed indoors, the room should be
ventilated by a permanent air exchange
system. The ventilation rate of the charger
can reach 1200 m
3
/h.
