Step 1:

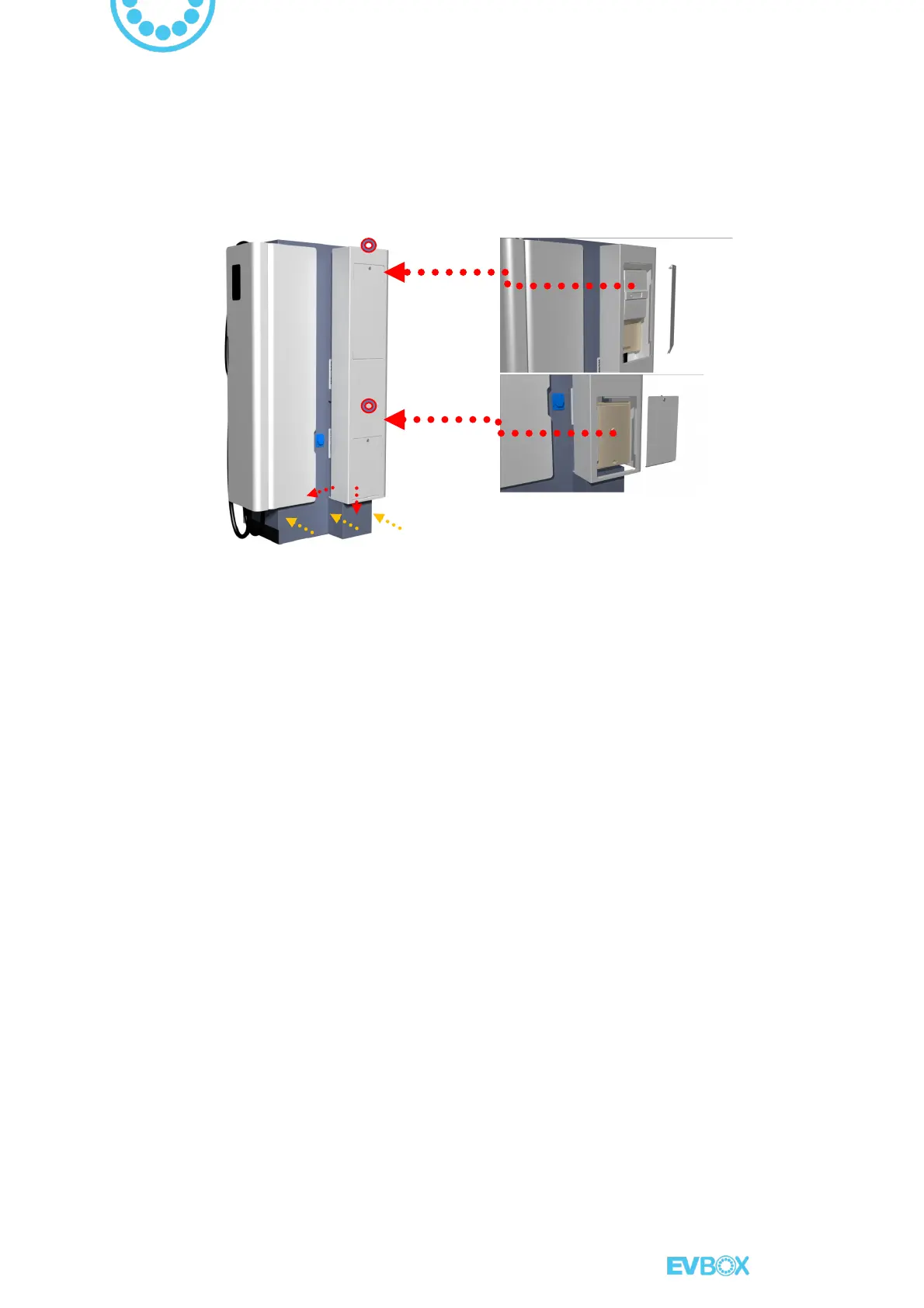

- Remove the rear input cable cover from back of the charger as shown with two red arrows in the
picture, the rear plate by unscrewing the three nuts from below as shown with orange arrows and
the Meter and Input fuses lids.
Meter
Input
Fuses
Triangle lock
Triangle lock
Rear input
cable cover
