EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124
page 11 of 46
Installation is on a DIN rail 35.0 x 7.5mm (1.377 x 0.295 in) or 35.0 x 15.0mm (1.377 x 0.590 in), in a control panel.

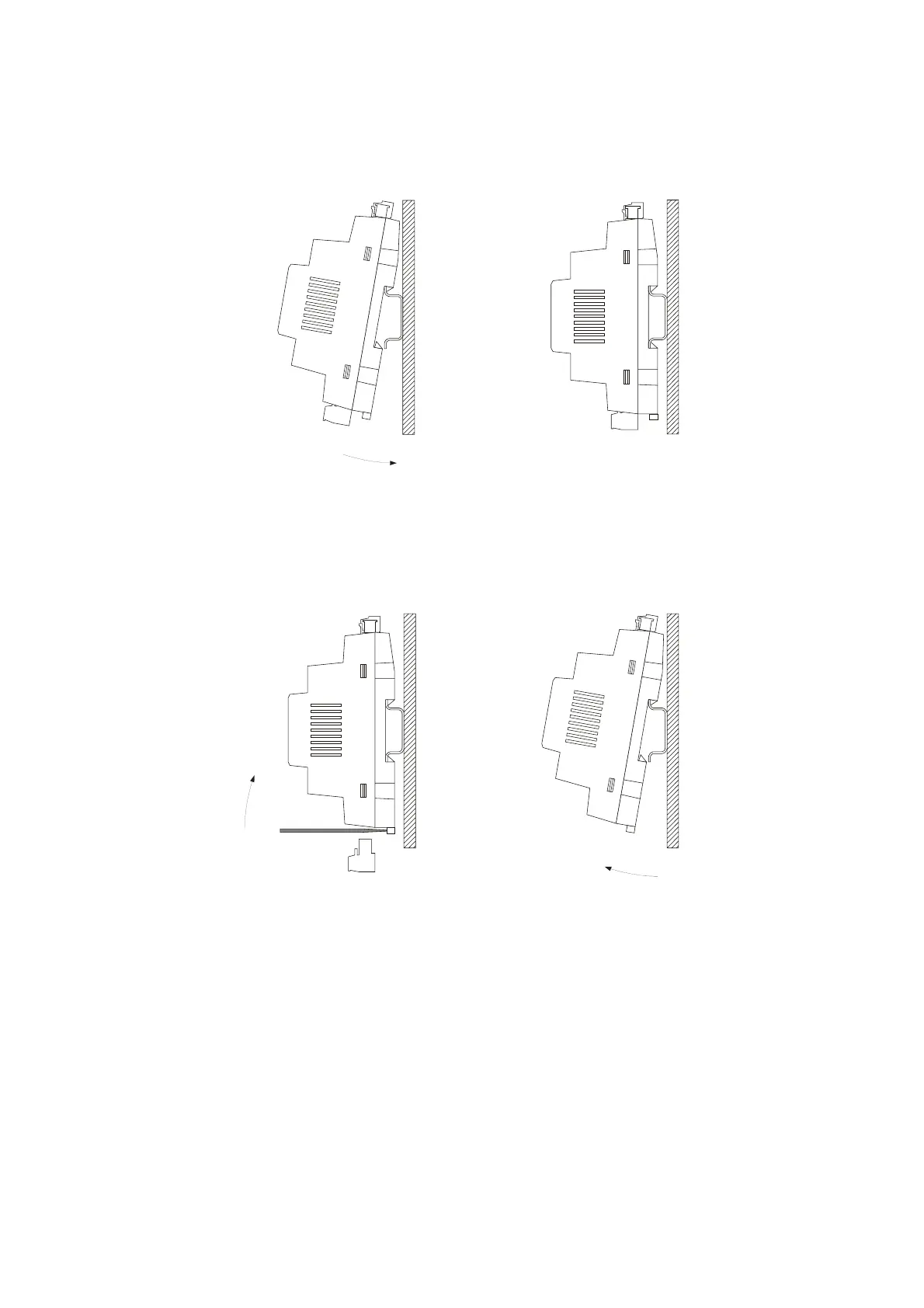

The pictures below show how to install the EVD CHIL.
1 2
To remove the EVD CHIL, first remove any plug-in screw terminal blocks
fitted in the lower part, then, using a screwdriver, loosen the
DIN rail clip, as shown in the pictures below.
3 4
To re-install the EVD CHIL first press the DIN rail clip fully in.
