EVCO S.p.A. EV3 CHIL & EVD CHIL | Installer manual ver. 1.2 | Code 1443DCHILE124
page 21 of 46

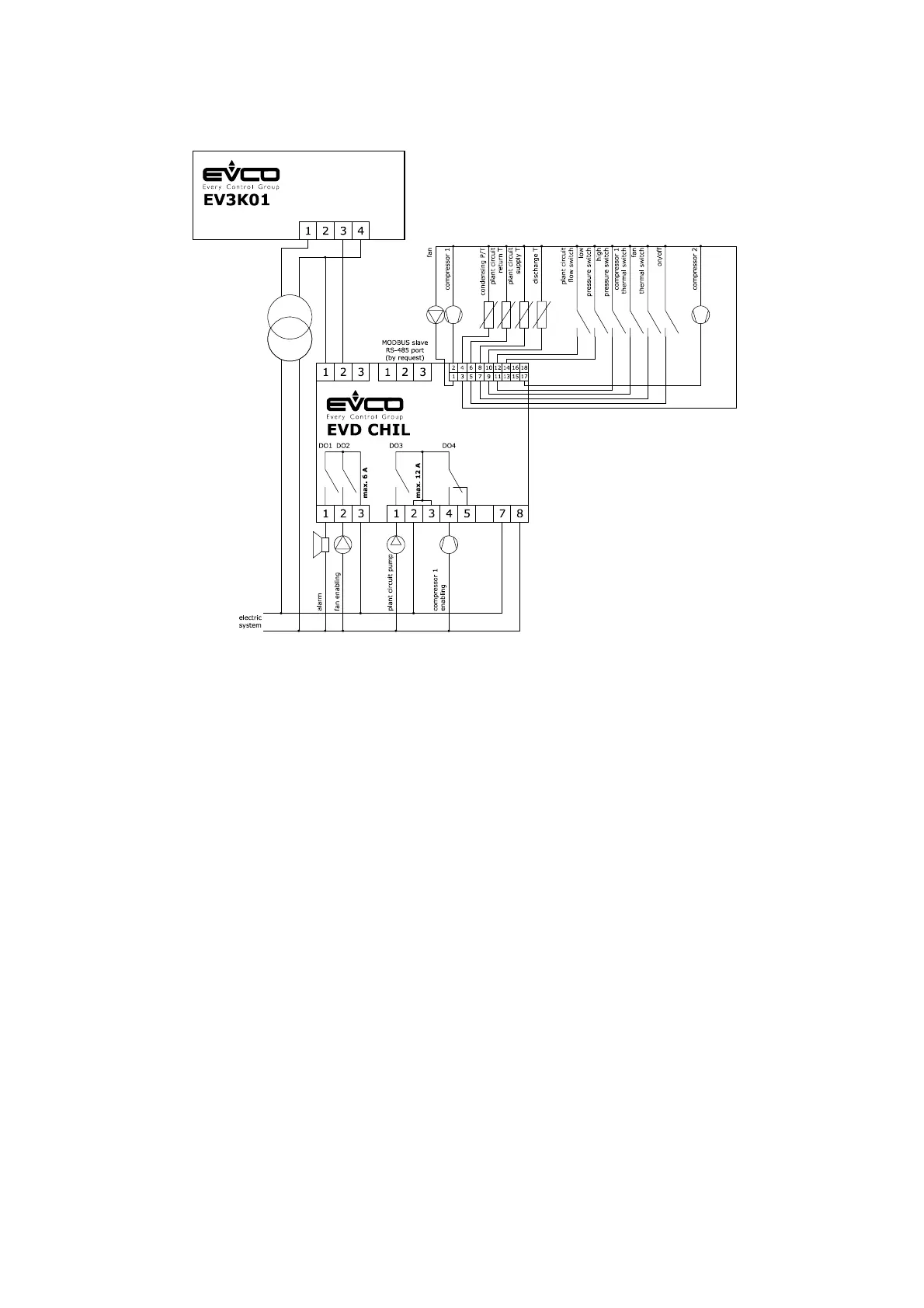

4.4.2 Example of EVD CHIL electrical connection
The picture below shows an example of the EVD CHIL electrical connection.
