3 MEASUREMENTS AND INSTALLATION
3.1 Measurements and installation of EV3 CHIL

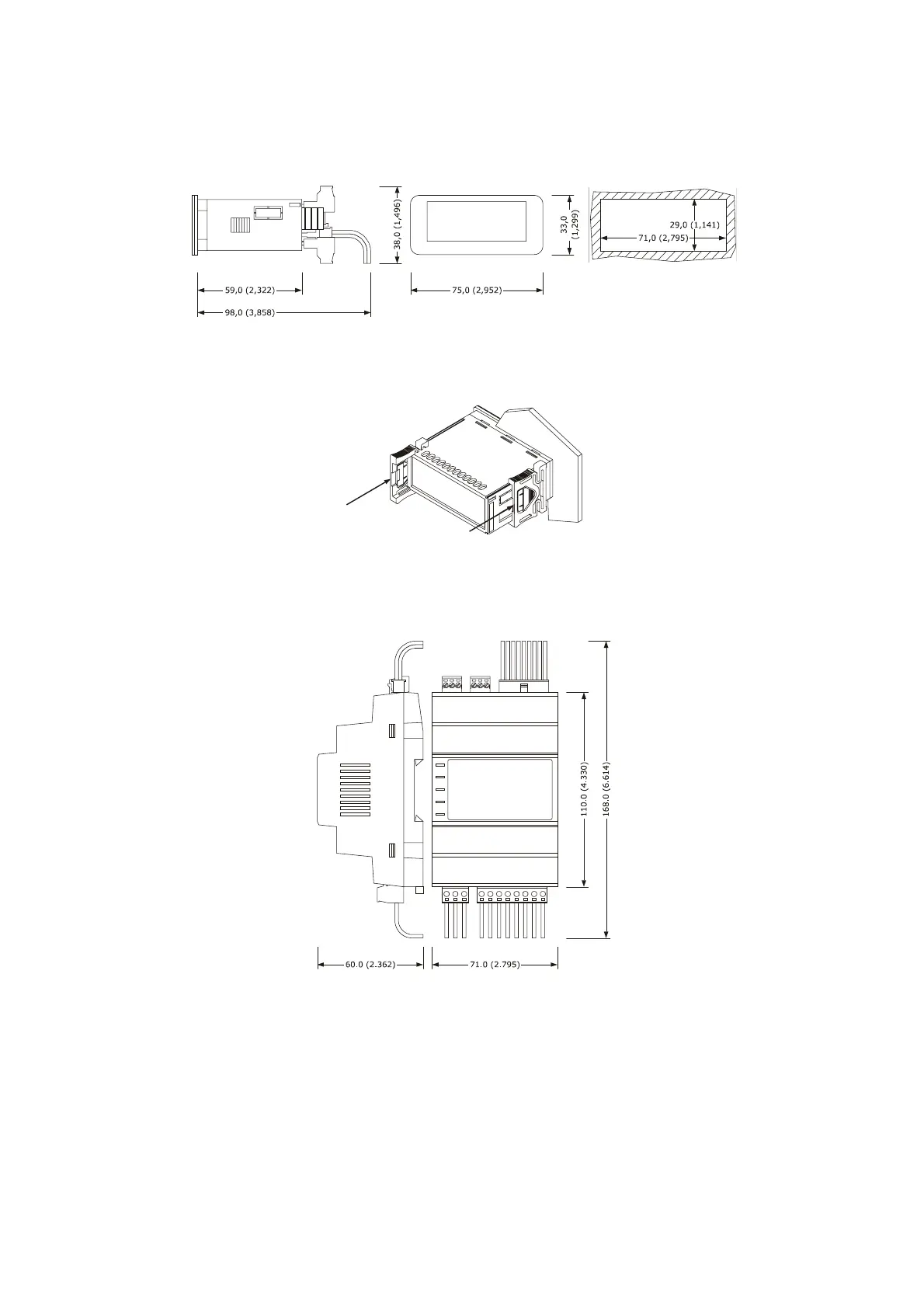

The pictures below show the measurements of EV3 CHIL; measurements are expressed in mm (inches).
To be installed on a panel with snap-in brackets provided.
The thickness of the panel on which EV3 CHIL is to be installed must be between 0.8 and 2.0mm (0.031 and 0.078 in).
3.2 Measurements and installation of EVD CHIL
The picture below shows the measurements of EVD CHIL (4 DIN modules); measurements are expressed in mm (inches).
