EVCO S.p.A. EVJ800 | Installer manual ver. 1.0 | Code 144J800E104
page 6 of 48
2 INSTALLATION
2.1 Format features
The controller is available in a compact version with a plastic container and holding flaps.
The user interface has a 2.8 inch colour graphic display, 6 capacitive keys and an IP65 front.

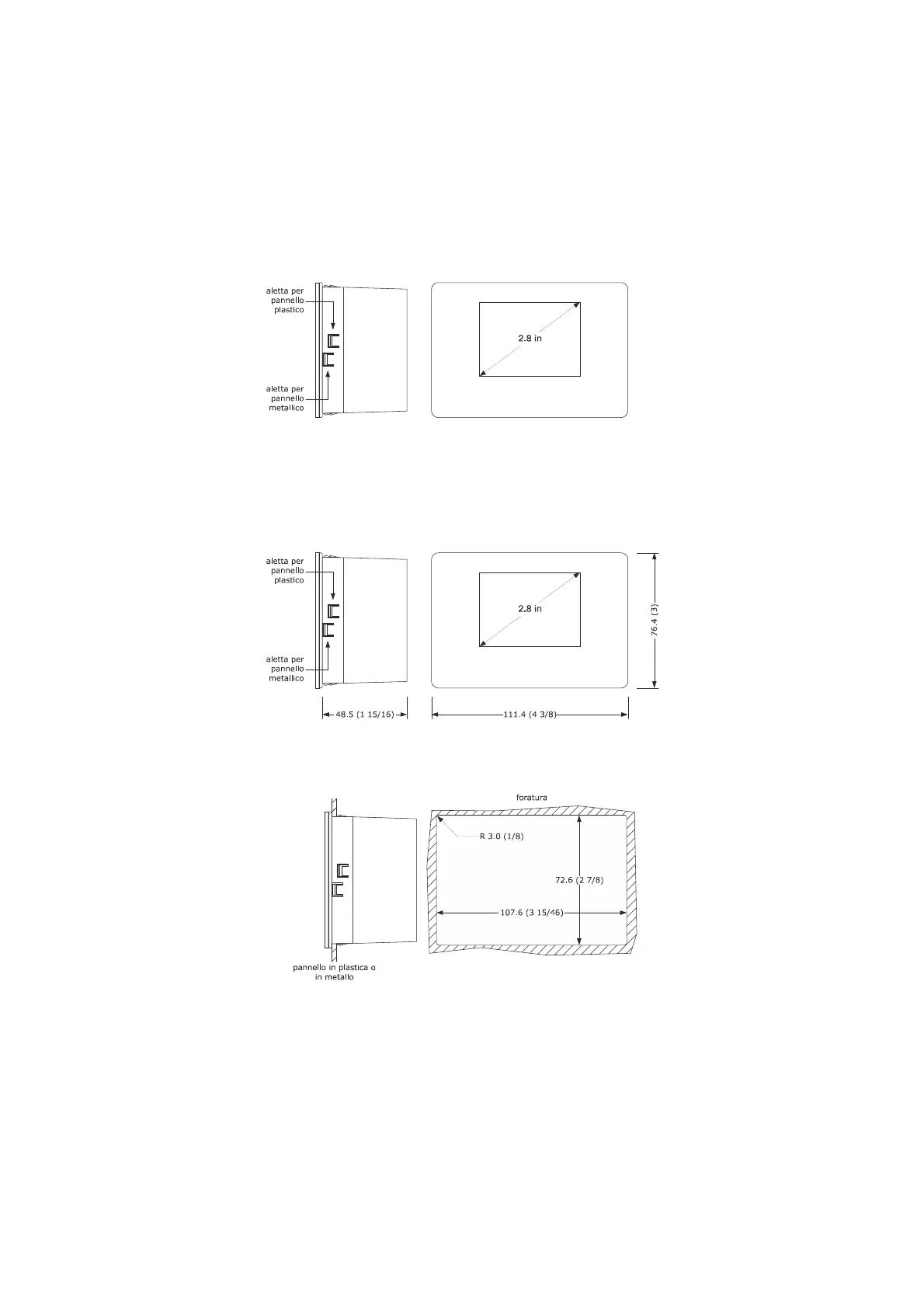

2.2 Measurements and installation
Measurements
Panel, from the front
N.B.
The thickness of a metal panel must be between 0.8 and 1.5 mm (1/32 and 1/16 in), while that for a plastic panel
must be between 0.8 and 3.4 mm (1/32 and 1/8 in).
