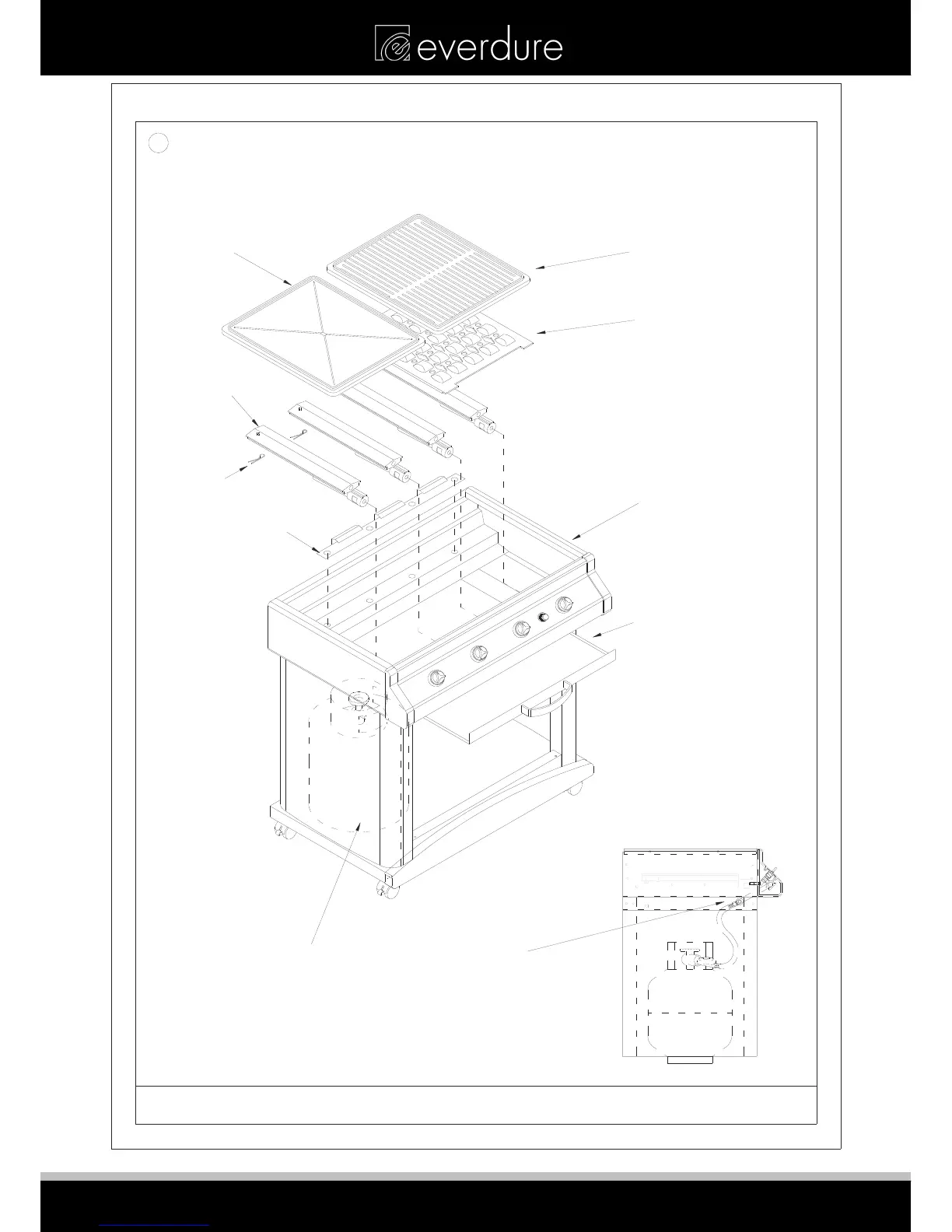

FLINDERS, NORFOLK, DAINTREE & KIMBERLEY BARBECUE ASSEMBLY
N
NOTE: THE HOOD, SERVERIES AND DOORS ARE NOT SHOWN FOR CLARITY.
HOT PLATE
GRILL PLATE
BURNERS
'R' CLIPS
CROSS-OVER TUBES
VAPOURISER (RAISED
PORTIONS FACING UP)
BARBECUE CHASSIS
FAT TRAY
GAS CYLINDER AND HOSE.
CYLINDER IS PLACED IN
LOCATING HOLE IN TROLLEY
BASE (NOT APPLICABLE FOR
NG MODELS).
FOR PROPANE GAS:
GAS HOSE IS CONNECTED TO
THE MANIFOLD INSIDE THE
TROLLEY CABINET AS SHOWN.
