2. PLACE THE HOOD ASSEMBLY (PART 28) ON TOP OF THE BARBECUE SO THAT THE TABS IN THE REAR HOOD
SIDES LINE UP WITH THE HOLES ALONG THE INNER EDGES OF THE BARBECUE. TAKE CARE NOT TO DAMAGE
3. PLACE 1 x M5 SCREW THROUGH THE HOLE OF A REAR HOOD SIDE TAB, FIX A FIBRE WASHER, AND LOOSELY FIT

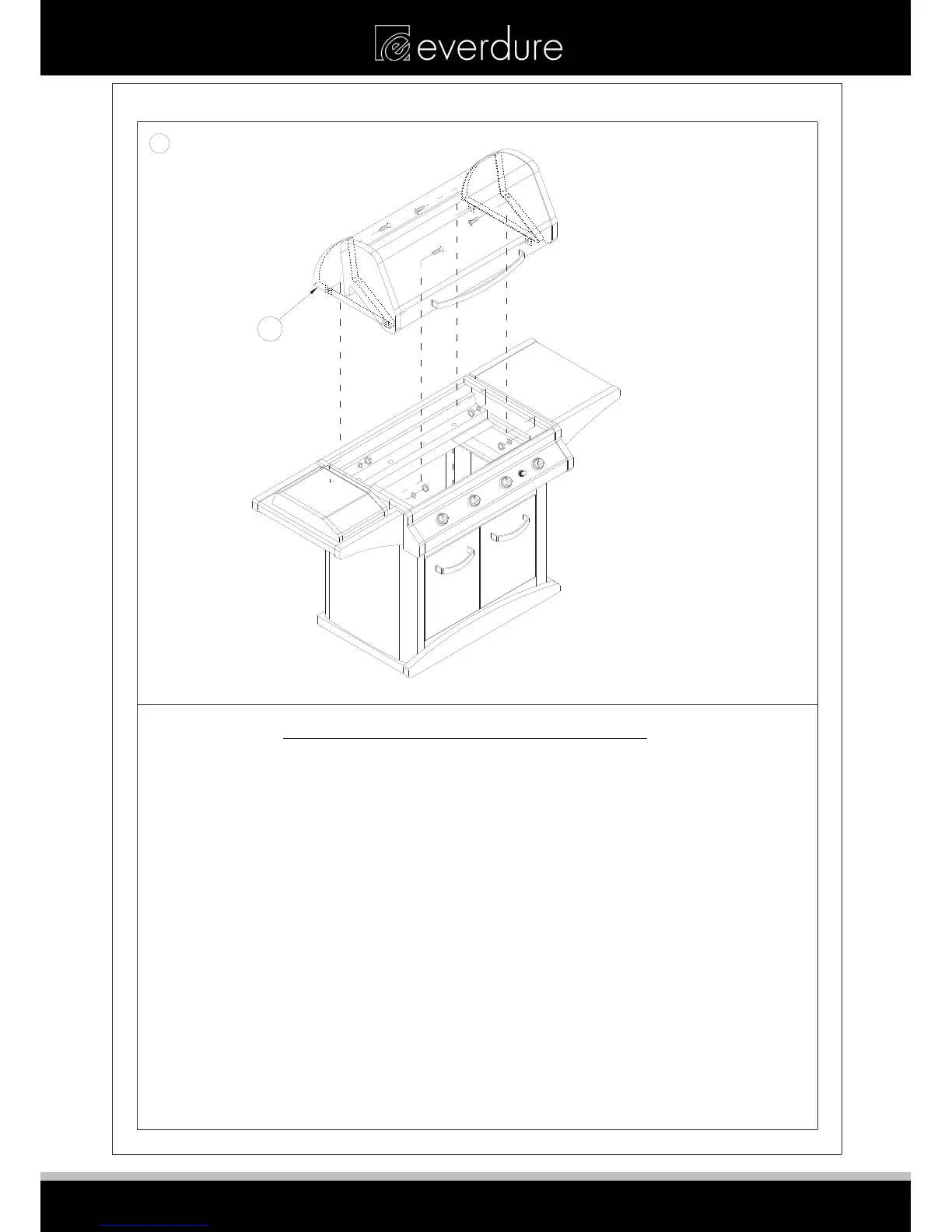

ATTACHING THE HOOD TO THE BARBECUE
1. THE HOOD CARTON CONTAINS IT'S OWN HARDWARE PACK, CONSISTING OF FOUR M5 NUTS (PART 30),
FOUR M5 x 20 SCREWS (PART 29) AND FOUR FIBRE WASHERS (PART 31).
FLINDERS, NORFOLK, DAINTREE & KIMBERLEY HOOD ASSEMBLY
M
EITHER COMPONENT.
A M5 NUT. REPEAT FOR ALL FOUR HOLES, THEN FULLY TIGHTEN ALL THE NUTS.
4. CHECK THAT THE HOOD OPENS AND CLOSES CORRECTLY BEFORE USE.
28
29
29
30
31
5. NOTE: THE HOOD PANEL OF SOME MODELS WILL HAVE A GLASS WINDOW. TAKE CARE NOT TO DAMAGE.
26
