Everdure FUSION - Barbeque and Pedestal Assembly

12
Assembly, Operation & Maintenance Instructions
BARBEQUE AND PEDESTAL ASSEMBLY
The barbeque and pedestal (if supplied) must be assembled before use. Only a medium size Philips screwdriver is needed.
Open the carton from the top and remove the parts. Remove all packaging (especially check inside the barbeque and under the charcoal grid) and place parts on a clean surface. Check for any
damage or missing parts (if found, contact your service department).

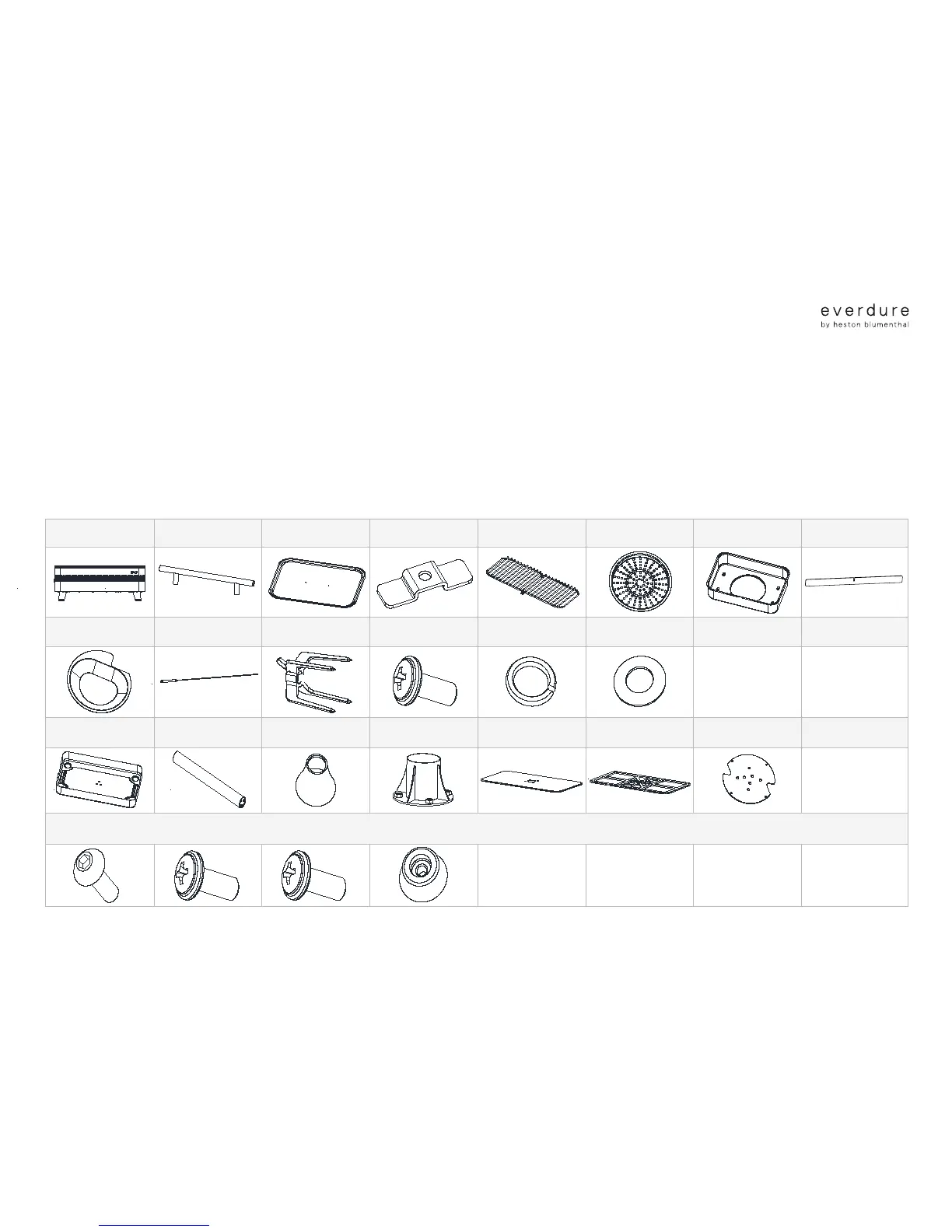

INCLUDED PARTS FUSION
TM
01 / Barbeque Chassis
Assembly x 1Pc
09 / Element Heat
Shield x 1Pc
02 / Lid Handle
x 1Pc
10 / Rotisserie Rod
x 1Pc
03 / Lid
x 1Pc
11 / Cliplock Fork™
x 2Pcs
04 / Lid Hanging
Bracket x 2Pcs
F01 / M3 x0.4in (10mm)
Screw x 2Pcs
05 / Open Gril
x 1Pc
F02 / M3 Spring Washer
x 2Pcs
06 / Charcoal Grid
x 1Pc
F03 / M3 Washer
x 2Pcs
07 / Charcoal Chamber
x 1Pc
08 / Element Support
x 2Pcs
S01 / Pedestal Top
x 1Pc
S02 / Pedestal Pole
x 1Pc
S03 / Pole Support
Cover x 1Pc
S04 / Pole Support
x 1Pc
S05 / Pedestal Base
Cover x 1Pc
S06 / Pedestal Base
x 1Pc
S07 / Pedestal Support
Bracket x 1Pc
F04 / M8 x 1in (25mm)
Bolt x 10Pcs
F05 / M3 x 0.4in (10mm)
Screw x 6Pcs
F06 / M4 x 0.3in (8mm)
Screw x 4Pcs
F07 / Rubber Foot
x 6Pcs
