Everdure FUSION - Parts List: Barbeque Assembly

18
Assembly, Operation & Maintenance Instructions

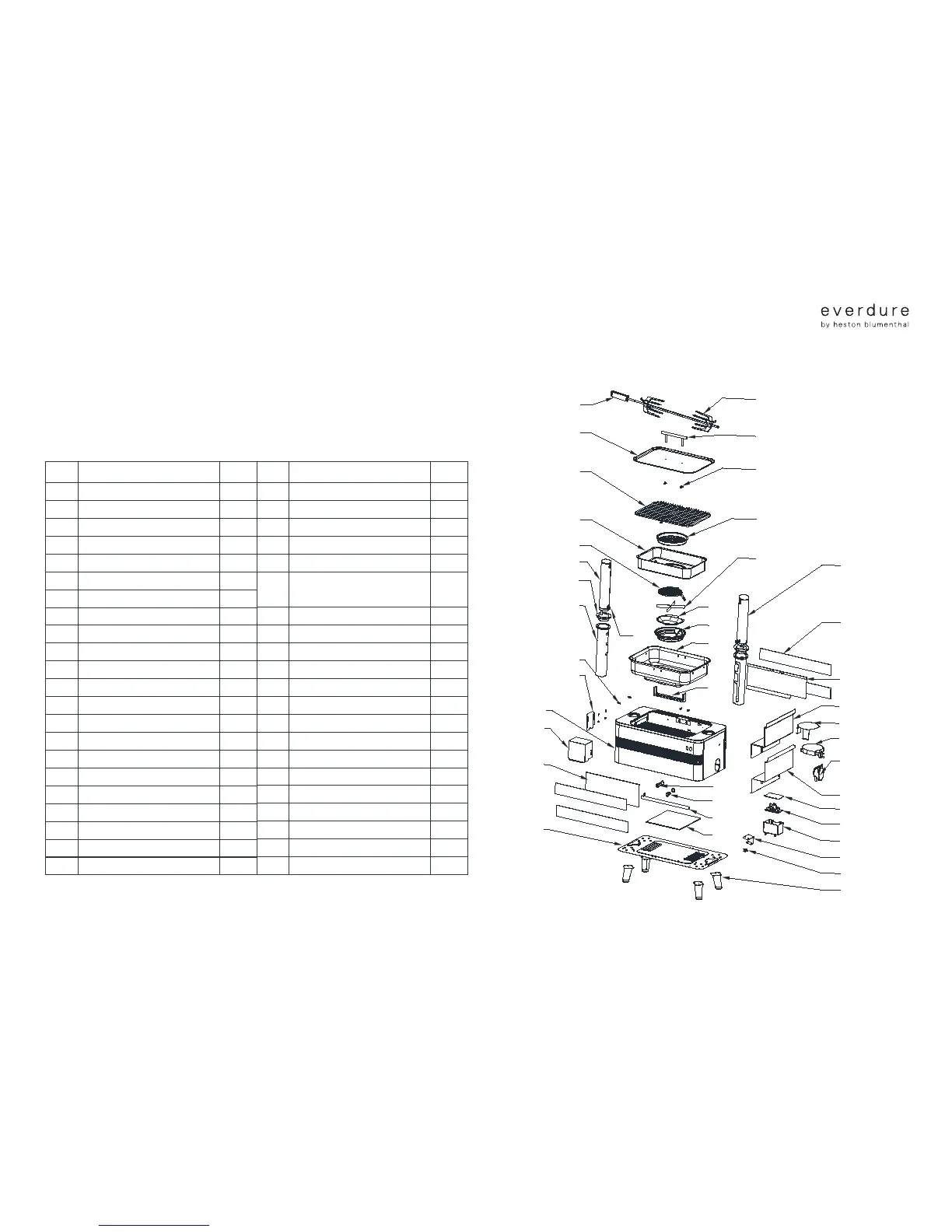

PARTS LIST: HBCE1BUS & HBCE1BSUS
PART NAME QTY
1 Cliplock Forks™ Assembly 2
2 Rotisserie Rod Assembly 1
3 Lid Handle 1
4 Lid 1
5 Lid Hanging Bracket 2
6 Open Grill 1
7 Charcoal Grid 1
8 Charcoal Chamber 1
9 Element 1
10 Element Support 2
11 Element Heat Shield 1
12 Element Bowl 1
13 Inner Chassis 1
14 Element Bowl Bracket 1
15 Inner Pole Assembly Left 1
16 Pole Flange 2
17 Outer Pole Assembly 2
18 Inner Pole Assembly Right 1
19 Inner Pole Positioning Pin 2
20 Rear Insulation 4
21 Rear Heat Shield 1
22 Grill Support Pin 8
Note: List does not include fasteners.
01
03
05
07
10
14
11
12
13
02
04
06
08
09
15
16
17
18
19
20
21
27
28
29
30
31
22
23
24
32
33
34
40
41
42
25
26
35
36
37
38
26
PART NAME QTY
23 Storage Door 1
24 Barbeque Chassis 1
25 Storage Box 1
26 Front Heat Shield 1
27 Side Insulation 1
28 Retractable Power Cord
Bracket
1
29 Retractable Power Cord 1
30 Power Plug Recess 1
31 Side Heat Shield 1
32 PCB Cover 1
33 PCB 1
34 PCB Mounting 1
35 Element Switch 1
36 Rotisserie Motor Switch 1
37 Rod Guide Tube Assembly 1
38 Bottom Insulation 1
39 Bottom Plate 1
40 Thermostat Mount 1
41 Thermostat 1
42 Leg Assembly 4
39
