2.4 Components
Please find here listed the main components technical characteristics.

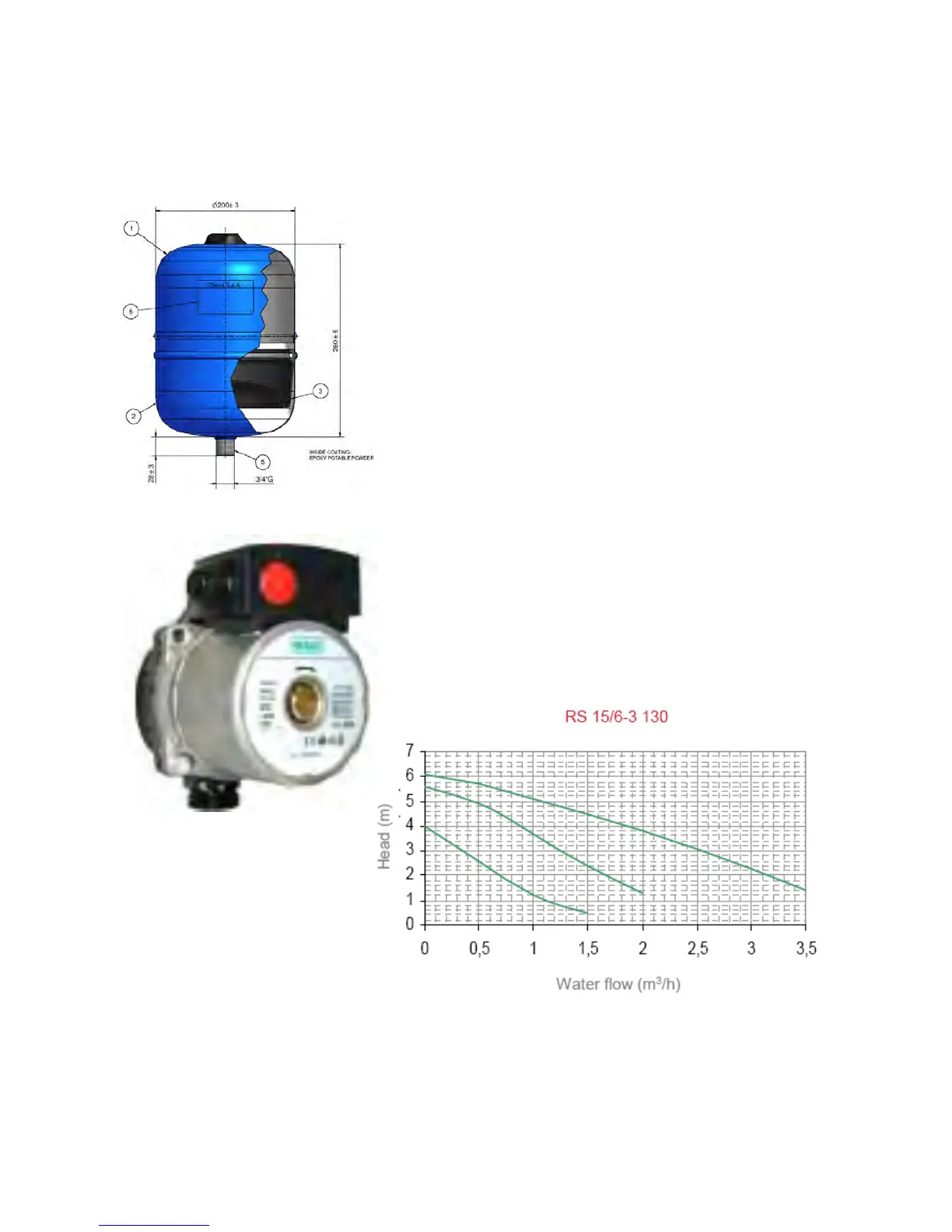

2.4.1 Expansion vessel
1. Upper head
2. Downer head
3. Butyl membrane
4. Pre-charge valve
5. Threaded nozzle
6. Self-adhesive label
Max operating pressure: 10 bar
Working temperature: -10 / +99 °C
Factory pre-charge: 3 +/- 20% bar
Nominal volume: 8 litres
Colour: blue
2.4.2 Pump
Model: NY:/63
n: 1850 1/min
P: 62 W
I: 0,30 A
Capacitor: 3,5 mF – 400 VDB
